EUROCOM sky dlx7 User Manual page 157

18. Go to any of the disks listed under Select Disks: and select a disk name and
press <Enter>.
19. Move the cursor down (use the arrow keys) onto to X (o select the disk required
and press <Enter>.
20. You should select two identical hard disks/SSDs to form your RAID volume.
21. If you have selected RAID0 (Stripe) then you can adjust the "Strip Size" to your
requirements (it is recommended that you set the "Strip Size" to 128KB).
22. Go to Create Volume and press <Enter>.
Setting Up SATA RAID or AHCI Mode 6 - 13
Modules

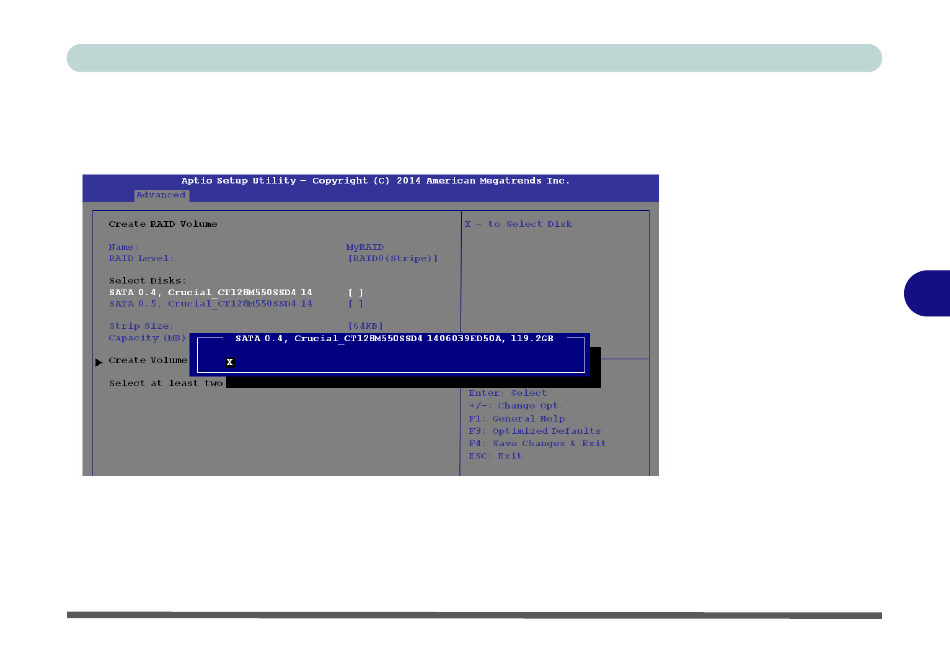

Figure 6 - 7
Select Disks
(Advanced > Intel(R)
Rapid Storage
Technology)
6
