LCD Panel Open - Model B

3
5
7
10
3
2
1
4
5
7
6
8
9

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
(e.g. WLAN, Bluetooth or 3G/
4G) aboard aircraft is usually
prohibited. Make sure any
wireless modules are OFF (i.e.
the system is in Airplane
Mode) if you are using the
computer aboard aircraft.
Use Fn + F11 Airplane Mode
key combination to toggle Air-
plane Mode On/Off, and check
the LED indicator for the power
status.
LCD Panel Open - Model B 1 - 7
Quick Start Guide
Figure 1 - 3

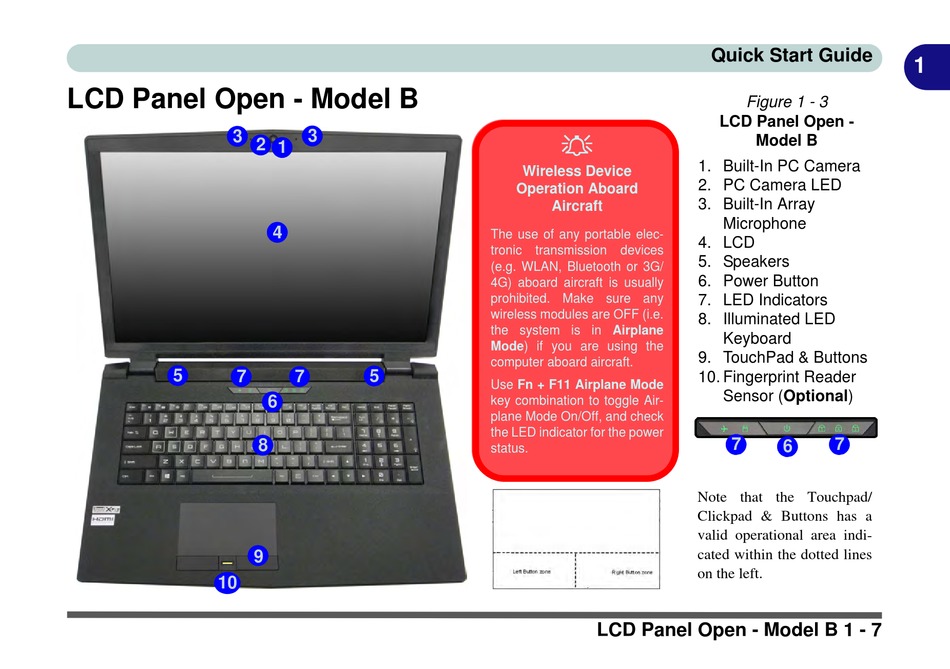

LCD Panel Open -
Model B
1. Built-In PC Camera
2. PC Camera LED
3. Built-In Array
Microphone
4. LCD
5. Speakers
6. Power Button
7. LED Indicators
8. Illuminated LED
Keyboard
9. TouchPad & Buttons
10. Fingerprint Reader
Sensor (Optional)
7 7
6
Note that the Touchpad/
Clickpad & Buttons has a
valid operational area indi-
cated within the dotted lines
on the left.
1
