Interface (Ports & Jacks)

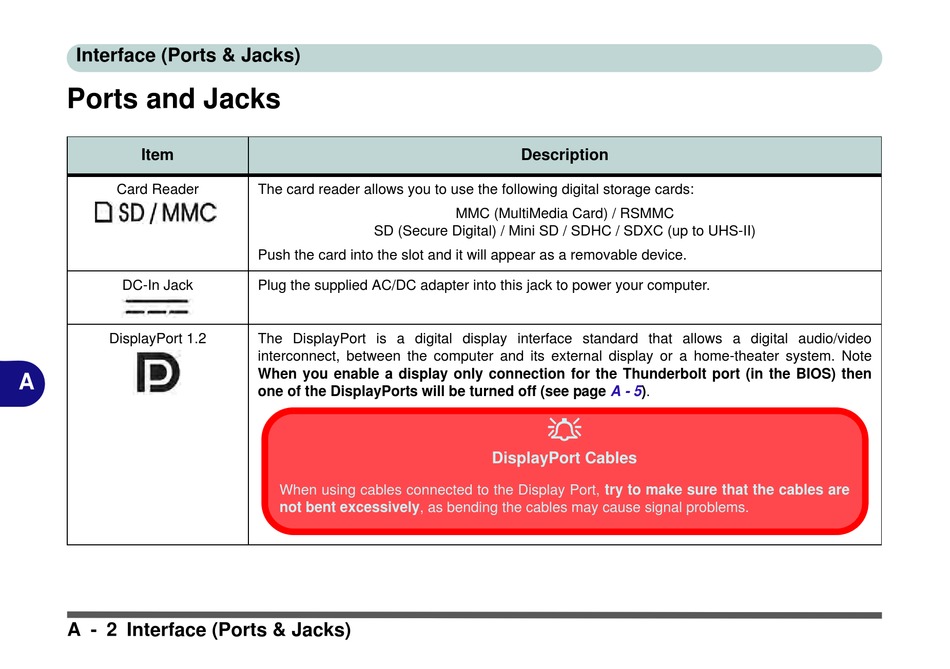

Ports and Jacks
Item
Card Reader
DC-In Jack
DisplayPort 1.2
A
A - 2 Interface (Ports & Jacks)
The card reader allows you to use the following digital storage cards:
SD (Secure Digital) / Mini SD / SDHC / SDXC (up to UHS-II)
Push the card into the slot and it will appear as a removable device.
Plug the supplied AC/DC adapter into this jack to power your computer.
The DisplayPort is a digital display interface standard that allows a digital audio/video
interconnect, between the computer and its external display or a home-theater system. Note
When you enable a display only connection for the Thunderbolt port (in the BIOS) then
one of the DisplayPorts will be turned off (see page
When using cables connected to the Display Port, try to make sure that the cables are
not bent excessively, as bending the cables may cause signal problems.
Description
MMC (MultiMedia Card) / RSMMC
A -
5).
DisplayPort Cables
