5. Remove the battery from the bay
6. Insert the USIM card
contact side of the card should face upwards) until it clicks fully into position.
7. To eject the card simply press it until it ejects, but do not attempt to eject the card while connected to a 3G/4G
network (however your machine should be powered off when removing the battery in any case).
8. Reinsert the battery

USIM Card Orienta-
tion
Note that the USIM
card's readable side
(with the gold-colored
contacts) should face
upwards as illustrated.

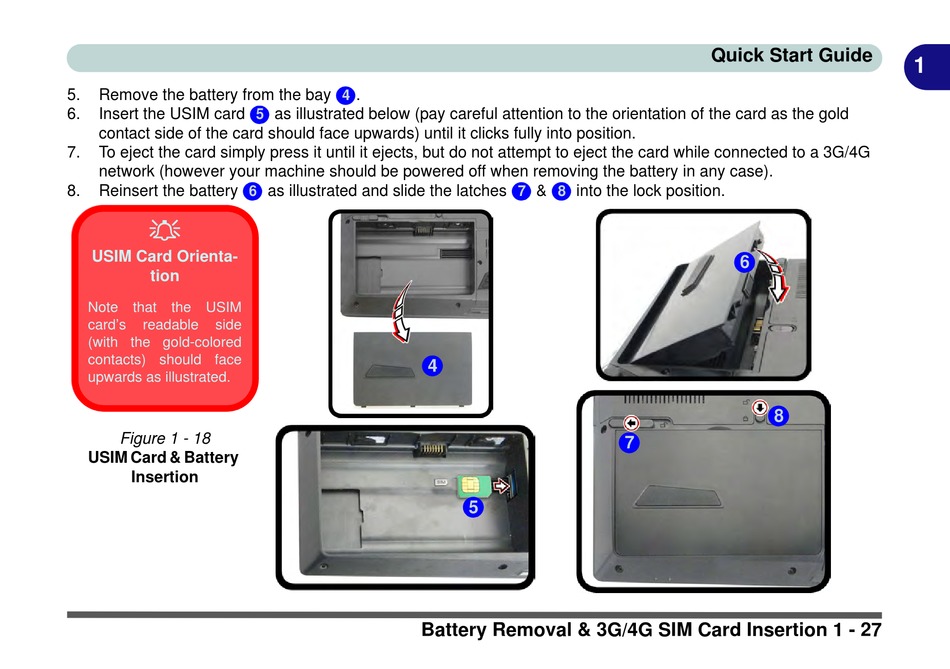

Figure 1 - 18
USIM Card & Battery
Insertion
.
4
as illustrated below (pay careful attention to the orientation of the card as the gold
5
as illustrated and slide the latches
6
4
Battery Removal & 3G/4G SIM Card Insertion 1 - 27
& into the lock position.
7 8
7
5
Quick Start Guide
6
8
