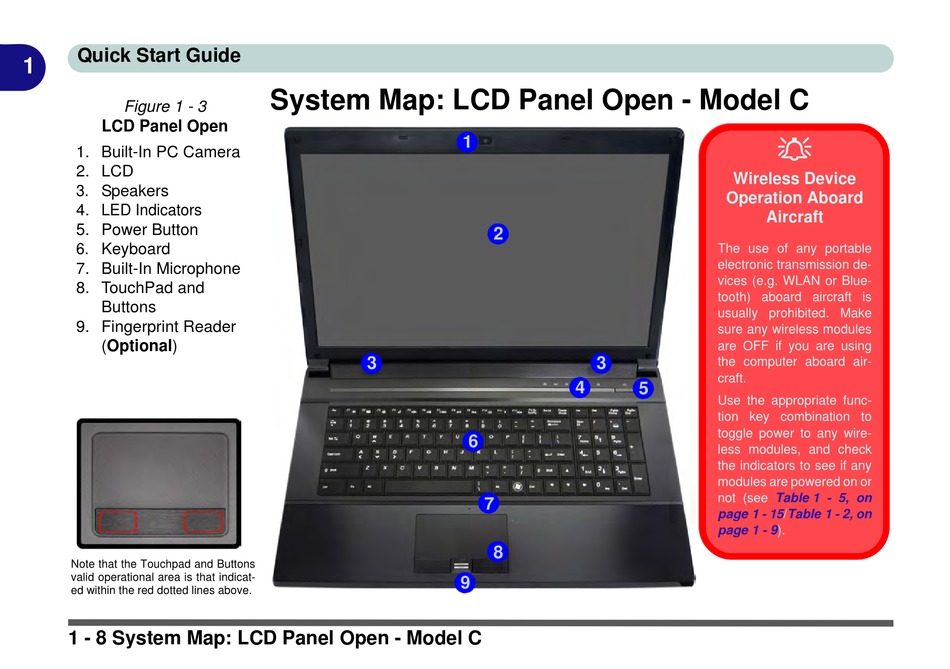

Figure 1 - 3
LCD Panel Open
1. Built-In PC Camera
2. LCD
3. Speakers
4. LED Indicators
5. Power Button
6. Keyboard
7. Built-In Microphone
8. TouchPad and
Buttons
9. Fingerprint Reader
(Optional)
Note that the Touchpad and Buttons
valid operational area is that indicat-
ed within the red dotted lines above.

1 - 8 System Map: LCD Panel Open - Model C

System Map: LCD Panel Open - Model C
3
1
2
3
4
5
6
7
8
9

Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission de-
vices (e.g. WLAN or Blue-
tooth) aboard aircraft is
usually prohibited. Make
sure any wireless modules
are OFF if you are using
the computer aboard air-
craft.
Use the appropriate func-
tion key combination to
toggle power to any wire-
less modules, and check
the indicators to see if any
modules are powered on or
not (see Table 1 - 5, on
page 1 - 15/Table 1 - 2, on
page 1 - 9).
