Sensor Input Ports; Loading Media - Microcom 424M Operator's Manual

Getting Started
LPD Range
Adjustment
LPD Sensor LED
(Flashes red when
label is present)

3.4 Loading Media

The easy- to-release print head makes loading media into the Model 324M/424M printer an
easy process. Follow the instructions below to properly load the media.
1. Feed the media into the paper path, located on the back of the printer, until you feel
resistance.
2. Push and hold the Print Button to feed the media through the printer.
3. Once the media exits the front of the printer, release the Print Button.
The printer is also equipped with an AutoLoad feature. This feature allows the printer to
automatically sense new media as it is inserted into the printer, and automatically feed the
media to provide proper registration of the first label/tag to either the leading edge or a
registration mark. For more details on this feature, please refer to Chapter 5, AutoLoad
Commands.
3-24
LPD Sensor Port Input 1
Input 1 Sensor LED
(Flashes amber when
label is present)

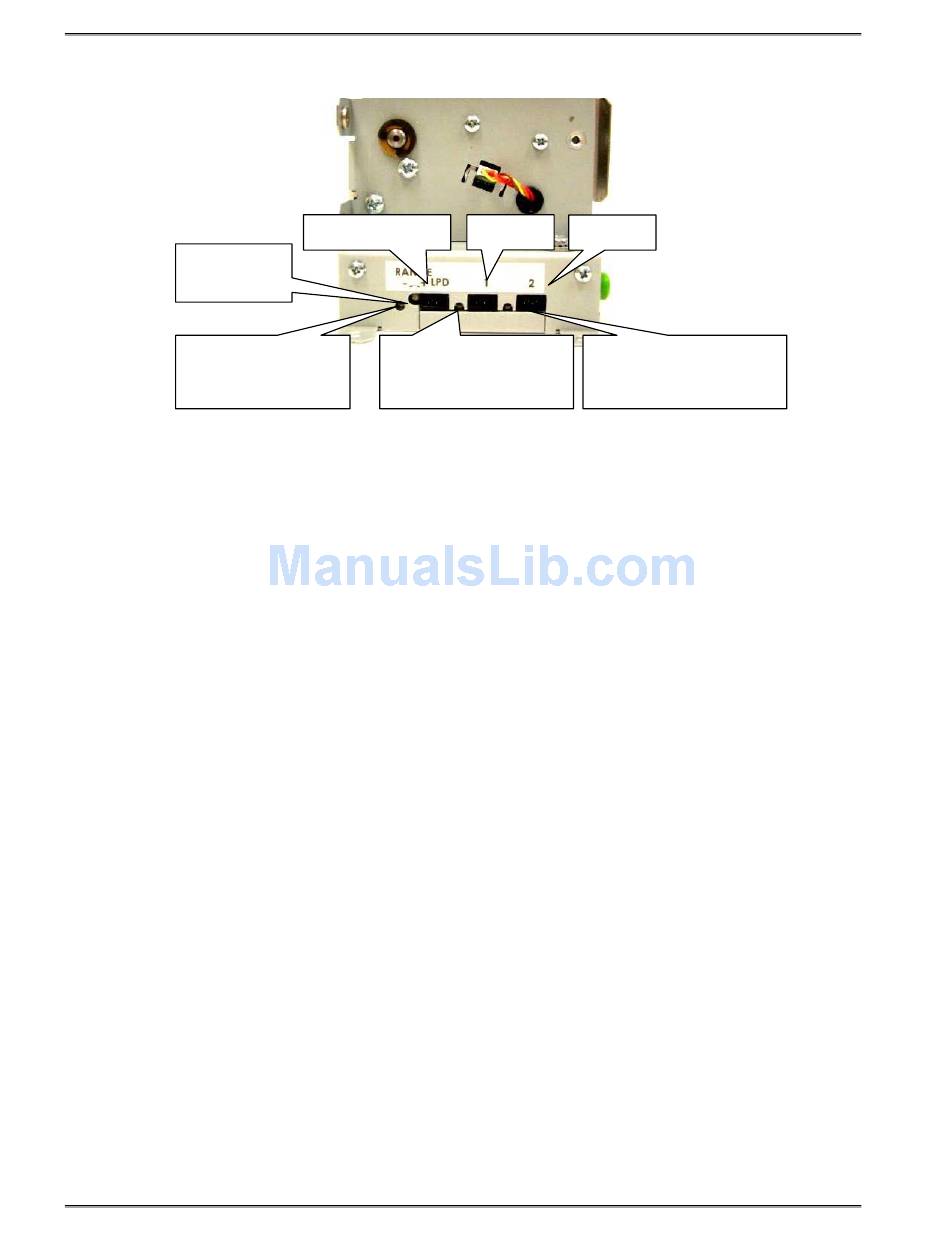

Figure 3-4

Sensor Input Ports

324M/424M Operator's Manual - 880026-0144
Input 2
Input 2 Sensor LED
(Flashes green when
label is present)
