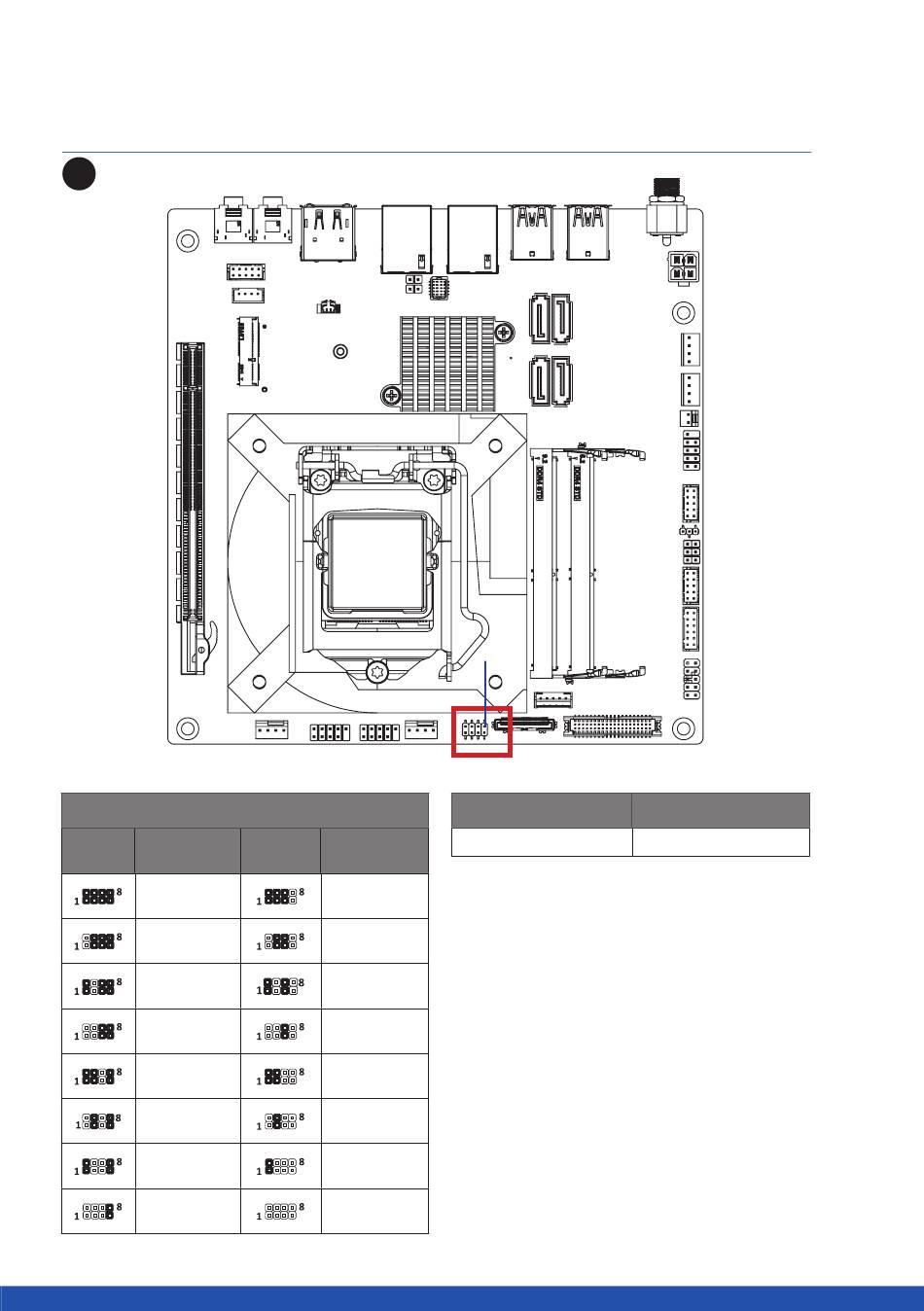

2.2.14 LSW (LVDS Resolution Jumper)
18
LVDS Resolution Jumper
Jumper
Resolution
Setting
800 x 600
18bit
1024 x 768
18bit
1024 x 768
24bit
1024 x 600
18bit
1280 x 800
18bit
1280 x 960
18bit
1280 x 1024
24bit
1366 x 768
18bit
Jumper
Resolution
Setting
1366 x 768
24bit
1440 x 900
24bit
1400 x 1050
24bit
1600 x 900
24bit
1680 x 1050
24bit
1600 x 1200
24bit
1920 x 1080
24bit
1920 x 1200
24bit
Pin 1
Connector PN
222-97-04GBE1
www.gigaipc.com
