Page 1: Thin Mini-Itx Motherboard

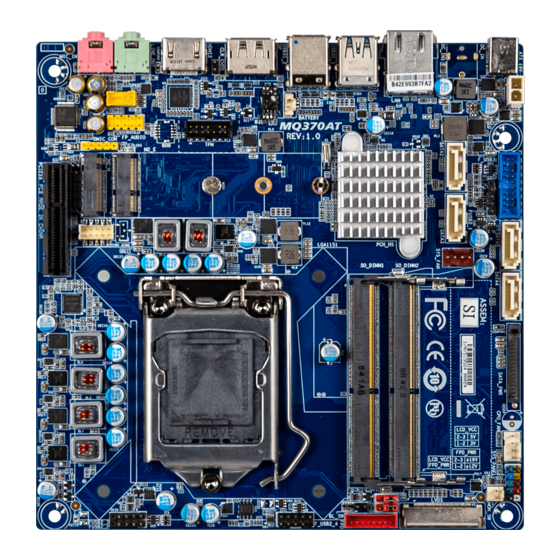

(MQ37AT-SI) Thin Mini-ITX Motherboard User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity iTXL-Q370A MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
BL_SW (Brightness Switch Connector) ...... 24 2.2.5 CLR_CMOS (Clear CMOS Jumper) ......... 25 2.2.6 COM1 (Seriel Port Header) .......... 26 2.2.7 CPU_FAN (CPU FAN Connector) ........27 2.2.8 DMIC_CON (Digital MIC Connector) ......28 2.2.9 SYS_PANEL (System Panel Header) ....... 29 www.gigaipc.com... - Page 12 2.2.27 M2E (M.2 Slot, E-Key, Supports NGFF-2230 CNVi Cards Only) ................46 2.2.28 SODIMM1, SODIMM2 (2 x DDR4 SO-DIMM Sockets) ... 47 2.2.29 PCIe x4 (1 x PCIe x4 (Gen3 x 4 Bus) Slot) ....... 47 2.2.30 IO Connector Information ..........48 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications
Specifications Motherboard iTXL-Q370A (MQ37AT-SI) Thin Mini-ITX form factor Form Factor 170W x 170D (mm) Support for 8th/9th Generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium®processors/ Intel® Celeron® processors in the LGA1151 package TDP under 65W... - Page 16 Motherboard iTXL-Q370A (MQ37AT-SI) 1 x 2-pin ATX main power connector 4 x SATA 6Gb/s connectors 5 x USB 2.0 headers 2 x USB 3.0 headers 1 x Front panel header 1 x Front panel audio header 1 x Speaker out header...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
Jumpers and Connectors 19 20 www.gigaipc.com... - Page 19 Front Panel Audio Header Front Panel Display Connector FPD_PWR Front Panel Display Power Connector F_USB3 USB 3.0 Header LCD_VCC LCD_VCC Connector LVDS LVDS Connector MON_SW Monitor Switch Connector SATA_PWR SATA Power Connector SPKR Speaker out Connector SYS_FAN System Fan Connector www.gigaipc.com...
- Page 20 1 x PCIe x4 (Gen3 x 4 bus) Slot IO Connector Information MIC_IN MIC In Connector LINE_OUT Line Out Connector HDMI 2 HDMI Connector Embedded Display Port Connector USB31_1, USB3.1 Type A Connector x 3 USB31_2, USB31 USB3.1 Type C Connector x 1 Ethernet x 1 www.gigaipc.com...
-
Page 21: Dc_In (Dc In Jack)
2.2.1 DC_IN (DC In Jack) DC In Jack www.gigaipc.com... -
Page 22: Atx_19V (Atx 1X2 Pin Power Connector)
2.2.2 ATX_19V (ATX 1x2 Pin Power Connector) Pin 1 Power Connector Pin No. Definition www.gigaipc.com... -
Page 23: Battery (Battery Connector)
2.2.3 Battery (Battery Connector) Pin 1 Battery Connector Pin No. Definition www.gigaipc.com... -
Page 24: Bl_Sw (Brightness Switch Connector)
2.2.4 BL_SW (Brightness Switch Connector) Pin 1 Brightness Switch Connector Pin No. Definition Brightness Down Brightness UP www.gigaipc.com... -
Page 25: Clr_Cmos (Clear Cmos Jumper)
2.2.5 CLR_CMOS (Clear CMOS Jumper) Pin 1 Clear COMS Jumper Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com... -
Page 26: Com1 (Seriel Port Header)
2.2.6 COM1 (Seriel Port Header) Pin 1 COM1 Connector Pin No. Definition www.gigaipc.com... -
Page 27: Cpu_Fan (Cpu Fan Connector)
2.2.7 CPU_FAN (CPU FAN Connector) Pin 1 CPU Fan Connector Pin No. Definition Sense www.gigaipc.com... -
Page 28: Dmic_Con (Digital Mic Connector)
2.2.8 DMIC_CON (Digital MIC Connector) Pin 1 Digital MIC Connector Pin No. Definition 3.3V DATA Clock www.gigaipc.com... -
Page 29: Sys_Panel (System Panel Header)
2.2.9 SYS_PANEL (System Panel Header) Pin 1 System Panel Header Pin No. Definition MPD+ MPD- RESET www.gigaipc.com... -
Page 30: F_Usb2_1 (Usb 2.0 Header)
2.2.10 F_USB2_1 (USB 2.0 Header) Pin 1 USB 2.0 Header Pin No. Definition www.gigaipc.com... -
Page 31: F_Usb2_2 (Usb 2.0 Header)
2.2.11 F_USB2_2 (USB 2.0 Header) Pin 1 USB 2.0 Header Pin No. Definition www.gigaipc.com... -
Page 32: F_Usb2_3 (Usb 2.0 Header)
2.2.12 F_USB2_3 (USB 2.0 Header) Pin 1 USB 2.0 Header Pin No. Definition www.gigaipc.com... -
Page 33: F_Usb2_4 (Usb 2.0 Header)
2.2.13 F_USB2_4 (USB 2.0 Header) Pin 1 USB 2.0 Header Pin No. Definition 2 4 6 8 10 1 3 5 7 9 www.gigaipc.com... -
Page 34: Fp_Audio (Front Panel Audio Header)
2.2.14 FP_Audio (Front Panel Audio Header) Pin 1 Front Audio Connector Definition Pin Definition MIC-L MIC-JD MIC-R DELTECT LINE-L LINE-R LINE-JD www.gigaipc.com... -
Page 35: Fpd (Front Panel Display Connector)
2.2.15 FPD (Front Panel Display Connector) Pin 1 Front Panel Display Connector Pin No. Definition Brightness Enable Brightness PWM Brightness Power Brightness Power Brightness UP Brightness Down www.gigaipc.com... -
Page 36: Fpd_Pwr (Front Panel Display Power Connector)
2.2.16 FPD_PWR (Front Panel Display Power Connector) Pin 1 Front Panel Display Connector Pin No. Definition Brightness Power www.gigaipc.com... -
Page 37: F_Usb3 (Usb 3.0 Header)
2.2.17 F_USB3 (USB 3.0 Header) Pin 1 USB 3.0 Header Pin No. Definition Pin No. Definition www.gigaipc.com... -
Page 38: Lcd_Vcc (Lcd_Vcc Connector)
2.2.18 LCD_VCC (LCD_VCC Connector) Pin 1 LCD_VCC Connector Pin No. Definition 3.3V LCDVCC www.gigaipc.com... -
Page 39: Lvds (Lvds Connector)
2.2.19 LVDS (LVDS Connector) Pin 1 LVDS Connector Definition Definition SMB CLK Brightness Enable Brightness Control BCLK+ BCLK- Definition Definition Brightness Power Brightness Power LVDVCC Brightness Power LVDVCC 3.3V LVDVCC SMB DATA DELTECT ACLK+ ACLK- www.gigaipc.com... -
Page 40: Mon_Sw (Monitor Switch Connector)
2.2.20 MON_SW (Monitor Switch Connector) Pin 1 LCD_VCC Connector Pin No. Definition www.gigaipc.com... -
Page 41: Sata_Pwr (Sata Power Connector)
2.2.21 SATA_PWR (SATA Power Connector) Pin 1 SATA Power Connector Pin No. Definition www.gigaipc.com... -
Page 42: Spkr (Speaker Out Connector)
2.2.22 SPKR (Speaker Out Connector) Pin 1 LCD_VCC Connector Pin No. Definition SPEAKER R- SPEAKER R+ SPEAKER L+ SPEAKER L- www.gigaipc.com... -
Page 43: Sys_Fan (System Fan)
2.2.23 SYS_FAN (System Fan) Pin 1 System FAN Pin No. Definition Sense www.gigaipc.com... -
Page 44: Tpm (Trusted Platform Module Connector)
2.2.24 TPM (Trusted Platform Module Connector) Pin 1 TPM Module Connector Pin No. Definition LPC CLK 3.3V RESET 3.3V LAD0 SeriesIRQ LAD1 DETECT LAD2 LAD3 LPC FRAME www.gigaipc.com... -
Page 45: Sata2, 3, 4, 5 (Sata 6 Gb/S Connector)
2.2.25 SATA2, 3, 4, 5 (SATA 6 Gb/s Connector) SATA 2 SATA 3 SATA 5 SATA 4 SATA 6GB/S Connector Pin No. Definition www.gigaipc.com... -
Page 46: M2M (M.2 Slot, M-Key, Sata 6Gb/S & Pcie, Supports Ngff-2260/2280 Cards)
2.2.26 M2M (M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports NGFF-2260/2280 Cards) 2.2.27 M2E (M.2 Slot, E-Key, Supports NGFF-2230 CNVi Cards Only) www.gigaipc.com... -
Page 47: Sodimm1, Sodimm2 (2 X Ddr4 So-Dimm Sockets)
2.2.28 SODIMM1, SODIMM2 (2 x DDR4 SO-DIMM Sockets) 2.2.29 PCIe x4 (1 x PCIe x4 (Gen3 x 4 Bus) Slot) www.gigaipc.com... -
Page 48: 2.2.30 Io Connector Information
Line Out Connector 33 HDMI 2 HDMI Connector Embedded Display Port Connector 34 DP USB31_1, USB3.1 Type A Connector x 3 USB31_2, 36 USB31 USB3.1 Type C Connector x 1 37 LAN Ethernet x 1 DC_IN DC In Jack www.gigaipc.com...
