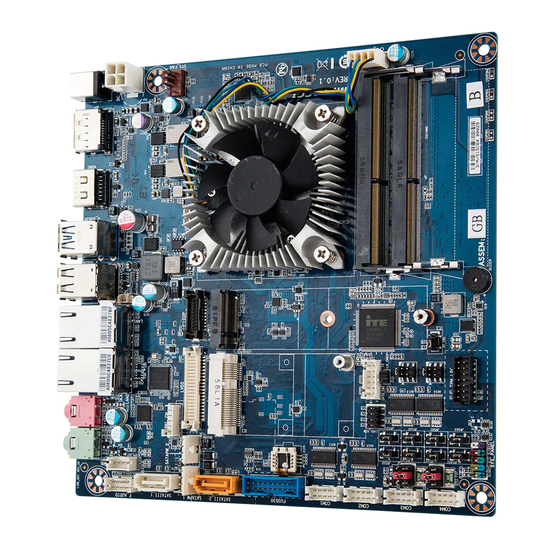

Page 1: Thin Mini-Itx Motherboard
(MKLPCCI) Thin Mini-ITX Motherboard User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity iTXL-3955A MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
LSW (LVDS resolution jumper) ........23 2.2.4 AT_CN (AT/ATX power mode select jumper) ....24 2.2.5 F_Audio (Front audio header) ........25 2.2.6 LVDS (LVDS connector) ..........26 2.2.7 BKL_CN (Back light brightness control connector) ..27 2.2.8 USB30 (USB 3.0 header) ..........28 www.gigaipc.com... - Page 12 2.2.18 CLR_CMOS ..............38 2.2.19 JRS31, JRS32, JRS41, JRS42 (RS31, RS32, RS41, RS42 select jumper for serial port) ........39 2.2.20 JRS33, JRS34, JRS43, JRS44 (RS33, RS34, RS43, RS44 select jumper for serial port) ........40 2.2.21 JCOM32/42 (RS-232/RS-422/RS-485 select) ....41 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications
Specifications Motherboard iTXL-3955A (MKLPCCI) Thin Mini-ITX form factor Form Factor 170W x 170D (mm) Intel® Celeron® Processor 3955U, 2M Cache, 2.00 GHz 2 MB SmartCache Socket 1 x FCBGA1356 Chipset — 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of... - Page 16 Motherboard iTXL-3955A (MKLPCCI) 1 x 2-pin ATX main power connector 2 x SATA 6Gb/s connectors 2 x USB 3.0 headers 1 x Front panel header 1 x Front panel audio header 1 x Speaker out header 1 x LVDS connector...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 19 COM31/41 RI# pin RI#/5V/12V Select CLR_CMOS Clear CMOS jumper JRS31 JRS32 / RS31, RS32/ RS41, RS42 select jumper for JRS41 JRS42 serial port JRS33 JRS34/ RS33, RS34/ RS43, RS44 select jumper for JRS43 JRS44 serial port JCOM32/42 COM3/COM4 RS-232/RS-422/RS-485 Select www.gigaipc.com...
-
Page 20: Rear I/O Connector
1 x Display Port HDMI Port 1 x HDMI USB3 Port 2 x USB3.0 USB2 Port 2 x USB2.0 RJ-45 Port 2 x RJ45 Mic in 1 x Audio jacks (Mic in) Line out 1 x Audio jacks (Line out) www.gigaipc.com... -
Page 21: Dc_In1 (Dc In Jack)
2.2.1 DC_IN1 (DC In Jack) Power Connector Connector PN Vendor WTJ-020-88JSB KYOYAKU www.gigaipc.com... -
Page 22: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.2 DC_IN2 (ATX 2x2 pin power connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX 25104A0400B3-93LF ATRC Pin No. Definition +12V +12V www.gigaipc.com... -
Page 23: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1024 x 600 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 24: At_Cn (At/Atx Power Mode Select Jumper)
AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor PH03N33BAAA00 HORNGTONG Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 25: F_Audio (Front Audio Header)
2.2.5 F_Audio (Front audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 26: Lvds (Lvds Connector)
2.2.6 LVDS (LVDS connector) Pin 1 LVDS Connector Pin No. Definition Pin No. Definition Pin No. Definition Pin No. Definition 3.3V Connector PN Vendor 712-76-40GWE0 PINREX 3.3V A1252WV-SF-2X20PD01 JOINT-TECH SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com... -
Page 27: Bkl_Cn (Back Light Brightness Control Connector)
2.2.7 BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 28: Usb30 (Usb 3.0 Header)
2.2.8 USB30 (USB 3.0 header) Pin 1 USB 3.0 Header Pin No. Definition P2_D+ P2_D- P2_TX+ P2_TX- Pin No. Definition P2_RX+ Power P2_RX- P1_RX- Power P1_RX+ No Pin Connector PN Vendor P1_TX- P1_TX+ 52X-80-20GU65 PINREX WUIR-19A9N4BU3W WINWIN P1_D- P1_D+ www.gigaipc.com... -
Page 29: Com1~4 (Serial Port)
2.2.9 COM1~4 (Serial port) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com... -
Page 30: Tpm_Lpc (Trusted Platform Module Connector)
2.2.10 TPM_LPC (Trusted Platform Module Connector) Pin 1 TPM Module Connector Pin No. Definition LAD3 LFRAME Pin No. Definition LPCCLK 3VDUAL Connector PN Vendor PFM RST 52M-90-14GBE7 PINREX VCC3 LAD0 IRQ_SERIAL LAD1 TPM_DET LAD2 www.gigaipc.com... -
Page 31: Sys_Panel (Front Panel Header)
2.2.11 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 32: Satapw1~2 (Sata 6Gb/S Power Connector)
2.2.12 SATAPW1~2 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 33: Gpio_Cnt (General Propose Input/Output Header)
2.2.13 GPIO_CNT (General Propose input/output header) Pin 1 GPIO Connector Pin No. Definition SMB_DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPO1 A2004WV-2X06P46 JOINT-TECH GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK www.gigaipc.com... -
Page 34: 2.2.14 Sys_Fan
2.2.14 SYS_FAN Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 35: Spk_Out (Speaker Out Connector)
2.2.15 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 36: Edp (Embedded Display Port Connector)
2.2.16 EDP (Embedded Display Port Connector) Pin 1 Note: Please ensure pin 8 is connected Embedded Display Port connector to Ground. Connector PN Vendor Definition Pin Definition A1252WV-SF- JOINT-TECH 2X10PN6BG1G00L eDP_1+ 50286-02071-001 ACES eDPAUX- eDP_0- eDP_3- eDPAUX+ eDP_0+ eDP_2- eDP_3+ eDP_2+ eDPSW eDP_1- 3.3V www.gigaipc.com... -
Page 37: Jcom31, Jcom41 (Com31 & Com41 Ri# Pin Ri#/5V/12V Select)
2.2.17 JCOM31, JCOM41 (COM31 & COM41 RI# pin RI#/5V/12V Select) Pin 1 JCOM31, JCOM41 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 38: 2.2.18 Clr_Cmos
2.2.18 CLR_CMOS Pin 1 Clear COMS Jumper Connector PN Vendor 210-91-02GB01 PINREX PH02R23BAZ000 HORNGTONG Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com... -
Page 39: Jrs31, Jrs32, Jrs41, Jrs42
2.2.19 JRS31, JRS32, JRS41, JRS42 (RS31, RS32, RS41, RS42 select jumper for serial port) Pin 1 Pin 1 JRS31, JRS32, JRS41, JRS42 Connector PN Vendor PH03N33BAAA00 HORNGTONG JRS32 JRS31 JRS31 JRS42 JRS41 1-2 Close: RS-485 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com... -
Page 40: Jrs33, Jrs34, Jrs43, Jrs44
2.2.20 JRS33, JRS34, JRS43, JRS44 (RS33, RS34, RS43, RS44 select jumper for serial port) Pin 1 Pin 1 JRS33, JRS34, JRS43, JRS44 Connector PN Vendor PH03N33BAAA00 HORNGTONG JRS34 JRS33 JRS44 JRS43 1-2 Close: RS-422 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com... -
Page 41: Jcom32/42 (Rs-232/Rs-422/Rs-485 Select)
2.2.21 JCOM32/42 (RS-232/RS-422/RS-485 select) Pin 1 JCOM32/42 Jummper Pin No. Definition RX232 1-2 Close: RS-232 RX422 3-4 Close: RX485 RS-422 5-6 Close: Connector PN Vendor RS-485 222-97-03GBE1 PINREX www.gigaipc.com... - Page 42 www.gigaipc.com...
