Summary of Contents for GIGAIPC iTXL-N97A
-

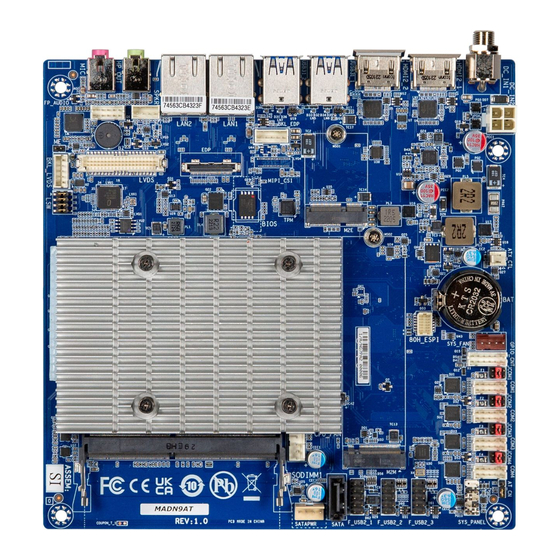

Page 1: Thin Mini-Itx Motherboard
Thin Mini-ITX Motherboard www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity iTXL-N97A MB SATA power cable Standard I/O Shield Low-Profile I/O Shield If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
USB31_2 (USB 3.2 Gen 1 connector) ......26 2.2.5 LAN1, LAN2 (GbE LAN connectors) ....... 27 2.2.6 HP_OUT (Line out connector) ........28 2.2.7 MIC (Mic in connector) ..........29 2.2.8 DC_IN2 (ATX 2x2 pin power connector) ....... 30 2.2.9 ATX_CTL (ATX control header) ........31 www.gigaipc.com... - Page 12 2.2.27 BKL_EDP (Backlight control header for EDP) ....49 2.2.28 M2E (M.2 Slot, 2230 E-key) .......... 50 2.2.29 CPU_FAN (CPU fan connector) ........51 2.2.30 M2M (M.2 Slot, 2280 M-key) ........52 Chapter 3 – BIOS Introduction ..............54 The Main Menu............. 55 www.gigaipc.com...
- Page 13 3.3.9 NVMe Configuration ............. 66 3.3.10 Offboard SATA Controller Configuration ...... 67 3.3.11 Digital IO Port Configuration ........68 3.3.12 Tls Auth Configuration ..........69 Chipset ................70 Security ................. 72 Boot ................75 Save & Exit ..............76 www.gigaipc.com...
-
Page 14: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 15 179.8 154.94 20.63 33.02 www.gigaipc.com...
-
Page 16: Specifications
Specifications Motherboard iTXL-N97A (MADN9AT) Thin Mini-ITX form factor Form Factor 170W x 170D (mm) Intel® Processor N97 Intel 7, 4 cores, up to 3.60 GHz, TDP 12W 6 MB Smart Cache Socket 1 x FCBGA1264 Chipset — 1 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB... - Page 17 Motherboard iTXL-N97A (MADN9AT) 1 x 4-pin ATX main power connector 1 x SATA Power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header Internal I/O 6 x USB 2.0 headers...
-
Page 18: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 19: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 20 RI# pin RI#/5V/12V Select for COM1, COM2, JCOM3 COM3, COM4 ports JCOM4 COM1 COM2 COM headers (RS-232/422/485 & RI/5V/12V) COM3 COM4 AT_CN AT/ATX mode select jumper SYS_Panel Front panel header F_USB2_1 F_USB2_2 USB 2.0 header F_USB2_3 SATA SATA 6Gb/s connector www.gigaipc.com...
- Page 21 Backlight Control header for LVDS ME Enable jumper Front panel audio header FP_AUDIO Speaker out connector SPKR LVDS LVDS connector Embedded Display Port connector BKL_EDP Backlight Control header for EDP M.2 Slot, 2230 E-Key CPU_FAN CPU fan connector M.2 Slot, 2280 M-Key www.gigaipc.com...
-
Page 22: Rear I/O Connector
HDMI connector USB31_1 USB 3.2 Gen 1 connector USB31_2 USB 3.2 Gen 1 connector LAN1 1 x GbE LAN Port LAN2 1 x GbE LAN Port HP_OUT 1 x Audio jacks (Line out) 1 x Audio jacks (MIC in) www.gigaipc.com... -
Page 23: Dc_In1 (Dc In Jack)
2.2.1 DC_IN1 (DC In Jack) Power Connector Connector PN Vendor 655-360-000 SHEN-MING www.gigaipc.com... -
Page 24: Hdmi2_1, Hdmi2_2 (Hdmi Connector)
2.2.2 HDMI2_1, HDMI2_2 (HDMI connector) HDMI2_2 HDMI2_1 HDMI Connector Connector PN Vendor 1165-2CG04-24P TCONN Pin No. Definition Pin No. Definition TX2p CLKn TX2n TX1p TX1n TX0p Hot Plug TX0n Detect CLKp www.gigaipc.com... -
Page 25: Usb31_1 (Usb 3.2 Gen 1 Connector)
2.2.3 USB31_1 (USB 3.2 Gen 1 connector) USB 3.2 Gen 1 Connector Connector PN Vendor UEA11121-8FS6-4F FOXCONN ABA-USB-079-K01 LOTES Definition Definition USB3_RX1n USB3_RX2n USB3_RX1p USB3_RX2p USB3_TX1n USB3_TX2n USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 26: Usb31_2 (Usb 3.2 Gen 1 Connector)
2.2.4 USB31_2 (USB 3.2 Gen 1 connector) USB 3.2 Gen 1 connector Connector PN Vendor UEA11121-8FS6-4F FOXCONN ABA-USB-079-K01 LOTES Definition Definition USB3_RX1n USB3_RX2n USB3_RX1p USB3_RX2p USB3_TX1n USB3_TX2n USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 27: Lan1, Lan2 (Gbe Lan Connectors)
LAN1, LAN2 (GbE LAN connectors) LAN2 LAN1 GbE LAN Connector State Description Orange On 1Gbps data rate Green On 100Mbps data rate 10Mbps data rate Pin No. Definition Connector PN Vendor BI_DA+ RT7-GB-0003 BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- www.gigaipc.com... -
Page 28: Hp_Out (Line Out Connector)
2.2.6 HP_OUT (Line out connector) www.gigaipc.com... -
Page 29: Mic (Mic In Connector)
2.2.7 MIC (Mic in connector) www.gigaipc.com... -
Page 30: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.8 DC_IN2 (ATX 2x2 pin power connector) Pin 1 power Connector Connector PN Vendor 740-81-04TW56 PINREX Connector type 2x2pin header, pitch 4.2mm Pin No. Definition DC IN DC IN www.gigaipc.com... -
Page 31: Atx_Ctl (Atx Control Header)
2.2.9 ATX_CTL (ATX control header) Pin 1 ATX Control Header Connector PN Vendor 744-81-02TW10 PINREX Connector type 1x2pin header, pitch 2.54mm Pin No. Definition PSON# www.gigaipc.com... -
Page 32: Sys_Fan (System Fan Connector)
2.2.10 SYS_FAN (System fan connector) Pin 1 System FAN connector Connector PN Vendor 744-81-045R11 PINREX Connector type 1x4pin header, pitch 2.54mm Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 33: Gpio_Cnt (General Propose Input/Output Header)
2.2.11 GPIO_CNT (General Propose input/output header) Pin 1 Pin 1 GPIO Connector Pin No. Definition SMBus DATA Pin No. Definition Connector PN Vendor GPIO-output_1 725-81-12TW00 PINREX GPIO-input_1 A2004WV-2X06P46 JOINT-TECH GPIO-output_2 GPIO-input_2 Connector type GPIO-output_3 2x6pin header, pitch 2.0mm GPIO-input_3 GPIO-output_4 GPIO-input_4 SMBus Clock www.gigaipc.com... -
Page 34: Jcom1, Jcom2, Jcom3, Jcom4 (Ri# Pin Ri#/5V/12V Select For Com1, Com2, Com3, Com4 Port)
RI#/5V/12V Select for COM1, COM2, COM3, COM4 port) Pin 1 JCOM1, JCOM2, JCOM3, JCOM4 Connector PN Vendor Jumper 220-97-03GB01 PINREX PH06N53BAZ000 HORNGTONG 1-2 Close: 5V (Power COM) Connector type 2x3pin header, pitch 2.0mm 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 35: Com1~4 (Com Header (Rs-232/422/485 & Ri/5V/12V)
Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Connector type RS-232 RS-422 RS-485 2x5pin header, pitch 2.0mm Full Duplex Half Duplex TXD+ TXD- RXD- – RXD+ – – – – – – – – – No Connect – – – – www.gigaipc.com... -
Page 36: At_Cn (At/Atx Mode Select Jumper)
2.2.14 AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Connector PN Vendor 220-96-03GB001K PINREX Connector type 1x3pin header, pitch 2.0mm Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 37: Sys_Panel (Front Panel Header)
2.2.15 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05GW5W PINREX Connector type 2x5pin header, pitch 2.54mm Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 38: F_Usb2_1, F_Usb2_2, F_Usb2_3 (Usb 2.0 Header)
2.2.16 F_USB2_1, F_USB2_2, F_USB2_3 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Connector type 2x5pin header, pitch 2.54mm Pin No. Definition No Pin www.gigaipc.com... -
Page 39: Sata (Sata 6Gb/S Connector)
2.2.17 SATA (SATA 6Gb/s connector) SATA 6Gb/s Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 40: Satapwr (Sata Power Connector)
2.2.18 SATAPWR (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-91-045W00 PINREX Connector type 1x4pin header, pitch 2.54mm Pin No. Definition www.gigaipc.com... -
Page 41: Sodimm1 (1 X Ddr4 So-Dimm Slot)
2.2.19 SODIMM1 (1 x DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 42: Lsw (Lvds Resolution Jumper)
Connector type 24bit 24bit 1024 x 600 1600 x 900 2x4pin header, pitch 2.0mm 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit www.gigaipc.com... -
Page 43: Bkl_Lvds (Backlight Control Header For Lvds)
2.2.21 BKL_LVDS (Backlight Control header for LVDS) Pin 1 Backlight control connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Connector type 1x5pin header, pitch 2.0mm Pin No. Definition Backlight Enable www.gigaipc.com... -
Page 44: Me (Me Enable Jumper)
2.2.22 ME (ME Enable Jumper) Pin 1 ME Enable Jumper Connector type 1x2pin header, pitch 2.0mm ME Enable Jumper Enable (Default setting) Disable www.gigaipc.com... -
Page 45: Fp_Audio (Front Panel Audio Header)
2.2.23 FP_AUDIO (Front panel audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Connector type 2x5pin header, pitch 2.0mm Definition Pin Definition MIC_Left FAUDIO_JD MIC_Right No Connect Detect HPOUT_Left HPOUT_ Right www.gigaipc.com... -
Page 46: Spkr (Speaker Out Connector)
2.2.24 SPKR (Speaker out connector) Pin 1 Speaker out Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Connector type 1x4pin header, pitch 2.0mm Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 47: Lvds (Lvds Connector)
2.2.25 LVDS (LVDS connector) Pin 1 LVDS Connector Pin No. Definition Pin No. Definition CLK2n CLK1n Pin No. Definition Pin No. Definition 3.3V 3.3V Connector PN Vendor 712-76-40GWE0 PINREX SPEC0 SPED0 A1252WV-SF-2X20PD01 JOINT-TECH Connector type 2x20pin header, pitch 1.25mm CLK2p CLK1p www.gigaipc.com... -
Page 48: Edp (Embedded Display Port Connector)
Definition 3.3V TX3n TX3p Pin No. Definition Pin No. Definition AUXn AUXp Hot Plug TX0n Detect Connector PN Vendor Backlight TX0p Enable 115B30-000040-G4-R STARCONN Connector type Backlight TX1n controll 1x30pin header, pitch 0.5mm TX1p 3.3V TX2n 3.3V TX2p 3.3V www.gigaipc.com... -
Page 49: Bkl_Edp (Backlight Control Header For Edp)
2.2.27 BKL_EDP (Backlight control header for EDP) Pin 1 Backlight control connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Connector type 1x5pin header, pitch 2.0mm Pin No. Definition Backlight Enable www.gigaipc.com... -
Page 50: M2E (M.2 Slot, 2230 E-Key)
PCIE CLOCKp PCIE CLOCKn SUSCLK Pin No. Definition Pin No. Definition PCIE Clock PCIRST 3.3V Request 3.3V PCIE wake up BT_Disable WLAN_DISABLE 3.3V 3.3V Pin No. Definition Pin No. Definition Connector PN Vendor 80152-8521 BELLWETHER PCIE_TXp APCI0095-P002A LOTES PCIE_TXn CL_RST www.gigaipc.com... -
Page 51: Cpu_Fan (Cpu Fan Connector)
2.2.29 CPU_FAN (CPU fan connector) Pin 1 CPU FAN connector Connector PN Vendor 744-81-045W1Z PINREX Connector type 1x4pin header, pitch 2.54mm Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 52: M2M (M.2 Slot, 2280 M-Key)
PCI Reset 3.3V PCIE Clock Request PCIE Clock n PCIe Wake# SSD LED PCIE Clock p 3.3V 3.3V 3.3V Pin No. Definition Pin No. Definition 3.3V SUSCLK Detect 3.3V 3.3V 3.3V Connector PN Vendor 2E0BC21-S85BM-7H FOXCONN 80159-8521 BELLWETHER APCI0096-P002A LOTES www.gigaipc.com... -
Page 53: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 54: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 55: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 56: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 57: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) (Default setting) www.gigaipc.com... - Page 58 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 59: Cpu Configuration
Enabled : Enables Turbo Mode (Default setting) Turbo Mode Disabled : Disables Turbo Mode Command CPU to enter into low power consumption mode when CPU is under idle mode. C states Enabled : Enables C states (Default setting) Disabled : Disables C states www.gigaipc.com... -
Page 60: Sata Configuration
3.3.3 SATA Configuration Item Description Serial ATA Port shows 2.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 61: It8786 Super Io Configuration
Disabled : if Disabled, displays no configuration for the serial port Device settings : Serial Port 3 Display the specified Serial Port base I/O address and IRQ Configuration COM Port Mode : Serial Port 4 Choose RS-232, RS-422, or RS-485 feature Configuration www.gigaipc.com... -
Page 62: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed System Shows current system temperature Temperature CPU Temperature Shows current CPU temperature CPU Fan Speed Shows current CPU fan Speed SYS Fan Speed Shows current System fan Speed www.gigaipc.com... -
Page 63: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 64: Ami Graphic Output Protocol Policy
3.3.7 AMI Graphic Output Protocol Policy Item Description Choose default monitor output when there are more than one monitor plugged Output Select on the motherboard. www.gigaipc.com... -
Page 65: Network Stack Configuration
Disabled : Disables IPv6 HTTP Support Enabled : Enables IPv6 HTTP Support PXE boot wait time Wait time in seconds, or use ESC key to abort the PXE boot. Media detect count Number of times the presence of media will be checked. www.gigaipc.com... -
Page 66: Nvme Configuration
3.3.9 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 67: Offboard Sata Controller Configuration
3.3.10 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 68: Digital Io Port Configuration
Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com... -
Page 69: Tls Auth Configuration
Press [Enter] to configure advanced items : Server CA Configuration : Enroll Cert : Enroll Cert 1. Enroll Cert Using File 2. Cert GUID : Input digit character in 11111111-2222-3333-4444-1234567 890ab format. 3. Commit Changes and Exit 4. Discard Changes and Exit www.gigaipc.com... -
Page 70: Chipset
Enabled : Enables onboard audio controller (Default setting) Disabled : Disables onboard audio controller Enable/Disable power saving funtion ErP Lowest Power Enabled : Enables ERP Lowest Power State Mode State Mode Disabled : Disabled ERP Lowest Power State Mode (Default setting) www.gigaipc.com... - Page 71 Enable/Disable Watchdog Timer function Watchdog Timer Enabled : Enables Watchdog Timer function Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com...
-
Page 72: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 73 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 74 A u t h o r i z e d S i g n a t u r e Export Copy NVRAM content of Secure database(db) Secure Boot Boot variables to files in a root variables folder on a file system device www.gigaipc.com...
-
Page 75: Boot
Enable/Disable Built-in EFI Shell Built-in EFI Shell Enabled : Enables Built-in EFI Shell Disabled : Disables Built-in EFI Shell (Default setting) Shows the information of the storage that be installed in the system Boot Option #1 Choose/set the boot priority www.gigaipc.com... -
Page 76: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
