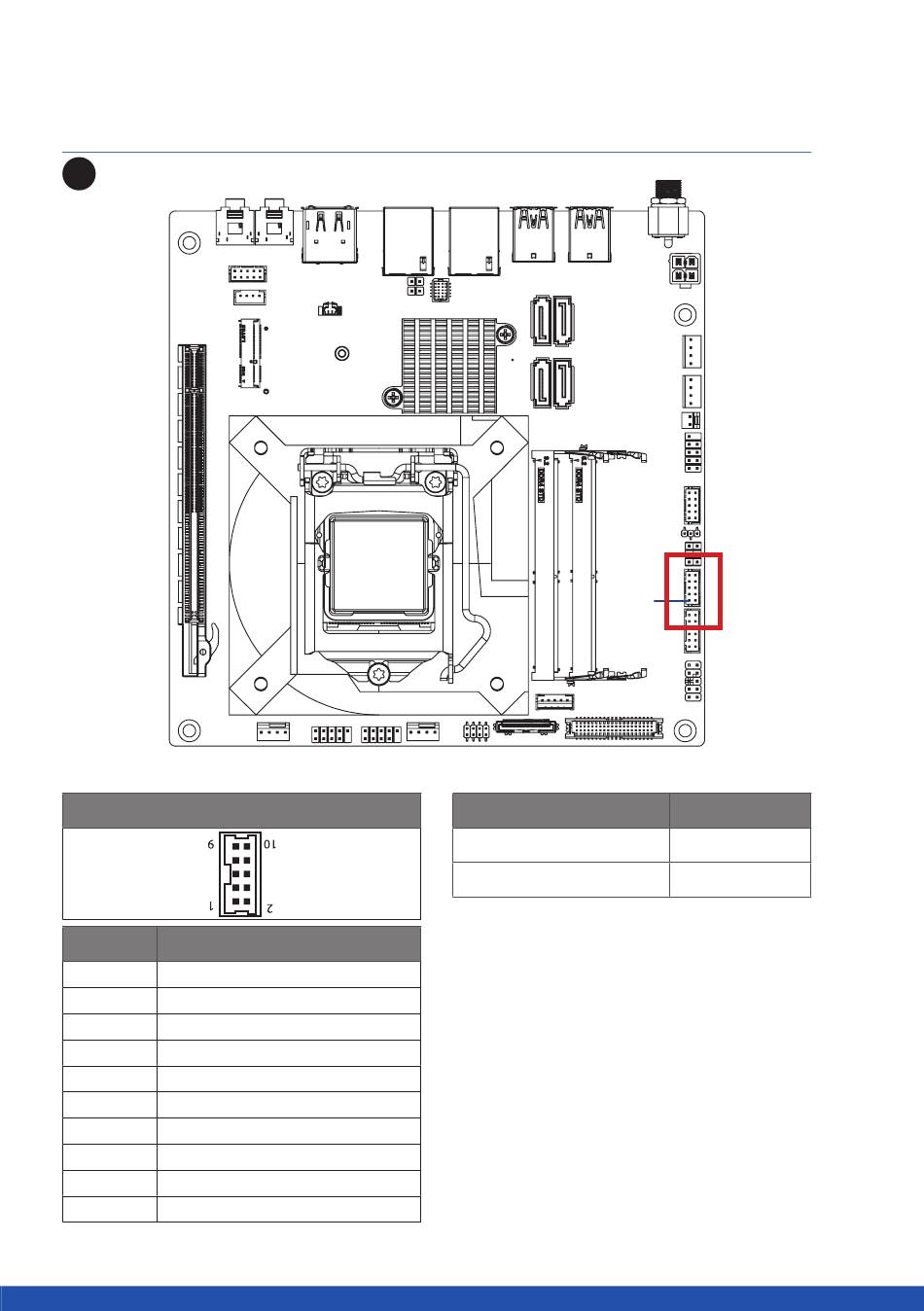

2.2.20 COM1 (COM header RS232/422/485 & 5V/12V/RI)
24
COM1 Connector
Pin No.
1
2
3
4
5
6
7
8
9
10
Definition
RX
DCD
DTR
TX
DSR
GND
CTS
RTS
RI
NC
Pin 1
Connector PN
725-81-10TW00
A2004WV-2X05P46
www.gigaipc.com
Vendor
PINREX
JOINT-TECH
40
