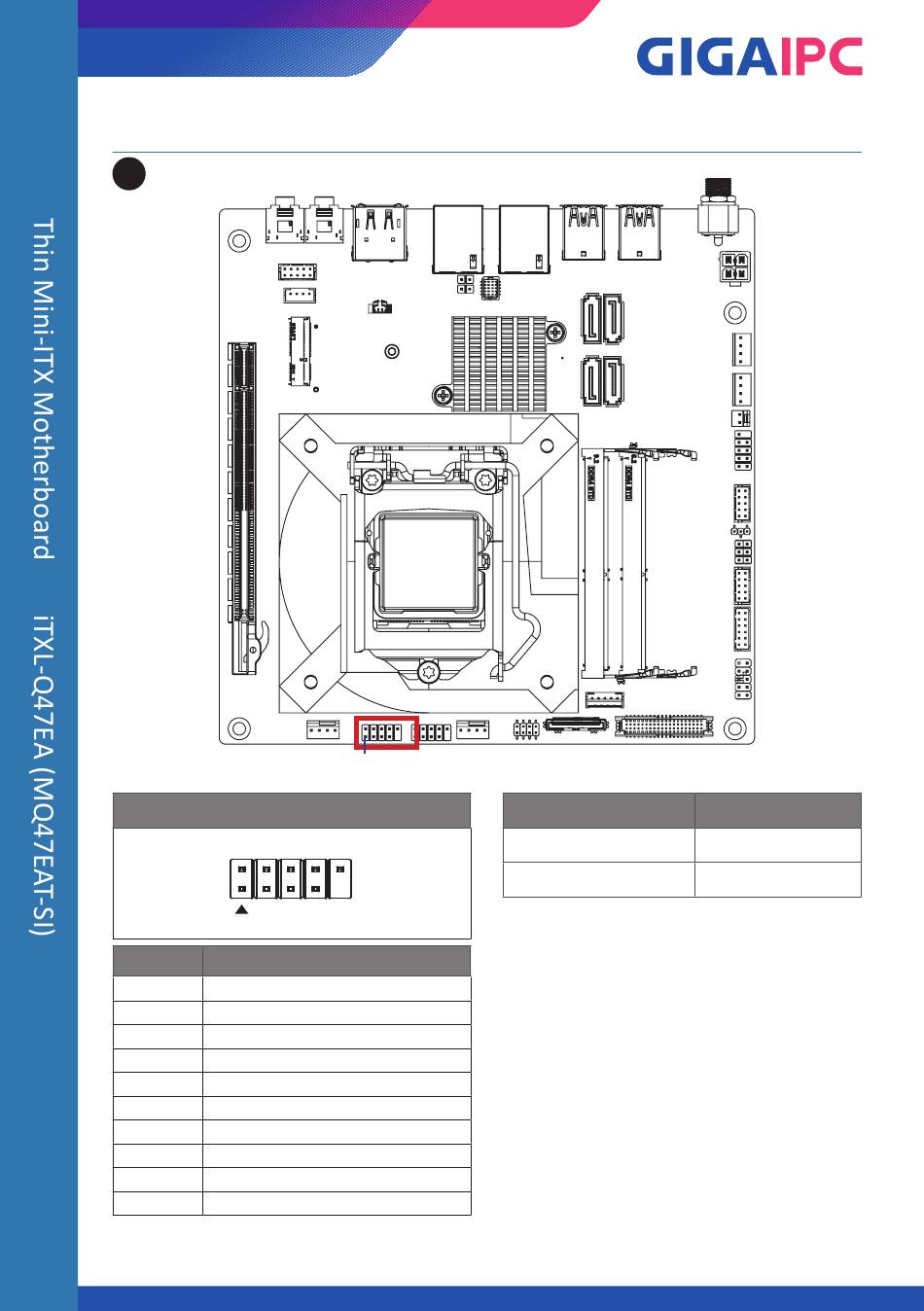

2.2.11 FUSB2_2 (USB 2.0 Header)
16
Pin No.
1
2
3
4
5
6
7
8
9
10
31
www.gigaipc.com
Pin 1
USB 2.0 Header
2 4 6 8 10
1 3 5 7 9
Definition
5V
5V
D2n
D1n
D2p
D1p
GND
GND
No Pin
NC
Connector PN
210-92-05GB04
PH10R53BAZ009
Vendor
PINREX
HORNGTONG
