Page 1: Thin Mini-Itx Motherboard
(MZAPLBI) Thin Mini-ITX Motherboard User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity iTXL-3350A MB SATA power cable I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
CPU_FAN (CPU fan connector) ........24 2.2.5 F_AUDIO (Front audio header) ........25 2.2.6 SPK_OUT (Speaker out connector) ....... 26 2.2.7 TPM_LPC (Trusted Platform Module connector) ..27 2.2.8 LVDS (LVDS connector) ..........28 2.2.9 BKL_CN (Back light brightness control connector) ..29 www.gigaipc.com... - Page 12 ........47 2.2.28 JRS21, JRS22, JRS23, JRS24 (RS21, RS22, RS23, RS24 select jumper for serial port) ........48 2.2.29 JCOM11 (COM11 RI# pin RI#/5V/12V Select) ..... 49 2.2.30 JCOM21 (COM21 RI# pin RI#/5V/12V Select)....50 2.2.31 Battery ................. 51 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications
Specifications Motherboard iTXL-3350A (MZAPLBI) Thin Mini-ITX form factor Form Factor 170W x 170D (mm) Intel® Celeron® Processor N3350 14nm, 2 cores, 2 threads 1.10 - 2.40 GHz 2MB L2 cache TDP 6W 2 MB L2 Socket 1 x FCBGA1296 Chipset —... - Page 16 Motherboard iTXL-3350A (MZAPLBI) 1 x 4-pin ATX main power connector 2 x SATA 6Gb/s connectors 1 x USB 2.0 header 2 x USB 3.0 headers 1 x Front panel header 1 x Front panel audio header 1 x Speaker out header...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -

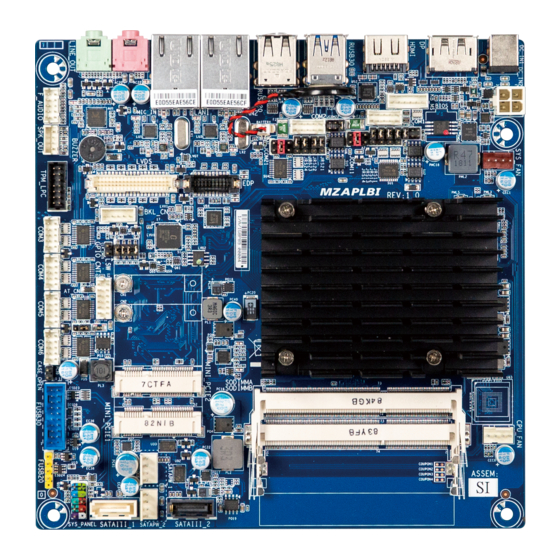

Page 18: Jumpers And Connectors
Jumpers and Connectors 28 29 www.gigaipc.com... - Page 19 Case open jumper FUSB30 USB 3.0 header FUSB20 USB 2.0 header SYS_PANEL Front panel header SATAIII_1~2 SATA 6Gb/s connector SATAPW_1~2 SATA 6Gb/s power connector Embedded Display Port connector KB_MS Keyboard and Mouse Connector COM1 Serial port header COM2 Serial port header www.gigaipc.com...
- Page 20 RS11, RS12, RS13, RS14 select jumper for JRS13 JRS14 serial port JRS21 JRS22 RS21, RS22, RS23, RS24 select jumper for JRS23 JRS24 serial port COM11 RI# pin RI#/5V/12V Select JCOM11 COM21 RI# pin RI#/5V/12V Select JCOM21 BATTERY Battery cable connector www.gigaipc.com...
-
Page 21: Dc_In1 (Dc In Jack)
2.2.1 DC_IN1 (DC In Jack) Power Connector Connector PN Vendor WTJ-020-88JSB KYOYAKU www.gigaipc.com... -
Page 22: Dc_In2 (Atx 2X2 Pin Power Connector)
2.2.2 DC_IN2 (ATX 2x2 pin power connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX 25104A0400B3-93LF ATRC Pin No. Definition +12V +12V www.gigaipc.com... -
Page 23: Sys_Fan (System Fan Connector)
2.2.3 SYS_FAN (System fan connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 24: Cpu_Fan (Cpu Fan Connector)
2.2.4 CPU_FAN (CPU fan connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 25: F_Audio (Front Audio Header)
2.2.5 F_AUDIO (Front audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 26: Spk_Out (Speaker Out Connector)
2.2.6 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 27: Tpm_Lpc (Trusted Platform Module Connector)
2.2.7 TPM_LPC (Trusted Platform Module connector) Pin 1 TPM Module Connector Pin No. Definition LAD1 14 13 14 13 TPM_DET LAD2 LAD3 LFRAME Pin No. Definition LPCCLK Connector PN Vendor 3VDUAL PFM RST 52M-90-14GBE7 PINREX VCC3 LAD0 IRQ_SERIAL www.gigaipc.com... -
Page 28: Lvds (Lvds Connector)
2.2.8 LVDS (LVDS connector) Pin 1 LVDS Connector Pin No. Definition Pin No. Definition Pin No. Definition Pin No. Definition 3.3V Connector PN Vendor 3.3V 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com... -
Page 29: Bkl_Cn (Back Light Brightness Control Connector)
2.2.9 BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 30: Clr_Cmos (Clear Cmos Jumper)
2.2.10 CLR_CMOS (Clear CMOS jumper) Pin 1 Clear COMS Jumper Pin No. Definition Open: Normal Operation (Default setting) Close: Clear COMS data. Connector PN Vendor 210-91-02GB01 PINREX PH02R23BAZ000 HORNGTONG Pin No. Definition Clear CMOS www.gigaipc.com... -
Page 31: Lsw (Lvds Resolution Jumper)
PINREX Jumper Resolution Jumper Resolution Setting Setting 800x600 1366x768 18bit 24bit 1024x768 1440x1050 18bit 24bit 1024x768 1600x900 24bit 24bit 1024x600 1680x1050 18bit 24bit 1280x800 1600x1200 18bit 24bit 1280x960 1600x1200 18bit 24bit 1280x1024 1920x1080 24bit 24bit 1366x768 1920x1200 18bit 24bit www.gigaipc.com... -
Page 32: Gpio_Cnt (General Propose Input/Output Header)
2.2.12 GPIO_CNT (General Propose input/output header) Pin 1 GPIO Connector Pin No. Definition Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPO1 A2004WV-2X06P46 JOINT-TECH GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com... -
Page 33: At_Cn (At/Atx Power Mode Select Jumper)
2.2.13 AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor PH03N33BAAA00 HORNGTONG Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 34: Com3~6 (Serial Port)
2.2.14 COM3~6 (Serial port) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect www.gigaipc.com... -
Page 35: Case_Open (Case Open Jumper)
2.2.15 CASE_OPEN (Case open jumper) Pin 1 www.gigaipc.com... -
Page 36: Fusb30 (Usb 3.0 Header)
2.2.16 FUSB30 (USB 3.0 header) Pin 1 USB 3.0 Header Pin No. Definition P2_D+ P2_D- P2_TX+ P2_TX- Pin No. Definition P2_RX+ Power P2_RX- P1_RX- Power P1_RX+ No Pin Connector PN Vendor P1_TX- 52X-80-20GU65 PINREX P1_TX+ WUIR-19A9N4BU3W WINWIN P1_D- P1_D+ www.gigaipc.com... -
Page 37: Fusb20 (Usb 2.0 Header)
2.2.17 FUSB20 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-91-05GB02 PINREX PH05R23BAZ005 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 38: Sys_Panel (Front Panel Header)
2.2.18 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 39: Sataiii (Sata 6Gb/S Connector)
2.2.19 SATAIII (SATA 6GB/S Connector) Pin 1 SATA 6GB/S Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com... -
Page 40: Satapw1~2 (Sata 6Gb/S Power Connector)
2.2.20 SATAPW1~2 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Definition Pin Definition +12V www.gigaipc.com... -
Page 41: Edp (Embedded Display Port Connector)
2.2.21 EDP (Embedded Display Port Connector) Pin 1 Note:Please ensure pin 8 is connected Embedded Display Port connector to Ground. Connector PN Vendor Definition Pin Definition A1252WV-SF- JOINT-TECH 2X10PN6BG1G00L eDP_1+ 50286-02071-001 ACES eDPAUX- eDP_0- eDP_3- eDPAUX+ eDP_0+ eDP_2- eDP_3+ eDP_2+ eDPSW eDP_1- 3.3V www.gigaipc.com... -
Page 42: Kb_Ms (Keyboard/Mouse Connector)
2.2.22 KB_MS (Keyboard/Mouse connector) Pin 1 www.gigaipc.com... -
Page 43: Com1 (Seriel Port Select)
No connect No connect No connect No connect No Connect No connect No connect RI/ 5V/ 12V No connect No connect Connector PN Vendor No connect No connect No connect 725-81-10TW00 PINREX RI/5V/12V No connect No connect A2004WV-2X05P46 JOINT-TECH www.gigaipc.com... -
Page 44: Com2 (Seriel Port Select)
No connect No connect No connect No connect No Connect No connect No connect RI/ 5V/ 12V No connect No connect Connector PN Vendor No connect No connect No connect 725-81-10TW00 PINREX RI/5V/12V No connect No connect A2004WV-2X05P46 JOINT-TECH www.gigaipc.com... -
Page 45: Jcom12 (Rs-232/Rs-422/Rs-485 Select)
2.2.25 JCOM12 (RS-232/RS-422/RS-485 select) Pin 1 JCOM12/22 Jummper Pin No. Definition RX232 1-2 Close: RS-232 RX422 3-4 Close: RS-422 RX485 5-6 Close: RS-485 Connector PN Vendor 222-97-03GBE1 PINREX www.gigaipc.com... -
Page 46: Jcom22 (Rs-232/Rs-422/Rs-485 Select)
2.2.26 JCOM22 (RS-232/RS-422/RS-485 select) Pin 1 JCOM12/22 Jummper Pin No. Definition RX232 1-2 Close: RS-232 RX422 3-4 Close: RS-422 RX485 5-6 Close: RS-485 Connector PN Vendor 222-97-03GBE1 PINREX www.gigaipc.com... -
Page 47: Jrs11, Jrs12, Jrs13, Jrs14
2.2.27 JRS11, JRS12, JRS13, JRS14 (RS11, RS12, RS13, RS14 select jumper for serial port) Pin 1 JRS 11-14 Jummper Connector PN Vendor 220-96-03GB01 PINREX PH03N2-7BAN000 HORNGTONG 1-2 Close: RS-422/RS-485 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com... -
Page 48: Jrs21, Jrs22, Jrs23, Jrs24
2.2.28 JRS21, JRS22, JRS23, JRS24 (RS21, RS22, RS23, RS24 select jumper for serial port) Pin 1 JRS 21-24 Jummper Connector PN Vendor 220-96-03GB01 PINREX PH03N2-7BAN000 HORNGTONG 1-2 Close: RS-422/RS-485 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com... -
Page 49: Jcom11 (Com11 Ri# Pin Ri#/5V/12V Select)
2.2.29 JCOM11 (COM11 RI# pin RI#/5V/12V Select) Pin 1 JCOM11 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 50: Jcom21 (Com21 Ri# Pin Ri#/5V/12V Select)
2.2.30 JCOM21 (COM21 RI# pin RI#/5V/12V Select) Pin 1 JCOM21 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 51: 2.2.31 Battery
2.2.31 Battery Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com...
