Connecting to other Classroom Media

Your FrontRow Juno System can connect to other media to enhance the overall audio experience
in your classroom. Ideally, these connections were made during installation; however, they can easily
be made after the unit is installed using standard audio cords from your local electronics store.
Example 1
Many classrooms use a FrontRow EZRoom
equipment online. If your classroom uses EZRoom
video into your AV wallplate and connect your Tower to the TB350 adapter via a 3.5mm cable.
NOTE: The use of high quality audio cables is recommended to avoid the introduction of
interference to the system.
Screen or interactive
white board

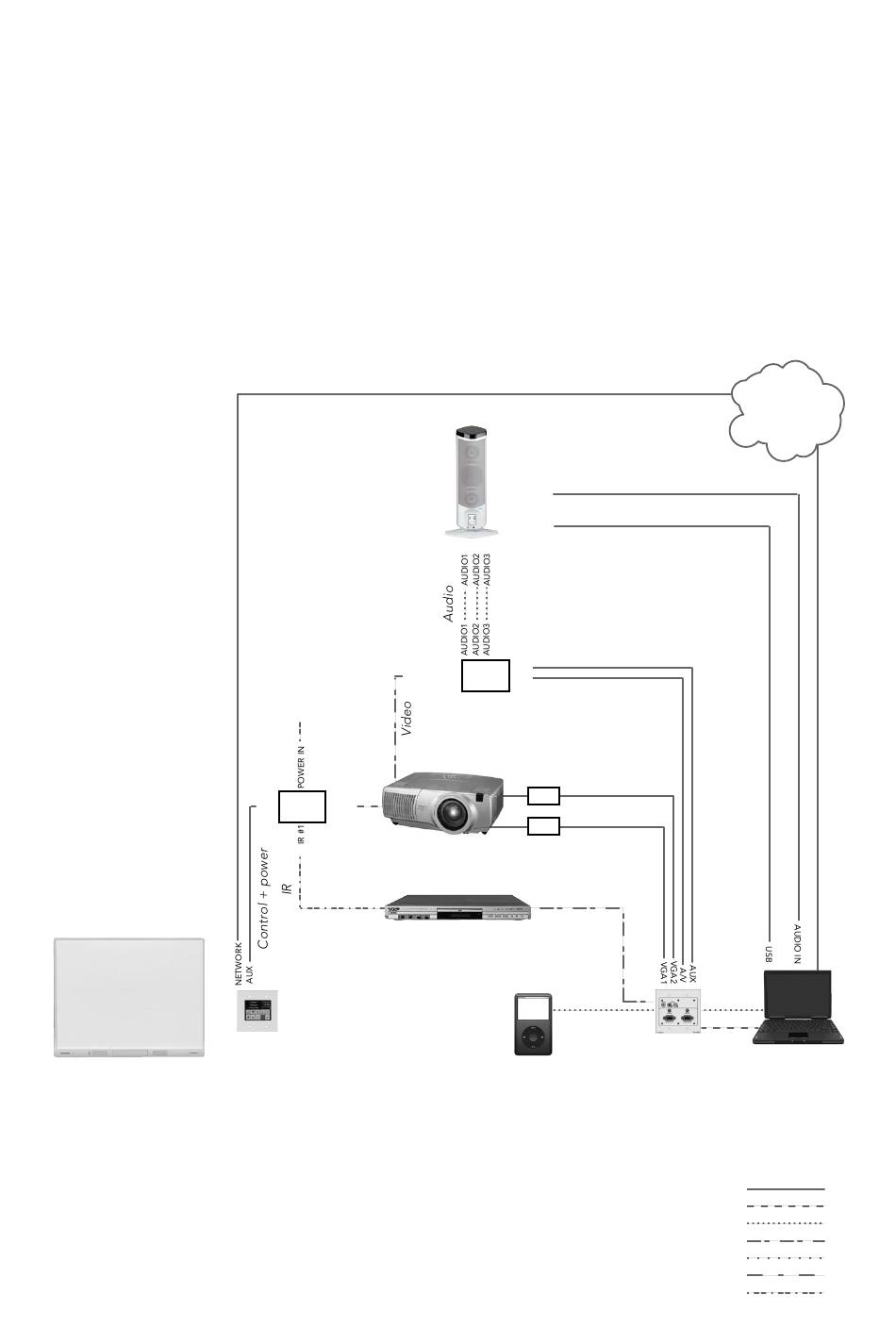

NOTE: This is a schematic illustration
intended to clarify the relationship of
components to each other. The location
of jacks shown here may not reflect their
true position on specific devices.
Power
TB12
AUX RS232
CB6000
Control
Panel
™ AV control system to manage projectors and other
™ , you'll connect your computer audio and
Juno
AUDIO OUT
COMPUTER
AUX
COMPOSITE
A/V
TB350
Projector TB225
DVD
Player
MP3 Player
22
Audio + Video
VGA
CP650
AV Connection
Wallplate
Cat 5 cable
Serial cable
Audio cable
RCA cable
Speaker cable
Sensor cable
Other cable
LAN
Teacher's
Computer
