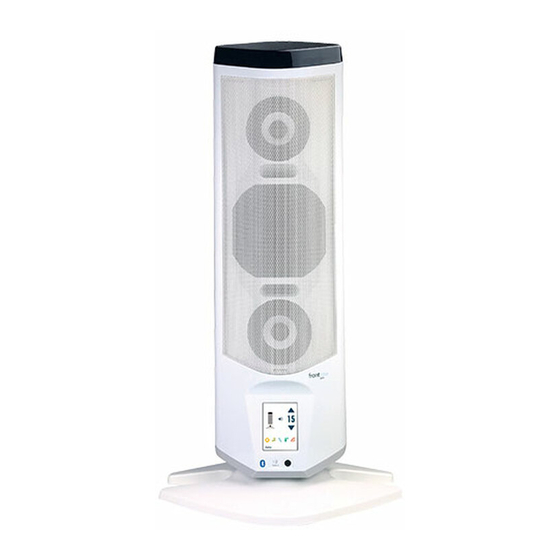

FrontRow Juno Installation Manual

Juno Bluetooth
Installation Guide
General Safety Precautions
• Disconnect all electronics from the Juno Tower during installation
of this module
• Do not install or use the module near water or heat sources
• Use only accessories specified by FrontRow
• Refer installation and service to qualified personnel
ESD Warning
The Juno Tower and/or expansion modules can be damaged
by electrostatic discharge (ESD). When handling, care must
be taken so that the devices are not damaged. Damage due
to inappropriate handling is not covered by the warranty.
The following precautions must be taken when installing the
expansion modules:
• Use a conductive wrist strap attached to a good earth ground.
• Always disconnect the power to the Juno from the power outlet.
• Always discharge yourself by touching the grounded bare metal
surface or approved anti-static mat before picking up
an ESD-sensitive electronic component.
• Use an anti-static mat to cover your work surface.
You will need the following items to install this module:
• #1 Phillips screwdriver
Installation

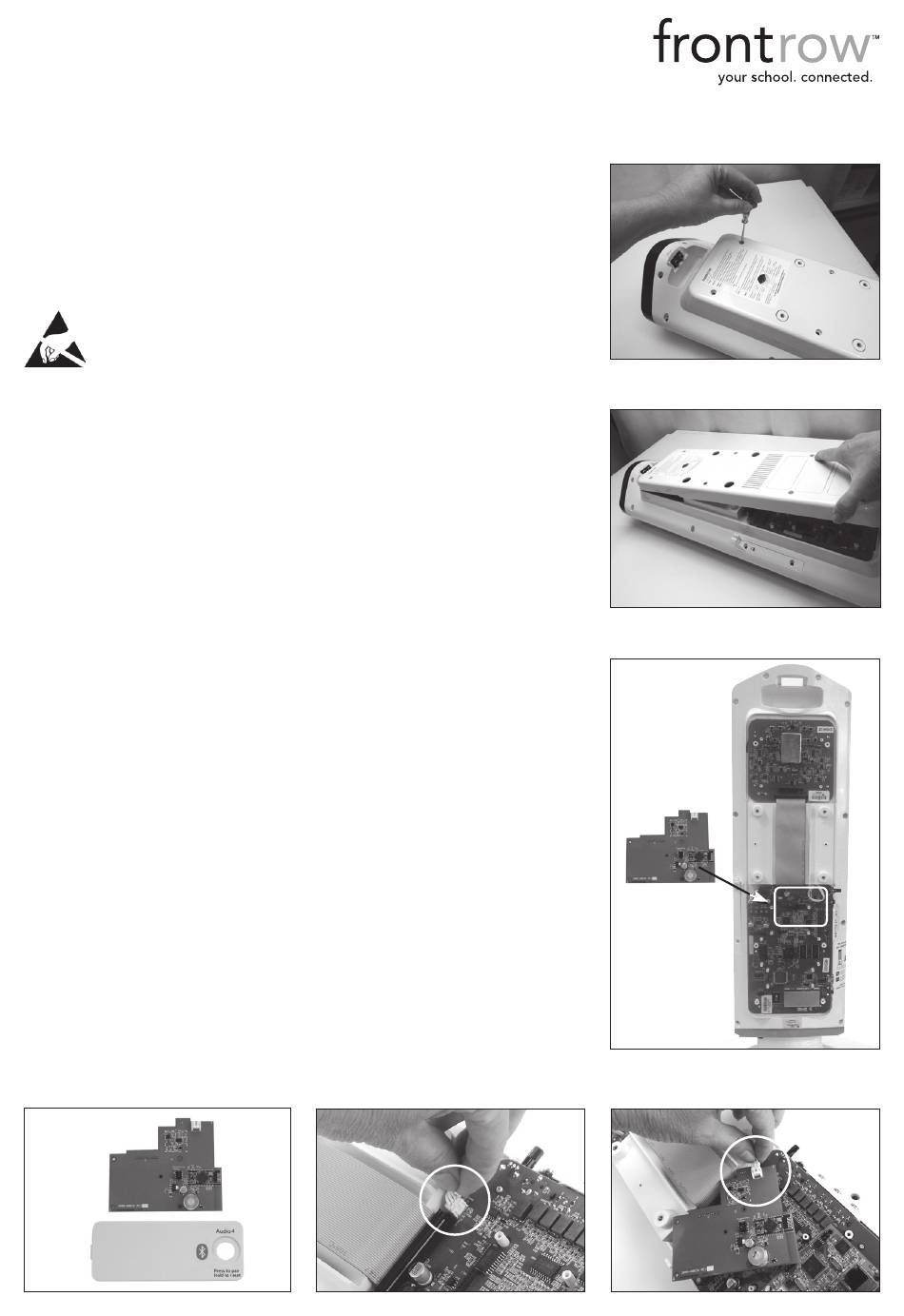

1. Unplug the Juno Tower from the power outlet
2. Lay the Juno Tower down on a flat surface with the back of the Tower
facing up. Remove the 8 screws that attach the back panel to the case
back and remove the back panel (See Images 1 & 2)
3. Locate the area on the lower circuit board where the module will
be installed. (See Image 3). Note that if you already have a
Juno Speaker Expansion module installed this will need to be
removed. You cannot use both the Speaker Expansion and the
Bluetooth module.
4. Remove the Bluetooth module and plastic cover from the packaging.
(See Image 4)
5. Unplug white connector from the main Tower PCB. (See Image 5)
6. Plug white connector into the connector on the Bluetooth module.
(See Image 6)
Image 4
Audio Receiver
®
Image 5
Image 1
Image 2
Image 3
Image 6
Installation instructions continued on back
