FrontRow 940TM User Manual
Receiver, pendant microphone, pass-around microphone, microphone charger
Hide thumbs
Also See for 940TM:
- Installer's manual (28 pages) ,
- User manual (27 pages) ,
- User manual (25 pages)
Subscribe to Our Youtube Channel
Related Manuals for FrontRow 940TM
Summary of Contents for FrontRow 940TM

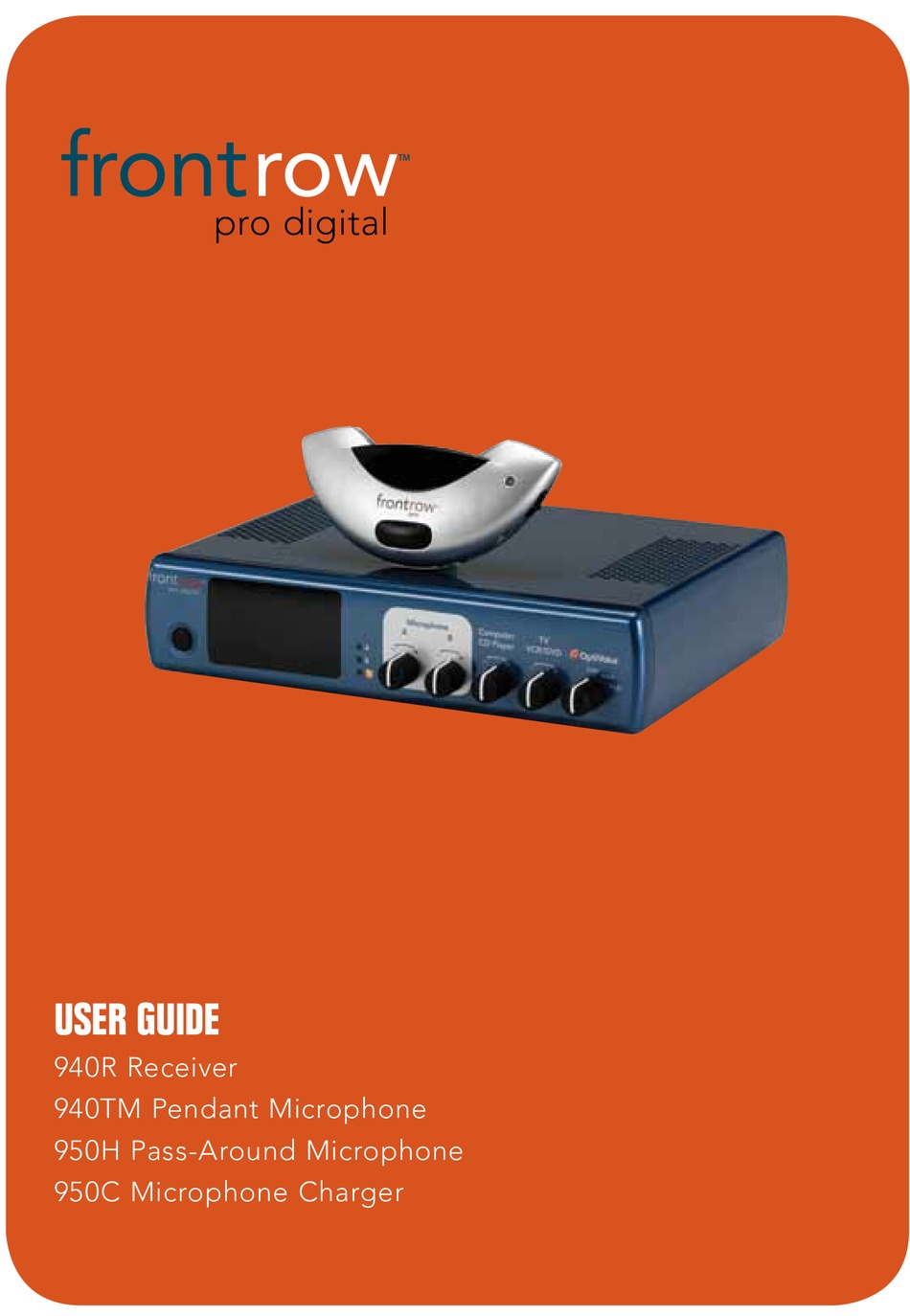

- Page 1 940R Receiver 940TM Pendant Microphone 950H Pass-Around Microphone 950C Microphone Charger...
-
Page 2: Table Of Contents
Regulatory ............22 The FrontRow Pro Digital is manufactured to conform to the most stringent European guidelines for consumer products (RoHS) –... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. The apparatus shall not be exposed to 14. Unplug this apparatus during lightning dripping or splashing and no objects storms or when unused for long periods filled with liquids, such as vases, shall be of time. placed on the apparatus. -
Page 4: Electrical Warnings
DO NOT disassemble the power sup- ELECTRICAL SAFETY ply. Return the apparatus to Phonic INFORMATION: Ear FrontRow for qualified service and repair if service or repair is required. PRECAUTIONS & SAFETY Incorrect reassembly may result in a risk RECOMMENDATIONS of electric shock or fire. -
Page 5: 950C Charger
No light = Pocket empty or improper battery Red = Charging Blinking red = Charge error Green = Charging complete Charge pocket for 940TM Pendant microphone (will not charge 930TM pendant microphone) 2-way indicator light for 940TM Pendant microphone No light = Pocket empty... -
Page 6: Chapter 2 Charger Setup
950C Charger Setup 1. Find the power plug that is appropriate for the power outlet style in your country 2. Slide power plug onto the power supply 3. Plug power supply into power outlet and into the back of the charging base 4. -
Page 7: 940Tm Pendant Microphone
(Connect a boom microphone) 9. Charge jack (When not using 950C charger) 10. On/off switch 11. Battery compartment (1) AA (LR6) NiMH rechargeable battery (FrontRow "silver sleeve", auto-sensing) 12. Charge contacts back 940TM only. 930TM is not supported by 950C charger. -
Page 8: Installing Battery And Charging
NOTE: If you forget to charge your microphone at night, you may use a standard AA (LR6) alka- line battery instead. Remember to remove the alkaline battery and replace it with a FrontRow "silver-sleeve", auto-sensing battery before charging the unit. - Page 9 5. To prolong the lifetime of the battery, the unit will enter a low-power "maintenance charge" mode after 14 hours of charging. The indicator light on the 940TM will blink red in the "maintenance charge" mode Charging with the 950C charger 1.
-
Page 10: Using
(included) in the Audio Out/headphone jack of the secondary audio source. Plug the other end of the adaptor cord to the Aux-In jack on the 940TM Pendant Microphone 8. Turn the secondary audio source on 9. Turn the 940TM Pendant Microphone on 10. -
Page 11: 950H Pass-Around Microphone
950H Pass-Around Microphone Features Back Front 1. Emitter diodes (Do not block) 2. 2-way indicator light Green = On and transmitting Blinking red = Low battery Red = Charging via 3.5mm charge input jack only No light = Charging via 950C charger 3. -
Page 12: Setting Channel, Installing Battery And Charging
"silver sleeve" auto-sensing battery supplied by FrontRow. Do not attempt to charge alkaline batteries separately. To ensure proper charging, always be sure that only FrontRow "silver sleeve" auto-sensing batteries are installed. - Page 13 950H Pass-Around Microphone Charging with the 2-unit charge cord 1. Plug the two-microphone charge cord into the back of the 940R receiver 2. Turn microphone off 3. Insert one of the charge cord plugs into the charge jack 4. The microphone indicator light should be red when charging.
-
Page 14: Chapter 8 Using Pass-Around Microphone
950H Pass-Around Microphone Using 1. Turn microphone on 2. Note indicator light Green = On and transmitting Blinking red = Low battery 3. Keep top of microphone approximately 3 - 4in. (7.5 – 10cm) from mouth when using as a hand-held microphone 4. - Page 15 950H Pass-Around Microphone Using (cont.) The 950H Pass-Around Microphone can be used to transmit audio from a secondary audio source (MP3 player, computer, portable radio/CD/tape player) to the receiver. 7. Plug one end of the audio adaptor cord (included) in the Audio Out/headphone jack of the secondary audio source.
-
Page 16: Chapter 9 Using A Second Transmitter
Using a Second Microphone Classroom 1 Your receiver is designed to receive two microphone signals at once. For example, two teachers (or a teacher and an aide) may each use a microphone. Or, one teacher can use a microphone and stu- dents can use a pass-around microphone. -
Page 17: 940R Pro Digital Receiver
940R Pro Digital Receiver Features front back 14 15 1. Power button 10. Transmitter charge output jack (Charges up to two microphones) 2. Internal infrared sensor 11. Infrared ceiling sensor input 3. Microphone A/B and feedback suppression status lights 12. Infrared wall sensor input 4. -
Page 18: Chapter 11 Activate Receiver And Transmitter
Have a second person adjust the volume to a comfortable level. Daily Use Your FrontRow Pro Digital has an energy-saving NOTE: When the 940R is in standby mode standby mode. The receiver will automatically the external sensor LED's will blink every go into standby mode in 10 minutes after you: two seconds. -
Page 19: Automatic Feedback Suppression And Optivoice
PMS 485 Red ™ The FrontRow Pro Digital features automatic feedback suppression. The Adapto platform analyzes the sound quality hundreds of times a second, looking for signs of feedback. When feedback is detected, it filters it out, allowing the teacher to have optimal volume settings AND complete freedom of movement around the classroom. -
Page 20: Connecting To Other Classroom Media
940R Pro Digital Receiver Connecting to other Classroom Media Your FrontRow Pro Digital can connect to other media to enhance the overall audio experi- ence in your classroom. Ideally, these connections were made during installation; however, they can easily be made after the unit is installed using the audio cords that came with the system or standard audio cords from your local electronics store. - Page 21 940R Pro Digital Receiver Connecting to other classroom media (cont.) Option 2 Some classrooms use a computer as the multi-media "hub", but it is connected to a TV instead of an LCD projector. They also occasionally use the TV/DVD/VCR as a stand alone media. For these classrooms, you may need to use both auxiliary audio input connections to the 940R.
-
Page 22: Auxiliary Output - Rebroadcasting To Personal Fm Receivers
940R Pro Digital Receiver Auxiliary Output - Rebroadcasting to Personal FM Receivers Allows rebroadcast of all voice and auxiliary audio directly to a hearing-impaired student's personal FM system. 1. Plug RCA cord into audio out port on back of Pro Digital receiver. Depending on the device you are connecting, match the type of the other end of the cord to the aux in on the transmitter (typically... -
Page 23: Chapter 15 Troubleshooting
(940TM only) • T he charger can charge only 950H and • V erify that you are not blocking either the 940TM microphones with charge contacts. emitters on the microphone or the sensors Refer to page 3, feature 12 to confirm that on receiver or mounted around the room your microphone has these contacts. -
Page 24: Chapter 16 Regulatory
FrontRow Pro Digital Receiver 940R Union Directive Directive FrontRow Pro Digital Transmitter 940TM 2004/108/EC EMC Directive and 2002/95 ROHS Directive. This product can be subject to interference at our operational frequency Tested to comply with bands of 2.3 and 2.8 MHz. - Page 25 © 2012 Phonic Ear Inc. Phonic Ear, FrontRow and the names of Phonic Ear and FrontRow products are trademarks or registered trademarks of Phonic Ear, Inc. in the U.S. and other countries. Product specifications and accessories subject to change without notice.
