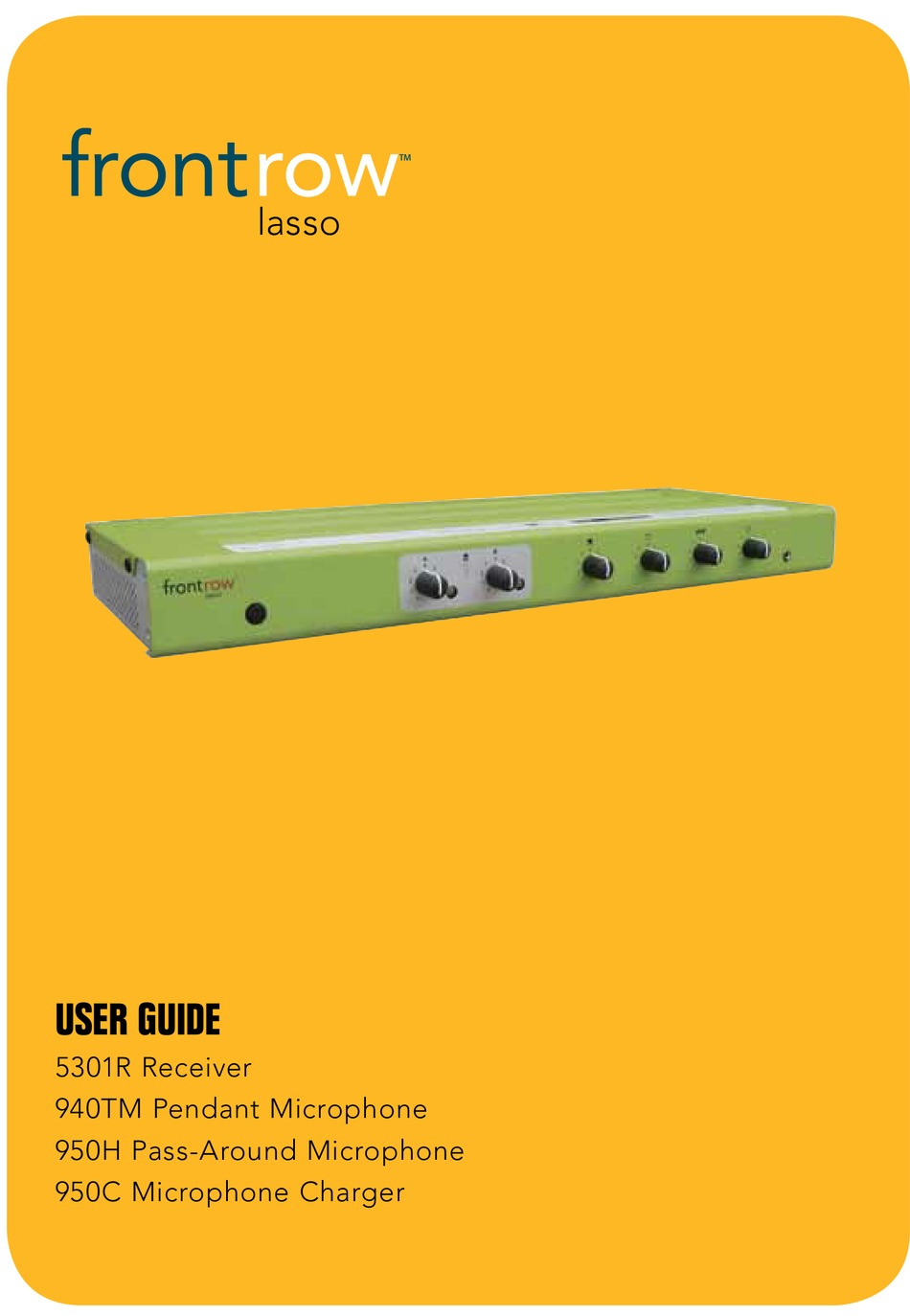

Page 1: User Guide
5301R Receiver 940TM Pendant Microphone 950H Pass-Around Microphone 950C Microphone Charger... -
Page 2: Table Of Contents
"silver sleeve" auto-sensing batteries are installed. Energy Smart saves money (and maybe the planet). Our products use significantly less energy – up to 63% less – than other systems. That makes FrontRow a smart choice for schools and the environment. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. The apparatus shall not be exposed to 14. Unplug this apparatus during lightning dripping or splashing and no objects storms or when unused for long periods filled with liquids, such as vases, shall be of time. placed on the apparatus. -
Page 4: Electrical Warnings
DO NOT disassemble the power sup- ELECTRICAL SAFETY ply. Return the apparatus to Phonic INFORMATION: Ear FrontRow for qualified service and repair if service or repair is required. PRECAUTIONS & SAFETY Incorrect reassembly may result in a risk RECOMMENDATIONS of electric shock or fire. -
Page 5: 950C Charger
950C Charger Features Charge pocket for 950H Pass-Around microphone 2-way indicator light for 950H Pass-Around microphone No light = Pocket empty or improper battery Red = Charging Blinking red = Charge error Green = Charging complete Charge pocket for 940TM Pendant microphone (will not charge 930TM pendant microphone) 2-way indicator light for 940TM... -
Page 6: Charger Setup
950C Charger Setup 1. Find the power plug that is appropriate for the power outlet style in your country 2. Slide power plug onto the power supply 3. Plug power supply into power outlet and into the back of the charging base 4. -
Page 7: 940Tm Pendant Microphone
(Connect a boom microphone) 9. Charge jack (When not using 950C charger) 10. On/off switch 11. Battery compartment (1) AA (LR6) NiMH rechargeable battery (FrontRow "silver sleeve", auto-sensing) 12. Charge contacts back 940TM only. 930TM is not supported by 950C charger. -
Page 8: Installing Battery And Charging
NOTE: If you forget to charge your microphone at night, you may use a standard AA (LR6) alka- line battery instead. Remember to remove the alkaline battery and replace it with a FrontRow "silver-sleeve", auto-sensing battery before charging the unit. - Page 9 If it is blinking red, you are attempting to charge an alkaline battery or the battery is damaged. Replace this battery with a FrontRow "silver sleeve" NiMH cell. If the light is off, ensure charger is properly connected to...
-
Page 10: Using
940TM Pendant Microphone Using 1. Place microphone around neck and con- nect clasp 2. Adjust neck straps to position microphone approximately 5in (13cm) from mouth 3. Set channel to A or B (whichever is not already in use) 4. Turn microphone on. Indicator light should be green 5. -
Page 11: 950H Pass-Around Microphone
950H Pass-Around Microphone Features Back Front 1. Emitter diodes (Do not block) 2. 2-way indicator light Green = On and transmitting Blinking red = Low battery Red = Charging via 3.5mm charge input jack only No light = Charging via 950C charger 3. -
Page 12: Setting Channel, Installing Battery And Charging
"silver sleeve" auto-sensing battery supplied by FrontRow. Do not attempt to charge alkaline batteries separately. To ensure proper charging, always be sure that only FrontRow "silver sleeve" auto-sensing batteries are installed. - Page 13 950H Pass-Around Microphone Charging with the 2-unit charge cord 1. Plug the two-microphone wall charger into a power outlet 2. Turn microphone off 3. Insert one of the charge cord plugs into the charge jack 4. The microphone indicator light should be red when charging.
-
Page 14: Chapter 8 Using Pass-Around Microphone
950H Pass-Around Microphone Using 1. Turn microphone on 2. Note indicator light Green = On and transmitting Blinking red = Low battery 3. Keep top of microphone approximately 3 - 4in. (7.5 – 10cm) from mouth when using as a hand-held microphone 4. - Page 15 950H Pass-Around Microphone Using (cont.) The 950H Pass-Around Microphone can be used to transmit audio from a secondary audio source (MP3 player, computer, portable radio/CD/tape player) to the receiver. 7. Plug one end of the audio adaptor cord (included) in the Audio Out/headphone jack of the secondary audio source.
-
Page 16: Chapter 9 Using A Second Transmitter
Using a Second Microphone Classroom 1 Your receiver is designed to receive two microphone signals at once. For example, two teachers (or a teacher and an aide) may each use a microphone. Or, one teacher can use a microphone and stu- dents can use a pass-around microphone. -
Page 17: 5301R Lasso Receiver
5301R Lasso Receiver Features front back 11 12 13 1. Power button 14. Audio Out jack (3.5mm) for podcasting & other 2. Microphone A volume control 15. Audio Out volume control 3. Microphone B volume control 16. Speaker terminals 4. Audio In volume control (Computer) 17. -
Page 18: Activate Receiver And Microphone
5301R Lasso Receiver Activate Receiver and Microphone 1. Press power button Green..Power On 2. Put microphone around neck and adjust strap so it is 5in. (13cm) from your mouth 3. Turn microphone on and check microphone A or B indicator light Green.. -
Page 19: Connecting To Other Classroom Media
5301R Lasso Receiver Connecting to other Classroom Media Your FrontRow Lasso can connect to other media to enhance the overall audio experience in your classroom. Ideally, these connections were made during installation; however, they can easily be made after the unit is installed using the audio cords that came with the system or standard audio cords from your local electronics store. - Page 20 Some classrooms use a computer as the multi-media "hub", but it is connected to a TV instead of an LCD projector. They also occasionally use the TV/DVD/VCR as a stand alone media. For these classrooms, you may need to use two auxiliary audio input connections to the 5301R. 5301R (back)
- Page 21 Many teachers have MP3 players, portable CD players or other devices that move around the classroom. To amplify audio from portable electronics, it may be most convenient to connect these as needed through the MP3 jack on the front of the 5301R. 5301R (front)
-
Page 22: Auxiliary Output - Rebroadcasting To Personal Fm Receivers
5301R Lasso Receiver Auxiliary Output - Rebroadcasting to Personal FM Receivers 5301R (back) Allows rebroadcast of all voice and auxiliary audio directly to a hearing-impaired student's personal FM system. 1. Plug 3.5mm cord into audio out port on back of Lasso receiver. Depending on the... -
Page 23: Chapter 14 Troubleshooting
• Recharge or replace the microphone batteries Check the battery and replace with a FrontRow "silver sleeve" rechargeable Feedback (squealing) battery. • Lower the Microphone A or B Volume control(s) on the receiver •... -
Page 24: Regulatory
FCC notes collection system designated for this purpose, regardless of whether you dispose of your The FrontRow Lasso active learning sys- waste at your local waste site or it is collected tem is approved by the FCC (Federal from your home. Please contact your local Communications Commission). - Page 25 © 2012 Phonic Ear Inc. Phonic Ear, FrontRow and the names of Phonic Ear and FrontRow products are trademarks or registered trademarks of Phonic Ear, Inc. in the U.S. and other countries. Product specifications and accessories subject to change without notice.
