Juno System Quick Setup Guide
1
Check the contents of your Juno system box against the parts listed below
.

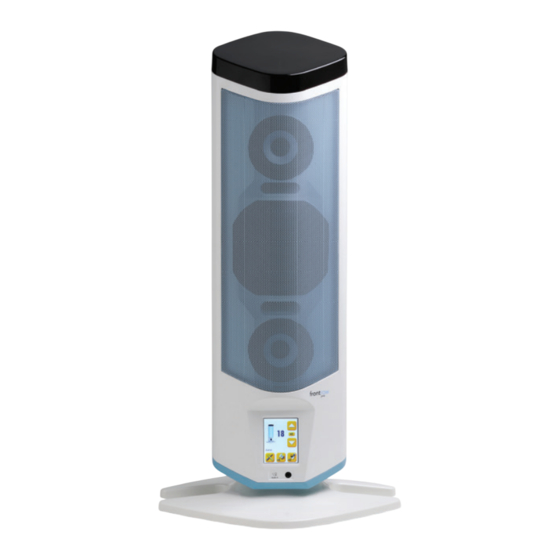

ITR-01 Juno Tower
Amplifier / Receiver
2
Install ITM-01 Teacher Pendant Microphone battery
.
1. Unscrew battery door on the back of the micro-
phone using the supplied Phillips screwdriver.
2. Locate the charge contacts on the battery and on
the microphone. See Image 1
3. Insert battery into compartment - battery contacts
first, then push the battery into place.
See Image 2
4. Replace battery door.
Charging microphone
Connect the USB cable to one of the Juno Tower's
charge ports and the other end to the charge port
on the microphone. See Image 3
NOTE: For best performance, charge battery
overnight before initial use.
3
Using ITM-01 Teacher Pendant Microphone battery
.
1. Place microphone around neck and connect clasp.
2. Adjust neck straps to position microphone approx-
imately 5in (14cm) from mouth. See Image 1
3. Press One-Touch button to wake microphone. Power
indicator should be green. See Image 2
NOTE: Your microphone will go into standby mode
(off) automatically after 10 minutes in mute mode or
10 minutes of silence. Press One-Touch button to wake.
4. Momentarily press One-Touch button to mute as
needed for private conversations. Mute indicator
light will turn red. See Image 2
5. Press and hold One-Touch button to issue a voice
command.
6. When the battery in your microphone gets low, the
battery indicator will flash red. See Image 2
ITM-01 Pendant
Microphone
Image 1
Image 3
Image 1
Remember to put your microphone in the charger stand at the end of the day.
Power supply
Lithium Ion
Battery
Aux-in cord
AC cable
Moisture
Charge
indicator
contacts
5in/14cm
1 meter micro
Phillips head
USB cable
screwdriver
Wall mounting
screw set
4 meter USB cable
Image 2
power indicator
mute
indicator
One-Touch
button
Image 2
battery
indicator
