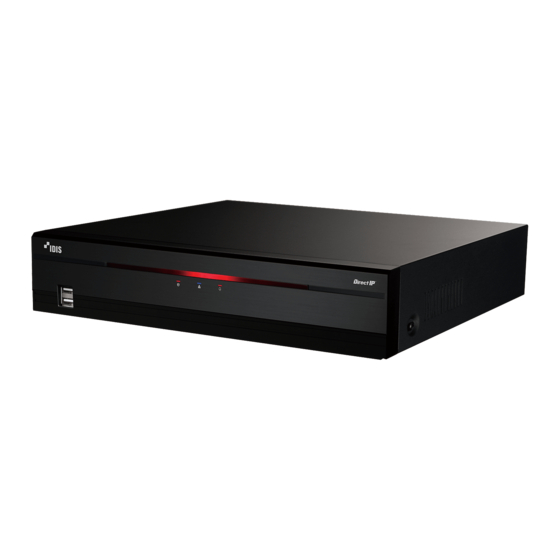

Idis DR-6100P Series Operation Manual
Hide thumbs Also See for DR-6100P Series:

Advertisement

Quick Links

Network
Video
Recorder
Operation Manual
DR-6100P Series
DR-4100P Series
DR-6200P Series
DR-4200P Series
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR-6100P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Idis DR-6100P Series

  • Page 1 Network Video Recorder Operation Manual DR-6100P Series DR-4100P Series DR-6200P Series DR-4200P Series Powered by...
  • Page 2 Before reading this manual This operation manual contains basic instructions on installing and using DirectIP™ Network Video Recorder, an IDIS product. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual 1. Read Instructions A. When the power-supply cord or the plug has been damaged. All the safety and operating instructions should be read before the appliance B. If liquid is spilled, or objects have fallen into the equipment. is operated.
  • Page 4 Before reading this manual Important Safeguards In-Text Symbol Type Description Caution Important information concerning a specific function. Note Useful information concerning a specific function. User’s Caution Statement Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
  • Page 5 © 2017 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice.
  • Page 6: Table Of Contents

    Table of Contents Part 1 - Getting Started ........9 Setup Wizard .
  • Page 7 System Setup ..............30 General .
  • Page 8 Part 4 - IDIS Web ........
  • Page 9: Part 1 - Getting Started

    Part 1 - Getting Started Quick Wizard This document covers the 8-, 16-, and 32-channel network video recorders. The NVRs are identical except for the number of cameras and alarms Select Quick Wizard. that can be connected and the number of cameras that can be displayed.
  • Page 10 Part 1 - Getting Started Choose the desired Recording Method and click – Recording resolutions used under each recording method and record video quality setting are as follows: Next. High Video Quality Standard Longer Recording Priority Profile Recording Time Priority Profile Profile Motion...
  • Page 11 Part 1 - Getting Started Select Network Configuration and then click Network Wizard Next. Select either Auto Configuration or Manual Configuration and then click Test to test the system’s After exiting from Quick Wizard, the network with current network configuration. Network Wizard will start automatically.
  • Page 12 NVR. Once registered, the name can be used to access the NVR directly from clients such as the IDIS Center. Check the name's availability to complete the registration process. The Finish button will then become activated.You will...
  • Page 13: Camera Registration

    Part 1 - Getting Started Camera Registration Camera Scan Button Once Network Setup Wizard is complete, the system will You can scan and search and register cameras that were automatically enter Camera Registration mode and scan not detected automatically or third party cameras. for cameras connected to the NVR.
  • Page 14 NVR. For more information about supported network devices and models, contact your retailer. • This system is optimized for combination with IDIS cameras. When registering other cameras, recording performance cannot be guaranteed and it can be restricted from several functions if the related video settings exceed the system performance.
  • Page 15 Part 1 - Getting Started Select Scan to commence scanning. • When several NVRs exist in the same network, only one of NVRs has to be run as a DHCP Only cameras that are connected to the NVR via VIDEO server.
  • Page 16 Part 1 - Getting Started Go To Camera Camera list Moves the focus automatically to the camera using the By using the camera information file, .csv, the user can MAC address of camera in the camera list. register the cameras easily. Auto Detection Activated in Live mode.
  • Page 17: Camera View Buttons

    ● Authentication: Enter the necessary camera login info. This option is inactive for DirectIP™ / IDIS cameras because they do not require logins. This option is inactive for IDIS protocol only if the passoword is set.
  • Page 18: Video Display Area

    Part 1 - Getting Started Video Display Area 3 Screen Position/Registration Info Flashes in orange if the camera has not been registered to the NVR. Left-click on the video display area to toggle between split screen and single screen modes. •...
  • Page 19: Apply/Cancel Buttons

    Part 1 - Getting Started Apply/Cancel Buttons Diagnosis Process While in Camera Registration mode, select Apply When the camera is registered to the NVR, Self- to register all changes. When selecting Apply, the diagnosis runs automatically for the new registered and following message will be displayed.
  • Page 20: Camera Registration Mode

    Part 1 - Getting Started Camera Registration Mode Login While in Live mode, right-click and select Camera Configuring the NVR’s settings and accessing its Registration. searching and other functions require an authorized user login. Bring up the Live menu and either press the SETUP button on the remote control or click on (Login) using the mouse.
  • Page 21 Part 1 - Getting Started Find Password If you do not know the password, select FIND PW . You can set a new password. Enter a user, registered email and then select Get Verification Code. Enter Verification Code and select OK. •...
  • Page 22: Live Menu

    Part 1 - Getting Started Live Mode Live Menu Press the Setup button while in Live mode to bring up the Live menu on the top of the screen. Press Setup once more to hide the menu. Use the Arrow buttons on the front panel of the NVR or the remote control to select the menu options.
  • Page 23 Part 1 - Getting Started Activates/deactivates Panic Recording. 9 Select Camera Displays the selected camera in a single screen 8 Sequence format. Initiates Sequence in the same manner as pressing the SEQUENCE button while in Live mode. To exit, 0 Search Mode select Sequence once more or press the SEQUENCE ●...
  • Page 24: Zoom

    Part 1 - Getting Started Zoom You can also change the direction by dragging on the mouse. Also, it’s possible to use the mouse wheel to zoom in/ Press the ZOOM button on the remote control or right- out. click on the mouse to select a channel you wish to zoom in on while in live mode or time-lapse mode.
  • Page 25 Part 1 - Getting Started Setting Up a PTZ Preset Advanced Settings While in PTZ mode, select the VIEW button on the In PTZ mode, selecting a camera and then clicking Menu remote control to display the Set Preset window and button loads the Advanced PTZ screen as shown below.
  • Page 26: Event Monitoring

    Part 1 - Getting Started Context Menu Access • The exact PTZ protocol supported by the camera must be specified in order to use the NVR's PTZ controls. While in Live mode, press the remote control’s button and then the Menu button to display the Context •...
  • Page 27: Edit Group

    Part 1 - Getting Started Video Recording Edit Group Video recording will only take place if all the connections Edit Group lets you customize split screen pages in both are made correctly as per information contained in Part Live and Search modes. 2 of this operation manual.
  • Page 28: Audio Recording

    Part 1 - Getting Started Audio Recording Remote Control Buttons during Playback If the Record Audio option under Record Setup > General has been enabled the camera will record audio along with video. For more information, refer to the Audio on page 50, Record Setup on page 51. Camera Button: Displays the selected recording in full screen.
  • Page 29: Part 2 - Configuration

    Part 2 - Configuration Menu Use Use the remote control’s arrow buttons to select an option and then press the remote control’s $ button or left-click on the option using the mouse. Information contained in this section (Menu Use) applies to all other instructions found throughout Part Change the setting and then select Apply or OK to 3 - Configuration.
  • Page 30: Batch Assignment

    Part 2 - Configuration System Setup Batch Assignment Refer to the Menu Use on page 29 for basic Certain table-format menus such as the shown in the information on using the Setup menus. Camera Setup on page 40 allow you to change the title value.
  • Page 31 Part 2 - Configuration ● Setup: Exports current NVR settings or imports existing settings. If the NetFS feature is in use, you can export or import NVR settings in the registered FTP site. ● Import: Decide whether to import network settings as well.
  • Page 32: Date/Time

    Part 2 - Configuration Date/Time • If you have configured the DNS Server setting under Network - WAN, you can enter the time server's domain name instead of its IP address. • Selecting Run as Server sets the current NVR as a time server for other NVRs within the system.
  • Page 33: User

    Part 2 - Configuration User Select a group for the user and then enter a password. The password can be up to 16 characters in length and may include letters, symbols, and Use this option to register users and assign permissions. numbers.
  • Page 34 Part 2 - Configuration Group Permissions May change the System Time system's date and time Change settings. May shutdown the May clear data stored System Shutdown system from the Data Clear in the system. system menu. May configure PTZ May upgrade the PTZ Setup settings.
  • Page 35: Security

    NVR for security when proceeding settings, search and upgrade. When you select Registerastion, the following message will appear. • 2FA device registration is supported only via IDIS Mobile app. • The administrator account is required to configure this option.
  • Page 36: Storage

    Part 2 - Configuration Storage Mirror The NVR suppports function that records the same Use this option to configure storage settings. data on the two disks at the same time. You can set up mirroring by selecting Storage in the System menu and then selecting Setup in the Mirror.
  • Page 37: Monitoring

    Part 2 - Configuration – Stop: Once mirroring starts, you can stop it by Monitoring selecting Stop option and then designating disks to delete. Once mirroring is stopped, all existing Use this option to configure Monitoring settings. data on the disk will be erased. When mirroirng is stopped, the deleted disk will be set to NOT Used.
  • Page 38 Part 2 - Configuration Monitoring Options Monitors disks that support Disk S.M.A.R.T. and notifies the user if a S.M.A.R.T. disk error is detected. Define monitoring times. If self- diagnosis is not performed on a Notifies the user when the fan inside System Fan Error regular basis, the system will assume...
  • Page 39: Self-Diagnosis

    Part 2 - Configuration Self-Diagnosis Once Run the failover have made to the camera, the camera will reboot automatically. Use this option to configure self-diagnostic settings. This feature is also supported when connected to the NVR from a remote program. Once you have run failover on the camera, the camera will reboot automatically.
  • Page 40: Camera Setup

    Part 2 - Configuration Camera Setup Device Scan Scan the device under Registration - Scan. Refer to the Menu Use on page 29 for basic information on using the Setup menus. Registration You can register cameras at remote locales. By selecting a number from the list, you can move the camera up or down the list using the mouse wheel to reorder its position.
  • Page 41 ● Address: Displays the scanned camera’s IP address. device. ● Model: Indicates the camera model. • For IDIS cameras, a user and password may not be required. ● Protocol: Indiscates the scanned camera’s protocol. ● Name: Displays the scanned camera’s IP name.
  • Page 42: General

    Part 2 - Configuration General Advanced Setup Configure security and other advanced camera settings. Enable/disable the covert view and rename cameras. ● Video: Adjust the camera image sensor settings such as white balance and exposure. Configuration options ● Title: Edit the camera’s name. may differ depending on the camera model.
  • Page 43 Part 2 - Configuration speed. ● Set: Choose a preset number and then enter a name. This saves the current preset under the specified preset number and name. ● Go to: Select a preset from the list and then click Go to to move the camera to the selected preset position.
  • Page 44 Part 2 - Configuration – Function: Indicates the order of the function in the tour sequence. – Dwell Time (sec.): Specify how long to perform the selected function for. – Speed: Specify the preset speed. ● Run: Select a tour profile and then click Run to test it. ●...
  • Page 45 Part 2 - Configuration Privacy Masking Options Image Sensor Options Select Name to rename the privacy masking area. Select icon to delete the existing privacy masking area. Select Privacy Masking Setup to display additional privacy masking area options. You can drag on the area with the mouse to resize it or add up to 16 different ●...
  • Page 46 Part 2 - Configuration – Schedule: Set up the IR Mode schedule. IR ● IR Strength: Adjust the IR LED’s brightness level. Mode is disabled for all days and times that are Select a brightness level manually between 0% designated as Daytime in the schedule and is (darkest) and 100% (brightest).
  • Page 47 Part 2 - Configuration White Balance Options Exposure Options ● Preset: Use preconfigured white balance settings. ● AE Target Gain: Specify exposure compensation’s – Auto: Allow the system to adjust the white target gain. Exposure is compensated automatically balance automatically. The system will assess the based on the specified target gain.
  • Page 48 Part 2 - Configuration ● Shutter Speed Control: Adjust Shutter Speed. This View Options option is available only when Anti-Flicker and Slow Shutter are both set to Off. – Auto: The system will assess the lighting conditions and adjust the shutter speed automatically. –...
  • Page 49: Stream

    Part 2 - Configuration Stream Miscellaneous Configure the camera’s live and recording resolution, encode, picture quality, transfer speed, and ips speed settings. ● Camera Channels: It’s possible to configure a unique video profile for each camera. ● Image Stabilizer: Activate Image Stabilizer. The ●...
  • Page 50: Audio

    Part 2 - Configuration Audio SD Card Configure audio recording settings for all cameras If connection between the camera and NVR fails, the simultaneously. video will be recorded on SD memory card of the camera. When the connection is recovered again, the recorded video on SD memory card will be recorded on the NVR.
  • Page 51: Upgrade

    Part 2 - Configuration Record Setup Upgrade Refer to the Menu Use on page 29 for basic When using NetFS, select Firmware Upgrade. You can information on using the Setup menus. select or USB port or NetFS. If not, you can only select USB port.
  • Page 52: Schedule

    Part 2 - Configuration Schedule older than as specified under Recycle mode. • If the recording stored on the disk is shorter than the duration specified under Limit Time-Lapse Recording, the older of Event Recording or Time Recording data is deleted first. •...
  • Page 53 Part 2 - Configuration Simple Mode Options Advanced Mode Options ● Mode: Select No Record, Time, Event, or Time & Select to configure event types and video profiles. Event. ● Type: Event-specific and time recording icons are as follows: Unless the Panic Record button is Time Lapse pressed, no recording will take place Audio Detection...
  • Page 54: Pre-Event

    Part 2 - Configuration Pre-Event Smart Failover When the connection is recovered again, Smart Failover When an event occurs, enabling this option includes Service enables the data recorded on SD memory card the specified duration prior to the event in the event- to record on NVR.
  • Page 55: Event Setup

    Part 2 - Configuration Event Setup Use the remote control’s arrow buttons to move the block selection window up, down, left, and right. The selection window consists of 8 blocks per row. Select/ Refer to the Menu Use on page 29 for basic deselect individual blocks using the Camera buttons.
  • Page 56 Part 2 - Configuration ● Min. Blocks: Motion needs to be detected in more ● Ignoring Interval: The system does not produce than the specified number of blocks in order to event log entries or issue remote notifications trigger a Motion Detection event. You may select a regarding motion detected for the time specified value between 1 and the number of blocks selected after the initial motion was detected.
  • Page 57 Part 2 - Configuration Trip Zone – Select: Confirm the block selection in the selection window. – Clear: Clear the block selection in the selection ● No.: Select which cameras to apply Trip Zone to. window. ● Sensitivity: Set daytime and nighttime sensitivity –...
  • Page 58 Part 2 - Configuration ● Actions: Specify which actions to take when Trip Zone Tampering is detected. – Record: Specify which cameras to begin linked recording on when an event occurs. If the schedule is set to Event or Time & Event mode, the selected cameras will begin linked recording when an event occurs.
  • Page 59: Alarm-In

    Part 2 - Configuration Alarm-In Video Loss ● Activation Time: Specify how long video loss has to last in order for it to be considered as an event. ● No.: Enable / disable alarm-ins. When the video loss is not detected for the specified duration of time, it will not be considered as an event.
  • Page 60: Audio Detection

    Part 2 - Configuration Audio Detection Recording Fail ● Activation Time: Specify how long recording fail has to last in order for it to be considered as an ● No.: Select which cameras to apply Audio Detection event. When the recording fail is not detected for the specified duration of time, it will not be considered as ●...
  • Page 61: Text-In

    Part 2 - Configuration Text-In ● Line Delimiter: Designate a string to mark the end of a line. You can enter control strings by selecting and then entering ^, followed by a letter. For example, Carriage Return is ^M and Line Feed (new line) is ^J. ●...
  • Page 62: Camera System

    Part 2 - Configuration Camera System Face Detection The event occurs when the fan has stopped in the fan When face detection event occurs in the selected mounted camera. camera, the area that the face is detected displays on the screen. ●...
  • Page 63: Eventupload

    Part 2 - Configuration EventUpload ● Ignoring Interval: The system does not produce event log entries or issue remote notifications regarding face detected for the time specified Refer to Menu Use on page 29 for basic information after the initial motion was detected. Set the value on using the Setup menus.
  • Page 64: Ftp

    Part 2 - Configuration FTP site. ● Site Information: Displays information for the FTP site. • For the FTP notification to work properly, the related settings should be configured as follows: Network menu - NetFS tab - Use setting - Event menu - Actions - EventUpload setting •...
  • Page 65: Device Setup

    Part 2 - Configuration Device Setup Remote Control Refer to the Menu Use on page 29 for basic information on using the Setup menus. Alarm-Out ● Port: Select None, RS232 or RS485. Click the Setup button and then select the correct Baud Rate, Parity, Data Bits and Stop Bits for the device you are connecting to the NVR.
  • Page 66: Network Setup

    OpenSSL Project for use in Open SSL Toolkit (http:// www.openssl.org/). ● IDIS Web: If you wish to use IDIS Web, select IDIS Web - Use IDIS Web Service. Select IDIS Web - IDIS Web Port and choose a port number between 1024 and 65535.
  • Page 67 Part 2 - Configuration Function Press the F4 or PageUp or PageDown F4 or key to toggle between different Press the ← to move to the left in the PaceUP/ display formats. This is the same as menu. This is the same as pressing the ←...
  • Page 68 Part 2 - Configuration ● Ping Test: Select to test the current WAN settings you made. Designate the IP address type as Manual or DHCP. Manual Enter the IP address of the NVR. Set Type to Manual. Adjust the frequency of the ping test. Manual lets you configure related settings manually.
  • Page 69: Fen

    FEN Server. • If the FEN name contains the #, \, and/or % symbol, it might not be able to connect to the NVR from the IDIS Web program. ● FEN Server: Enter the FEN server’s IP address or domain name.
  • Page 70: Netfs

    Part 2 - Configuration NetFS ● Use: Select the usage for the NetFS feature. – N/A : Disables the NetFS feature. – ALL: Enables the NetFS feature. This allows you to register NetFS sites for the following – Upgrade: Allows you to use the upgrade file that functions: was uploaded to the NetFS site.
  • Page 71: Rtsp

    Part 2 - Configuration Notification Setup RTSP RTSP service allows you to monitor real-time using the Real-Time Streaming Protocol. Schedule Select the + icon at the lower left corner of the screen to add a notification schedule. ● RTSP Port: Set the port number of the RTSP server obtained from your system administrator.
  • Page 72: Callback

    Part 2 - Configuration...
  • Page 73: Sns

    Part 2 - Configuration SMTP Setup Select SMTP Setup at the bottom right corner of the screen to configure an SMTP server. This option enables the NVR to send out SNS messages. Select the SMTP server Type. Enter the SMTP Server’s IP address or domain name and then configure the Port and Sender settings.
  • Page 74: Push

    Part 2 - Configuration Display Setup Push Refer to the Menu Use on page 29 for basic Configure Push settings. information on using the Setup menus. Show OSD (On Screen Display) information on the bottom of the screen. Select Push to use Push feature. The Push feature sends out event-related messages to mobile phone.
  • Page 75: Main Monitor

    Part 2 - Configuration Status Setup Main Monitor Refer to the Menu Use on page 29 for basic Configure monitor-related settings. information on using the Setup menus. Event This screen displays an overview of all events. When an event occurs, the corresponding channel flashes for 5 seconds.
  • Page 76: Storage

    Part 2 - Configuration ● Panic Record: Displays event status based on current Storage Panic Record status. ● Check Recording: Displays event status based on Indicates each disk's status. System Monitoring settings. For more information, refer to the Monitoring on page 37. ●...
  • Page 77: Network

    Part 2 - Configuration Network A disk that has never Formatted been used before. This page provides a complete overview of the network ● Disk performing status in real-time. normally. ● If the HDD is partially Good damaged, indicates the bad sector Disk Bad percentage.
  • Page 78 Part 2 - Configuration Indicates network connection indicates the camera is statuses (connected, connecting, connected. indicates disconnected, and connection Camera the camera is not connected. Network error) using following lines: Connection Clicking the image displays Connection status information of the device Info connected to the NVR.
  • Page 79: Part 3 - Search

    Part 3 - Search Time-Lapse Search While in Live mode, select the Search Mode icon and select Time-Laspe Search or Event Log Search or Sumnail Search. When using Use 2FA, you can access the search menu only after the mobile device on NVR must be authenticated. For more information on 2FA function, refer to the Use 2FA on page 35.
  • Page 80 Part 3 - Search The Control Area consists of Top, Center, Right, Bottom, and Playback. 1 Top: Activates top Search menu. Use the arrow buttons to select an option. 2 Center: Activates the middle screen section. Use the arrow buttons to select a camera. 3 Right: Activates the control buttons on the right.
  • Page 81 Part 3 - Search Search Menu CAM3 4 5 6 1 Layout Used to change the screen layout to single screen, corridor format, 2x2,1+5, 1+7, 3x3 , 4x4, 5x5, or 6x6. In order to use the Corridor Format feature, Corridor Format (Display Setup - Main monitor - Use Corridor Format) must first be enabled.
  • Page 82 Part 3 - Search corresponding video recording. 1 Bookmark Select the icon to add a bookmark to the current playback position. Select a bookmark from the Bookmark setup window on the right side of the Time-Lapse Search mode screen to move to the registered playback position.
  • Page 83: Context Menu

    Part 3 - Search Context Menu which is not shown can be checked in the minimum size of Time-Lapse search window. Select (zoom-in) to compose recording data Select the Menu button or right-click on the Camera in 1-minute segments and select (zoom-out) screen to access the context menu.
  • Page 84: Text-In Search

    Part 3 - Search Text-In Search Select Text-In Search from the Search menu to bring up the Text-In Search window. ● Select First under From and Last under To to search the recording from start to finish. Alternatively, you can uncheck the First and Last options and specify the search time frame manually.
  • Page 85: Clip Copy

    2GB in size produces multiple files that are up to 2GB in size, each. • Clip Copy files can be played back on Windows systems. For more information, refer to the IDIS ● Channels: Specify which channel to save the Center operation manual.
  • Page 86: Print

    Part 3 - Search Event Log Search Print Select Search Mode > Event Log Search to bring up Print the current image. the Event Log Search window. While in Search Mode, select Pause to pause playback. Select Print from the Search menu to open up the Print Setup window.
  • Page 87: Thumbnail Search

    Part 3 - Search Thumbnail Search ● Use event filters to include/exclude specific system events such as Panic Record, Check Recording, Check Alarm-In, Disk Almost Full, Disk Bad, Disk Select Search Mode > Thumbnail Search to bring up Temperature, Disk S.M.A.R.T., Fan Error, eSATA the thumbnail Search window.
  • Page 88: Overlapped Recording Search

    Part 3 - Search Overlapped Recording Search If the system’s clock is changed to a point in the past, overlapping recordings may be produced. Overlapped recordings have to be searched in segments. For example, making a recording from 1 o’clock to 5 o’clock, changing the system’s clock at 5 o’clock to 3 o’clock, and then continuing to record until 6 o’clock produces two recordings that overlap between 3 o’clock...
  • Page 89: Part 4 - Idis Web

    Part 4 - IDIS Web IDIS Web is a program that allows you to view and search video from remote locations over the Internet and can be accessed on a regular web browser such as Internet Explorer. System requirements for running IDIS Web are as follows: ●...
  • Page 90 IDIS Web program. • If running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. (Tools → Internet Options →...
  • Page 91: Web Live Mode

    Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. Displays the current time. Select the desired mode. Changing the mode places the selected camera in the first cell of the layout that will be changed.
  • Page 92 Part 4 - IDIS Web Used to control a PTZ camera at a remote location. Used to adjust live video quality. Controls remote alarm out devices. Use the arrow buttons to navigate to the previous/next alarm group. Event status window at the bottom of the screen displays a list of events detected at remote locales.
  • Page 93: Web Search Mode

    & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. Displays time information of the video recording from the remote NVR. Select the desired mode. Click to print the current video screen using a printer connected to the computer.
  • Page 94 Part 4 - IDIS Web Select the camera you wish to search. Use the arrow buttons to navigate to the previous/next camera group. Zoom in or out on the video. Adjust image brightness. Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images.
  • Page 95 Part 4 - IDIS Web Select a camera from the screen and right-click to bring up the pop-up menu. ● Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.
  • Page 96: Part 5 - Appendix

    PTZ Control Recording Alarm-In Record Setup Alarm-Out Audio Recording Search Stream Camera Registration Clip Copy Text-In Text-In Search Event Monitoring Timelapse Mode 69, 71 Upgrade IDIS Web 89, 96 Video-Analytics Live Mode Wizard Login Motion Search Mouse Panic Recording Pre-Event V3.4...
  • Page 97 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...

This manual is also suitable for:

Dr-4100p seriesDr-6200p seriesDr-4200p series
