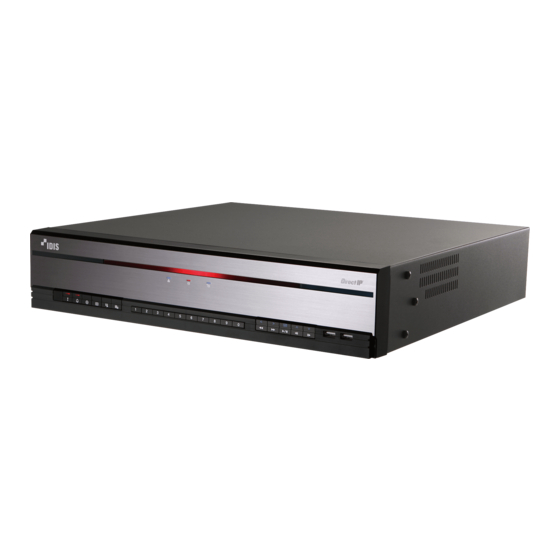

- Page 1 Network Video Recorder Installation Manual DR-6100P Series DR-4100P Series DR-6200P Series DR-4200P Series Powered by...
- Page 2 Before reading this manual This manual contains basic instructions on installing and using DirectIP™ Network Video Recorder, an IDIS product. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Important Safeguards 1. Read Instructions B. If liquid is spilled, or objects have fallen into the equipment. All the safety and operating instructions should be read before the appliance C. If the equipment has been exposed to rain or water. is operated.
- Page 4 Before reading this manual In-Text Symbol Type Description Caution Important information concerning a specific function. Note Useful information concerning a specific function. User’s Caution Statement Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
- Page 5 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice.
-
Page 6: Table Of Contents
Table of Contents Part 1 – Introduction ......... 7 Product Features . -
Page 7: Product Features
Part 1 – Introduction Product Features This is a DirectIP™-enabled video recorder that supports surveillance, recording, and playback of video from network cameras (or video encoders). This NVR (Network Video Recorder) unit offers the following features: ● Real-time 8/16/32-channel DirectIP™ network surveillance ●... -
Page 8: Part 1 - Introduction
Part 1 – Introduction This document covers the 8-, 16- and 32-channel network video recorders. The NVRs are identical except for the number of cameras and alarms that can be connected and the number of cameras that can be displayed. For simplicity, the illustrations and descriptions in this document refer to the 32-channel model. -
Page 9: Accessories
Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included. Network Video Recorder Power Cable Quick Guide Manual and IDIS Center Program CD Optical USB Mouse IR Remote Control Assembly Screws for Adding Hard... -
Page 10: Overview
Part 1 – Introduction Overview Front Panel 1 2 3 4 5 6 Panic Recording Button Alarm Button PTZ Button Layout Button Arrow and Playback Search Mode Button Menu Button Camera Buttons Control Buttons LEDs USB Ports • Some buttons have more than one function. •... - Page 11 Part 1 – Introduction 1 Panic Recording Button 6 Menu Button Pressing Panic Recording Pressing the Menu button displays the button while in Live mode icon and commences recording irrespective of the displays the Live menu. current schedule. Pressing the Menu button while in Search Press the button again to deactivate Panic Recording mode displays the Search menu on the top of the...
- Page 12 Part 1 – Introduction 8 Arrow and Playback Control Buttons 9 LEDs ● Power LED: Lights up while the main unit is in These buttons are used to select menus and options. operation. Used to select options or to ● Network LED: Flashes when the main unit is Enter ($) register data entries.
- Page 13 Part 1 – Introduction Connections on the Front Panel IR Remote Control Flash Memory Mouse USB HDD...
-
Page 14: Rear Panel
Alarm Connection Ports RS-485 Port RS-232 Port Network Port Video In / Ext. Port Video In / PoE Ports Power In Port Vent DR-6100P and DR-4100P Series are marked with alphabet A~H instead of numbers 1~8 in Video In / PoE Ports. -
Page 15: Rear Panel Connections
NVR, video may not be displayed eSATA smoothly in a remote program. NETWORK • DR-6100P and DR-4100P Series are marked with alphabet A~H instead of numbers 1~8. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. CAUTION... - Page 16 TRIC SHOCK. ACK). SIDE. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. CAUTION DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK REFER SERVICING TO QUALIFIED DO NOT OPEN Part 1 – Introduction SERVICE PERSONNEL. VIDEO IN VIDEO IN / PoE 100-240V~...
- Page 17 Part 1 – Introduction ● G (Ground) Power Cable Connection Connect alarm in or out's ground cable to the G Connect the power cable to this port. This NVR does not connector. feature a separate power on/off button and will turn on the moment power is supplied.
- Page 18 Microphone Speaker VGA Monitor Sensor Network eSATA Storage HDMI Monitor Camera Device Network Video Encoder DirectIP™ Gigabit Analog PoE Switch Camera Network IDIS Center Camera Remote Monitoring Keyboard Alarm Power This connection diagram is for the DR-6100P and DR-6200P Series.
-
Page 19: Remote Control
Part 1 – Introduction Remote Control ID Button PANIC Button Camera Buttons STATUS Button LAYOUT Button PTZ Control Buttons REGISTER MODE Button THUMBNAIL Button CALENDAR Button KEYLOCK Button SETUP Button FREEZE Button LOG Button Enter Button Arrow Buttons ALARM Button SEQUENCE Button &... - Page 20 Part 1 – Introduction 1 ID Button 7 REGISTER MODE Button Used to assign remote control ID values. Used in Live mode to access Camera Registration mode. No additional remote control assignment is necessary if the system's ID is 0. If the system's ID is a number 8 THUMBNAIL Button between 1 and 99, however, you will need to press the Used in Playback mode to access Thumbnail Search...
- Page 21 Part 1 – Introduction $ Enter Button b MENU Button Pressing the MENU button while in Live mode Used to make menu option selections and register data entries. In addition, pressing this button while displays the Live menu. Alternatively, pressing the a camera screen is selected by pressing the Menu button while in Time-lapse Search mode displays the button in Live or Playback mode displays the Camera...
-
Page 22: Part 2 - Appendix
Part 2 - Appendix System Log Types Boot Up Panic On System Shutdown Panic Off Restart Clear All Data Upgrade Success Clear Disk Upgrade Error Format Disk Power Failure Disk Full Time Changed Auto Deletion Time Zone Change Search Begin Time Sync. -
Page 23: Error Code Types
Part 2 - Appendix Error Code Types Upgrade Error Codes Type Type Unknown Error Remote Network Error Incorrect File Version No Remote Upgrade Permission Incorrect OS Version Remote Upgrade File Save Failure Incorrect Software Version Remote Upgrade Cancelled by User Incorrect Kernel Version USB Storage Device Mount Failure Storage Device Mount Failure... - Page 24 Part 2 - Appendix Clip Copy Error Codes Type Type Unknown Error Disk Error Device Error Clip Player Execution File Not Found Device Connection Failure Clip Player Execution File Access Failure CD Media Not Found Clip Player Execution File Save Failure Incorrect Media Image Generation Failure File Name Taken...
- Page 25 Part 2 - Appendix Network Error Codes Type Type Cause of Failure Unknown Connection Cancelled by User Normal Logout No Response from Network Device Host All Channels in Use - Connection Denied High Network Noise Level Incorrect Product Version Info Transmission Queue Full Incorrect User Name or Password Incorrect OEM Info...
-
Page 26: Troubleshooting
Part 2 - Appendix Troubleshooting Problem Solution ● Check the power cable connection status. The main unit won't turn on. ● Check the power outlet. ● Check the camera's video cable connection status. ● Check the monitor's video cable connection status. Unable to display Live video. -
Page 27: Specifications
Part 2 - Appendix Specifications These product specifications may change without prior notice. General Exterior Dimensions 430mm x 88mm x 411mm (W x H x D) Weight (Main Unit) 6.0kg(with 1HDD) Working Temperature 0°C – 40°C Operating Humidity 0% – 90% Power 100V~240V Max. - Page 28 Part 2 - Appendix Alarm In 4 TTL, NC/NO programmable, 2.4V (NC) or 0.3V (NO) threshold, 5V DC Alarm Out 1 relay output, NC/NO, 2A@125V AC, 1A@30V DC Alarm Reset In 1 TTL, terminal block Internal Buzzer 78dB at 10cm Network Connection 10Mbps/100Mbps/1Gbps Ethernet Audio In...
- Page 29 Part 2 - Appendix Storage 6 SATA2 bays (DR-6100P, DR-6200P Series) Internal Storage 4 SATA2 bays (DR-4100P, DR-4200P Series) 4 eSATA ports (DR-6100P, DR-6200P Series) External Storage 2 eSATA ports (DR-4100P, DR-4200P Series) Clip Copy Device USB Storage Device (USB HDD, USB Memory, etc.) Some hard disks may not function properly when mounted on to this product.
- Page 30 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
