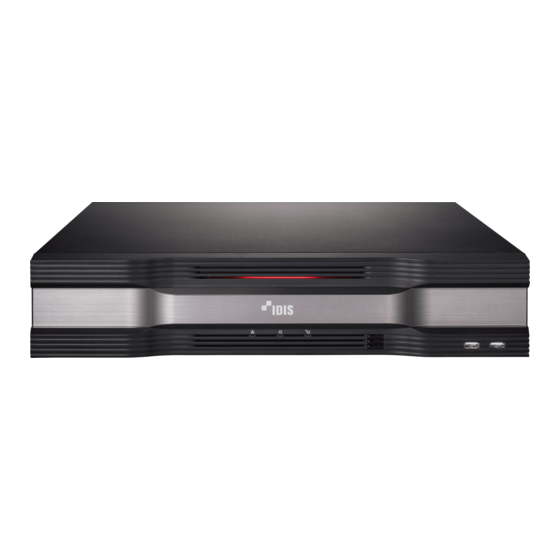

Idis DR-6532P-A Operation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Network Hardware
  5. DR-6532P-A
  6. Operation manual

Idis DR-6532P-A Operation Manual

Hide thumbs Also See for DR-6532P-A:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Video
Recorder
Operation Manual
DR-6508P
DR-6516P(-A)
DR-6532P(-A)
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR-6532P-A and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DR-6532P-A

Summary of Contents for Idis DR-6532P-A

  • Page 1 Network Video Recorder Operation Manual DR-6508P DR-6516P(-A) DR-6532P(-A) Powered by...
  • Page 2 This operation manual contains basic instructions on installing and using DirectIP™ Network Video Recorder, an IDIS product. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual 1. Read Instructions 14. Damage requiring Service All the safety and operating instructions should be read before the appliance Unplug this equipment from the wall outlet and refer servicing to qualified is operated. service personnel under the following conditions: 2.
  • Page 4 Before reading this manual Important Safeguards In-Text Symbol Type Description Caution Important information concerning a specific function. Note Useful information concerning a specific function. User’s Caution Statement Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
  • Page 5 © 2023 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice.

  • Page 6: Table Of Contents

    Table of Contents Part 1 - Getting Started ........10 Setting Password .
  • Page 7 Video-Analytics_Auto Tracking ............71 (IDIS Deep Learning Analytics) .......72 IDLA IDLA_Object Detection .
  • Page 8 IDIS Web ........
  • Page 9 IDIS Center Program Connection through IDIS Camera ........

  • Page 10: Part 1 - Getting Started

    Part 1 - Getting Started Setup Wizard This document covers the 8-, 16-, and 32-channel network video recorders. The NVRs are identical except for the number of cameras and alarms that Setup Wizard lets you configure basic settings required can be connected and the number of cameras that for operating the system.
  • Page 11 Part 1 - Getting Started Choose the desired Recording Method and click Quick Wizard Next. Select Quick Wizard. Choose the desired Recording Quality and click Next. Specify the current date and time and then click Next. • Higher recording quality uses up more disk space.
  • Page 12 Part 1 - Getting Started – Recording resolutions used under each recording method Network Wizard and record video quality setting are as follows: High Video Quality Standard Longer Recording After exiting from Quick Wizard, the network with Priority Profile Recording Time Priority Network Wizard will start automatically.
  • Page 13 • If the NVR is on a network connected to a to access the NVR directly from clients such as network that has a DHCP server, selecting Auto the IDIS Center. Check the name's availability Configuration retrieves LAN settings such as to complete the registration process. The Finish IP and DNS addresses automatically.

  • Page 14: Camera Registration

    Part 1 - Getting Started Camera Registration Camera Scan Button Once Network Setup Wizard is complete, live mode You can scan and search and register cameras that were screen appears. While in live mode, right-click on the not detected automatically or third party cameras. mouse and select Camera Registration to run the Pressing the Scan button displays the following sub- Camera Registration mode.
  • Page 15 For IDIS protocol cameras that support changing and and model. finding the camera password, you must set the camera • This system is optimized for combination with IDIS password at the time of initial camera registration. The cameras. When registering other cameras, recording...
  • Page 16 Part 1 - Getting Started Go To Camera Camera list Moves the focus automatically to the camera using the By using the camera information file, .csv, the user can MAC address and model of camera in the camera list. register the cameras easily. Search Scope Filters the cameras in the camera list depending on the search scope such as specified IP address range.

  • Page 17: Camera View Buttons

    ● Bitrate Button: Displays the following window to change the bitrate allocation for each channel. IDIS cameras can be detected automatically but When registering the camera, you can set the stream IDIS protocol cannot be detected automatically. as much as the performance (bitrate) assigned to the We recommend you use the DirectIP protocol channel.

  • Page 18: Camera List Area

    NVR. ● Authentication: Enter the necessary camera login info. This option is inactive for DirectIP / IDIS cameras 3 Screen Position/Registration Info because they do not require logins. This option is Flashes in orange if the camera has not been inactive for IDIS protocol only if the password is set.

  • Page 19: Apply/Cancel Buttons

    Part 1 - Getting Started Apply/Cancel Buttons • Information is not indicated on the bottom of the screen for cameras already registered to the NVR, and the Screen Position/Registration Info icon is While in Camera Registration mode, select Apply shown with a black background. to register all changes.

  • Page 20: Diagnosis Process

    Part 1 - Getting Started Camera Registration Mode Diagnosis Process When the camera is registered to the NVR, Self- While in Live mode, right-click and select Camera diagnosis runs automatically for the new registered Registration. and changed cameras. If Self-diagnosis is processing, Diagnosis Processing message will be displayed.

  • Page 21: Login

    Part 1 - Getting Started Login Find Password If you do not know the password, select FIND PW . You Configuring the NVR’s settings and accessing its can set a new password. searching and other functions require an authorized user login. Enter a user, registered email and then select Get Verification Code.
  • Page 22 Part 1 - Getting Started Enter an UPR(User Password Reset) verification and then click on UPR Verification button. Select the UPR file and then click on Import button. • To use UPR function, the UPR file must be saved in advance. For more information on saving the UPR file, refer to User on page 37 .

  • Page 23: Live Menu

    Part 1 - Getting Started Live Mode Live Menu Press the MENU button on the remote control while in Live mode to bring up the Live menu on the top of the screen. Press MENU button once more to hide the menu. Use the Arrow buttons on the remote control to select the menu options.
  • Page 24 Part 1 - Getting Started 1 Login/Logout 6 Alarm Log into and out from accounts. If in the logged in Pressing this button while the alarm has been state, the account ID is shown. If in the logged out activated resets all NVR outputs, including the built-in state, the login icon is shown.
  • Page 25 Part 1 - Getting Started Cameo Sequence Status Indication In Cameo Sequence mode, only the bottom right Indicates remote control receptivity. screen in a split screen setup changes sequence. In order Indicates connection to the NVR from a to use the Cameo Sequence feature, Cameo Sequence remote program.

  • Page 26: Zoom

    Part 1 - Getting Started Zoom You can also change the direction by dragging on the mouse. Also, it’s possible to use the mouse wheel to zoom in/ Press the ZOOM button on the remote control or right- out. click on the mouse to select a channel you wish to zoom in on while in live mode or time-lapse mode.
  • Page 27 Part 1 - Getting Started PTZ Camera Pan and Tilt Zoom In/Out Focus Near / Far Advanced Settings IRIS Open / Close In PTZ mode, selecting a camera and then clicking Menu One Push button loads the Advanced PTZ screen as shown below. You can load the Advanced PTZ screen also by pressing Set / Move to Preset the Play/Pause button and then SETUP button on the...

  • Page 28: Dewarping Control (Nvr)

    Part 1 - Getting Started Dewarping Control (NVR) Dewarping Control (Camera) Use this feature to dewarp the fisheye image on NVR. While in Live mode, right-click on the mouse to select Dewarping(camera) from the context menu. The image. While in live mode and search mode, right-click icon will begin to flash on the selected camera’s OSD on the mouse to select Dewarping from the context window.

  • Page 29: Covert Camera

    Part 1 - Getting Started Covert Camera Context Menu Access While in Live mode, press the remote control’s Use this feature to assign Covert Camera View button and then the Menu button to display the Context permissions. Menu window. You can display the ContextMenu Navigate to Camera Setup >...

  • Page 30: Edit Group

    Part 1 - Getting Started Video Recording Edit Group Video recording will only take place if all the connections Edit Group lets you customize split screen pages in both are made correctly as per information contained in Part Live and Search modes. 2 of this operation manual.

  • Page 31: Audio Recording

    Part 1 - Getting Started Audio Recording Video Recording Playback If the Record Audio option under Record Setup > You can play back video recordings by using mouse or General has been enabled the camera will record audio remote control. along with video.

  • Page 32: Remote Control Buttons During Playback

    Part 1 - Getting Started Remote Control Buttons during Playback Camera Button: Displays the selected recording in full screen. Zoom Button: Allows you to zoom in on a specific area of the recording. Layout Button: Cycle through 1x1, 1x2, corridor format(1x3), 2x2, 1p5, 1p7, 3x3, 1p12, 4x4, 5x5, and 6x6 modes.

  • Page 33: Part 2 - Configuration

    Part 2 - Configuration Menu Use While in Live mode, press the remote control's SETUP button or select Live menu > Setup using the mouse. Information contained in this section (Menu Use) applies to all other instructions found throughout Part 2 - Configuration.

  • Page 34: Text Input Via Virtual Keyboard

    Part 2 - Configuration Text Input via Virtual Keyboard Batch Assignment Use the remote control’s arrow buttons to select a Certain table-format menus such as the shown in the Camera Setup on page 44 allow you to change virtual keyboard key and then press the remote control’s $ button or click on the key using the mouse.

  • Page 35: System Setup

    Part 2 - Configuration System Setup When using Use 2FA feature, registered mobile device must be authenticated to upgrade the system. For Refer to the Menu Use on page 33 for basic more information on 2FA function, refer to Use 2FA on information on using the Setup menus.

  • Page 36: Date/Time

    Part 2 - Configuration Date/Time In order to display the system_log.txt file, you must use the correct character encoding settings and use a ● Date: Used to change the system’s date setting. fixed-width font. ● Time: Used to change the system’s time setting. ●...

  • Page 37: User

    Part 2 - Configuration ● Holiday: Designate holidays. On specified holidays, User recording takes place according to the holiday recording schedule specified under Record Schedule. Use this option to register users and assign permissions. Select the + button at the bottom of the window. Select a date.
  • Page 38 Part 2 - Configuration Select a group for the user and then enter a Group Permissions password. The password can be up to 16 characters in length and may include letters, symbols, and May shutdown the numbers. The e-mail address will be used as Shutdown system from the information on password verification.

  • Page 39: Security

    Part 2 - Configuration Security May configure camera Camera Setup settings. Use this option to configure security settings. May change the System Time system's date and time Change settings. May clear data stored Data Clear / in the system or Protection protect data from being deleted.
  • Page 40 Part 2 - Configuration Network Security (Host Certificates) • 2FA device registration is supported only via IDIS Mobile app. This is the certificate management menu for network • Only the administrator account user can configure security access. It supports checking the product certificate this option.

  • Page 41: Storage

    Part 2 - Configuration ● Setup: Configure detailed settings related to Mirror. Storage – Mirror: Click OK to start mirroring. Once you start mirroring (writing data on the two disks at the Use this option to configure storage settings. same time between two disks), all existing data on the two disks will be erased.

  • Page 42: Self-Diagnosis

    Part 2 - Configuration ● Setup: Set Auto Generating Interval and Check IP Self-Diagnosis Duplicate. Use this option to configure self-diagnostic settings. This feature is also supported when connected to the NVR from a remote program. – Auto Generating Interval: Set the interval to automatically generate self-diagnosis report.

  • Page 43: Custom Value

    Part 2 - Configuration Custom Value ● Name: Set the name of system properties to be Once you have run Error Recovery on the camera, the included in a JSON file on HTTP notifications. camera will reboot automatically. By selecting System, ●...

  • Page 44: Camera Setup

    Part 2 - Configuration Camera Setup Device Scan Scan the device under Registration - Scan. Refer to the Menu Use on page 33 for basic information on using the Setup menus. Registration You can register cameras at remote locales. By selecting a number from the list, you can move the camera up or down the list using the mouse wheel to reorder its position.
  • Page 45 Authentication window of the next network device and to display the Authentication window of device. the next network device. • For IDIS cameras, a user and password may not be required. When the password is set, the login window will appear.

  • Page 46: General

    Part 2 - Configuration General Advanced Setup Configure security and other advanced camera settings. Enable/disable the covert view and rename cameras. ● Video: Adjust the camera image sensor settings such as white balance and exposure. Configuration options ● Title: Edit the camera’s name. may differ depending on the camera model.
  • Page 47 Part 2 - Configuration – Factory Reset : Resets the NVR to all its initial – Directional Buttons ( factory settings. It is supported by DirectIP cameras Used to tilt and pan the camera. only. – Zoom ( ): Zoom in and out. ●...
  • Page 48 Part 2 - Configuration Set: Used to set up a tour profile. Start recording: Select a pattern number, enter a name – Name: Enter a name for the tour profile. for the pattern, and then click OK to save the pattern. –...
  • Page 49 Part 2 - Configuration 5 PTZ Reset: Reboots the camera’s panning / tilting Privacy Masking Options and zoom settings. 6 Home Position: Specify the camera’s home position. ● Default: Uses the factory-default position as the camera’s home position. ● Custom: Uses the user-defined position as the home position.
  • Page 50 Part 2 - Configuration ● White LED Mode: Clicking on/off enables or disables Image Sensor Options White LED lighting when motion is detected by the PIR sensor. Also clicking auto allows the system to enable/disable White LED mode automatically. ● Pivot: Enable this option and choose the direction of the pivot.
  • Page 51 Part 2 - Configuration White Balance Options Exposure Options ● Preset: Use preconfigured white balance settings. ● AE Target Gain: Specify exposure compensation’s – Auto: Allow the system to adjust the white target gain. Exposure is compensated automatically balance automatically. The system will assess the based on the specified target gain.
  • Page 52 Part 2 - Configuration ● IRIS: Depending on the camera type, the user can Day & Night Options select DC-IRIS or P-IRIS. – DC IRIS – OFF : Select this if a manual IRIS lens is mounted on the camera. –...

  • Page 53: Stream I

    Part 2 - Configuration Stream I View Options ● Type: Selects the camera view. Configure the camera’s live and recording resolution, codec, picture quality, transfer speed, and ips speed ● Mode: Selects the screen layout in live mode. settings. ● Camera Channels: It’s possible to configure a unique •...

  • Page 54: Stream Ii

    Part 2 - Configuration ● Video Profile: Select Stream 1, Stream 2, Stream 3, Stream II or Custom (available from Record Video Profile only). – Codec: Supports H.264 and H.265. – Resolution: Select a resolution supported by the camera. Maximum available resolution is chosen automatically based on the selected video profile.

  • Page 55: Audio

    Part 2 - Configuration ● MAT Setup : Select the MAP Setup option to use the Audio MAT (Motion Adaptive Transmission) function during video transmission and recording. Configure audio recording settings for all cameras • When the MAT (Motion Adaptive Transmission) simultaneously.

  • Page 56: Sd Card

    Part 2 - Configuration SD Card Maintenance If connection between the camera and NVR fails, the When using NetFS, select Firmware Upgrade. You can video will be recorded on SD memory card of the select or USB port or NetFS. If not, you can only select USB port.

  • Page 57: Record Setup

    Part 2 - Configuration Record Setup ● Use Panic Recording: Enable/disable Panic Recording. ● Panic Recording Duration: Disable Panic Recording Refer to the Menu Use on page 33 for basic automatically. Select between 5 mins and 1 hr. If you information on using the Setup menus.

  • Page 58: Schedule

    Part 2 - Configuration Schedule Quota Based Size Cameras and disks are grouped to enable recording according to the set ratio. <Simple Mode> Click the + icon at the bottom left corner of the Camera Group list table to group the cameras by specifying the camera numbers as below.
  • Page 59 Part 2 - Configuration ● Channel: Select which cameras to apply the schedule Simple Mode Options ● Mode: Select No Record, Time, Event, or Time & ● Settings: Select to configure default recording profile Event. values for Time Lapse and Event Recording modes. Unless the Panic Record button is pressed, no recording will take place Record...

  • Page 60: Pre-Event

    Part 2 - Configuration Pre-Event Advanced Mode Options Select to configure event types and video profiles. ● Type: Event-specific and time recording icons are as When an event occurs, enabling this option includes follows: the specified duration prior to the event in the event- triggered recording.

  • Page 61: Smart Failover

    Part 2 - Configuration Smart Failover Statistics Displays the throughput and recordable time that is When the connection is recovered again, Smart Failover being recorded depending on the camera and storage Service enables the data recorded on SD memory card capacity by each group set in the NVR.

  • Page 62: Event Setup

    Part 2 - Configuration Event Setup ● Capacity: Indicates the sum of all storage capacity in the camera group. Click ... icon under Capacity tap to calculate the capacity and throughput by each group Refer to the Menu Use on page 33 for basic and display the remaining time for recording.
  • Page 63 Part 2 - Configuration Monitoring Options Generates an event when a disk Disk Partially in one of multiple quota groups Almost Full reaches the specified capacity (80% Define monitoring times. If self- to 99%). diagnosis is not performed on a System regular basis, the system will assume an error.

  • Page 64: Camera System

    Part 2 - Configuration Camera System Generates an event when a disk Disk Partially in one of multiple quota groups Full reaches the specified capacity. A list of events that occur in the camera except for video analysis. Generates an event when the specified percentage of the disk Disk Bad becomes damaged.

  • Page 65: Camera System_Camera Fan Error

    Part 2 - Configuration value between 1 sec and 5 secs or choose Never. Camera System_Camera Fan Error – Use Ignoring Time: Select Time Setup to specify the audio detection ignore time of camera The event occurs when the fan has stopped in the fan channels.

  • Page 66: Camera System_Video Loss

    Part 2 - Configuration Camera System_Video Loss Camera System_Recording Fail ● Activation Time: Specify how long recording fail ● Activation Time: Specify how long video loss has has to last in order for it to be considered as an to last in order for it to be considered as an event. event.

  • Page 67: Camera System_Pir

    Part 2 - Configuration ● Actions: Specify which actions to take when a PIR Camera System_PIR event occurs. – Record: Specify which cameras to begin linked This event occurs when the PIR sensor mounted on the recording on when an event occurs. If the schedule camera is used to sense motion.

  • Page 68: Video-Analytics_Motion

    Part 2 - Configuration Video-Analytics_Motion – Clear All: Clear all block selections. – Reverse All: Clear all selected blocks within the screen and select all unselected blocks within the screen. – OK: Save the changes and exit the menu. – Cancel: Exit the menu without saving the changes. ●...

  • Page 69: Video-Analytics_Trip Zone

    Part 2 - Configuration ● Condition: When a specific event occurs, you can set Video-Analytics_Trip Zone the condition that determines whether to operate motion according to the status of other events. – Reference Only: Set the event to be the subject of a reference.
  • Page 70 Part 2 - Configuration Trip Zone Ignoring Time does not affect Trip Zone recording. – Daytime Setup: Specify when daytime starts and ends. Adjust the time frame in 15-minute increments. Times outside the specified range will be assumed as nighttime by the system. ●...

  • Page 71: Video-Analytics_Tampering

    Part 2 - Configuration Video-Analytics_Tampering Video-Analytics_Auto Tracking When the PTZ camera detects a moving object, the camera operates the PTZ to track the moving object. Auto tracking event occur simultaneously when the PTZ camera tracks an object. ● No.: Select which cameras to apply Tampering to. ●...

  • Page 72: Idla (Idis Deep Learning Analytics)

    Part 2 - Configuration ● Actions: Specify which actions to take when Alarm-In IDLA (IDIS Deep Learning Analytics) is detected. – Record: Specify which cameras to begin linked This is a list of events that occur during AI video analysis.
  • Page 73 Part 2 - Configuration is set to Event or Time & Event mode, the selected cameras will begin linked recording when an event occurs. – Alarm-Out: Designate event-triggered alarm-out channels (each for the NVR and camera) and beeps. – Notify: Configure to be notified of events by Mail, LAN1 through 5, Push, FTP, and/or Alert Window.

  • Page 74: Idla_Intrusion

    Part 2 - Configuration IDLA_Intrusion – Clear: Clear the selected zone. – Undo: Remove the last point of a line. – Edit Name: Change the name of the zone. – Object: Select an object to detect. – Direction: Select the direction of the obejct to detect.

  • Page 75: Idla_Loitering

    Part 2 - Configuration IDLA_Loitering • In order to use the Callback feature, the NVR must be registered on the remote program. ● When the analytic type is set to Intrusion Detection in the Device - VA Box- Setup tab, Use Ignoring Time option is not dispalyed on the screen.
  • Page 76 Part 2 - Configuration...

  • Page 77: Idla_Line Crossing

    Part 2 - Configuration IDLA_Line Crossing – Crossing Position Settings: Set the crossing position of the object. – Add: Add a line. – Delete: Delete the selected line. – Delete All: Delete all lines. – Save: Save the changes and exit the menu. –...

  • Page 78: Idla_Face Detection

    Part 2 - Configuration IDLA_Face Detection – Clear: Clear the selected zone. – Undo: Remove the last point of a line. – Edit Name: Change the name of the zone. – Add: Add a zone. – Delete: Delete the selected zone. –...

  • Page 79: Additional Event

    Part 2 - Configuration Additional Event • In order to use the Callback feature, the NVR must be registered on the remote program. ● When the analytic type is set to Face A list of events that occur in the camera, system and Detection in the Device - VA Box- Setup other device.

  • Page 80: Additional Event_Alarm-In

    Part 2 - Configuration Additional Event_Alarm-In – Reference Only: Set the event to be the subject of a reference. – Event: Set the reference event. – Channel: Set the reference channel. ● Actions: Specify which actions to take when Alarm-In is detected.

  • Page 81: Additional Event_Network Alarm

    Part 2 - Configuration Additional Event_Network Alarm Additional Event_Text-In ● No.: Enable or disable network alarm. ● Setup: Configure text-in devices. ● Title: Use the virtual keyboard to enter titles. ● Condition: When a specific event occurs, you can set the condition that determines whether to operate motion according to the status of other events.

  • Page 82: Va Box

    Part 2 - Configuration ● Line Delimiter: Designate a string to mark the end of VA Box a line. You can enter control strings by selecting and then entering ^, followed by a letter. For example, A list of events that occur on VA Box. Carriage Return is ^M and Line Feed (new line) is ^J.

  • Page 83: Va Box_Social Distancing Violation

    Part 2 - Configuration ● Actions: Specify which actions to take when an event the event was detected. occurs. To use the Social Distancing Violation, the Social – Record: Specify which cameras to begin linked Distancing Violation must be set on that channel. recording on when an event occurs.

  • Page 84: Va Box_Queue Congestion

    Part 2 - Configuration VA Box_Queue Congestion detected within a certain period of time after the event was detected. To use the mask rule violation, the mask rule The camera detects queue congestion and events occur violation must be set on that channel. according to Queue Congestion settings.

  • Page 85: Va Box_Va Loss

    Part 2 - Configuration Device Setup VA Box_VA Loss Refer to the Menu Use on page 33 for basic This event occurs when VA Box does not operate normally. information on using the Setup menus. Alarm-Out A list of events for setting up Alarm-Out. ●...

  • Page 86: Alarm-Out_Schedule

    Part 2 - Configuration ● Title: Designate a name for the alarm-out event Connector ● Reverse Relay: Reverse the alarm-out type of the device you set at the source. Alarm-Out_Schedule Click the + icon at the bottom left corner of the screen to add a connection device.

  • Page 87: Remote Control

    Part 2 - Configuration Remote Control VA Box By analyzing camera images, you can check real-time analysis results from a client program such as the IDIS Center. ● Port: Indicates the remote control device connected in the previous Connectors tab.

  • Page 88: Va Box_Setup

    PoE port or using a DirectIP PoE Switch (optional). Select PoE Reset to reboot VA Box. – Soft Reset: Reboots VA Box. Use a client program such as IDIS Center to check the analysis results. ● Analytic Type: - DV-1304 : Select one among People Counting, HeatMap, Social Distancing Violation, Mask Rule Violation and Queue Monitoring.
  • Page 89 Part 2 - Configuration ● Configuration : Set the environment of people <Types of Video Analytics > counting. Select People Counting as the video analysis type, and then select Settings. People Counting Count the number of people passing through the line on the live screen.
  • Page 90 Part 2 - Configuration Right-click on the zone setup screen to bring up the Social Distancing Violation Menu. – Undo : Return to the previously set zone. – Save: Save the changes and exit the menu. – Cancel : Exit the setup screen without saving the changes.
  • Page 91 Part 2 - Configuration – Undo : Return to the previously set zone. Right-click on the zone setup screen to bring up the Queue Monitoring Menu. – Save: Save the changes and exit the menu. – Delete : Delete the zone selected in the image. –...
  • Page 92 Part 2 - Configuration ● Threshold : Set a reference value that can be recognized as an object in the image. ● Use Highlight: In the zone setup screen, values are highlighted in color. Loitering Loitering detection technology detects an object (human, cars, bikes) that stays longer than the set time.
  • Page 93 Part 2 - Configuration Line Crossing Face Detection Set direction options (In, Out, In/Out) to detect an object Face Detection technology analyzes faces in an image. (human, cars, bikes) which crosses a pre-definded line. Drag and drop the vertex to modify a previously set Click on the left mouse button to reset the line.

  • Page 94: Va Box_Schedule

    Part 2 - Configuration VA Box_Schedule VA Box_Maintenance Configure the schedule of the VA Box. Select the When using NetFS, select Firmware Upgrade. You can + button on the bottom left of the screen to add a select USB storage or NetFS. If not using NetFS, you can schedule.

  • Page 95: Network Setup

    Part 2 - Configuration Network Setup ● DirectNDC: Use Direct Network Display Control (NDC) by clicking the Use DirectNDC button to toggle between On and Off. You will be able to change the Refer to the Menu Use on page 33 for basic settings if Use DirectNDC is enabled.

  • Page 96: Idis Web

    Press the F3 key to initiate PTZ mode. This is the same as pressing the PTZ ● Use IDIS Web Service: If you wish to use IDIS Web, button on the front panel or the select IDIS Web - Use IDIS Web Service. Select IDIS remote control.

  • Page 97: Wan

    Configure IP Address, Gateway, and Subnet Mask settings manually using the remote control's arrow buttons or the virtual keyboard. • When registering NVR with the IDIS mobile application, you can easily enter the IP address using the QR code.
  • Page 98 • With DHCP, the NVR's IP address might change with each startup. Select Close to exit. • When registering NVR with the IDIS mobile application, you can easily enter the IP address ● To use the UPnP (Universal Plug and Play) feature, using the QR code.
  • Page 99 Gateway, and DNS Server settings manually using the remote control's arrow buttons or the virtual keyboard. • When registering NVR with the IDIS mobile application, you can easily enter the IP address using the QR code. IPv6_Auto Select Auto to automatically assign IP addresses. You can set the DNS server when Auto function is not selected.

  • Page 100: Vin

    Part 2 - Configuration If the camera is networked but not scanned, use this setup. This setup allows you to change the network setting of the NVR’s VIDEO IN port which is camera’s network environment. Check the camera’s network setting first before you use this setup. •...

  • Page 101: Fen

    • If the device name contains the #, \, and/or % symbol, it might not be able to connect to the NVR from the IDIS Web program. • When registering NVR with the IDIS mobile application, you can easily enter the IP address using the QR code.

  • Page 102: Netfs

    Part 2 - Configuration ● Use: Select the usage for the NetFS feature. NetFS – N/A : Disables the NetFS feature. – ALL: Enables the NetFS feature. This allows you to register NetFS sites for the following – Upgrade: Allows you to use the upgrade file that functions: was uploaded to the NetFS site.

  • Page 103: Rtsp

    Part 2 - Configuration RTSP Firewall RTSP service allows you to monitor real-time using the Setting up a customized firewall rule set, it allows or denies access such as specific MAC address, IP address Real-Time Streaming Protocol. and receiving network port of the NVR. ●...

  • Page 104: Nat

    PC (WebSetup / IDIS Web / IDIS Center program / RTSP). To connect to the camera WebSetup / IDIS Web / IDIS Center program / RTSP function, you need to configure the NAT rule to forward ports from NVR port number to the camera port number.

  • Page 105: Notification Setup

    Part 2 - Configuration Notification Setup 1) Example of Device Information Summary Mail Schedule Select the + icon at the lower left corner of the screen to add a notification schedule. 2) Example of Camera/Device Event Summary Mail 3) Example of Device Health Status Summary Mail ●...

  • Page 106: Callback

    Part 2 - Configuration ● Max. Queue Size : Determine the maximum number Callback that can be processing events. You can limit from 300 to 1000 queues. For more information on Callback Configure Callback settings. Retry Policy, refer to the graph below. Enter the title and IP address of the receiving server and set Retry to between 1 and 10 in case of connection failure.

  • Page 107: Mail

    Part 2 - Configuration ● +Mail: Add a mail recipient Mail Select the group name and then assign the Group to Recipient. Enter the recipient's e-mail address and mail Configure Mail settings. server provider. Select the icon to select the mail server provider from a list of registered SMTP mail server providers.

  • Page 108: Push

    Part 2 - Configuration Push If user authentication is required by the SMTP server, select Use and then enter the User and Password information. Configure Push settings. Select OK to apply and exit. This product contains content developed by OpenSSL Project for use in Open SSL Toolkit (http://www.

  • Page 109: Http

    Part 2 - Configuration HTTP Notify or forward the events on remote HTTP servers. The event and NVR information are sent to HTTP servers in a JSON format. ● Site: Displays the list of the registered FTP sites. Select an FTP site from the list. If the Use settings of the NetFS site are set to anything other than ALL or Clip-Copy, you cannot select the FTP site.

  • Page 110: Display Setup

    Part 2 - Configuration Display Setup HTTP Notification Setup An attribute and parameters must be included when Refer to the Menu Use on page 33 for basic sending the http requests. Click the Setup... icon at a information on using the Setup menus. bottom right corner of the window.

  • Page 111: Main Monitor

    Part 2 - Configuration Main Monitor Camera ● No.: Displays the camera number on the upper left corner of the camera screen. Configure monitor-related settings. ● Title: Displays the camera name on the upper left corner of the camera screen. ●...

  • Page 112: Status Setup

    Part 2 - Configuration Status Setup Device Refer to the Menu Use on page 33 for basic This screen displays an overview of device events. information on using the Setup menus. When an event occurs, the corresponding channel flashes for 5 seconds. Camera This screen displays an overview of camera events.

  • Page 113: Va Box

    Part 2 - Configuration ● Disk Partially Almost Full / Disk Partially Full: If the VA Box storage device is not in Recycle status, event status is displayed when a disk in one of multiple quota groups This screen displays an overview of VA Box events. reaches a specified capacity or disk usage reaches When an event occurs, the corresponding channel a specified capacity under System - Monitoring.

  • Page 114: Storage

    Part 2 - Configuration Storage A disk that has never Formatted been used before. Indicates each disk's status. ● Disk performing normally. ● If the HDD is partially Good damaged, indicates the bad sector Disk Bad percentage. ● If the HDD's bad sector ratio is higher than as designated Error...

  • Page 115: Network

    This page provides a complete overview of the network connected. indicates the status in real-time. camera manufactured by IDIS is not connected. indicates the camera other than IDIS is Camera connected. indicates the Connection camera other than IDIS is not connected. Clicking the image displays the camera's channel number.
  • Page 116 Part 2 - Configuration If receiving power from the NVR, the actual amount of power consumed by each camera is indicated under each camera icon. Total power consumption is shown at the top of the screen in the following format: Power [PoE Power Consumption: 24.6W Consumption...

  • Page 117: Part 3 - Search

    Part 3 - Search Time-Lapse Search While in Live mode, select the Search Mode icon and select Time-Laspe Search, Event Log Search or Thumbnail Search. Select Menu while in Search mode to display a menu from which you can select Control Area. Press Menu once more to move the Control Area.
  • Page 118 Part 3 - Search The Control Area consists of Top, Center, Right, Bottom, and None. 1 Top: Activates top Search menu. Use the arrow buttons to select an option. 2 Center: Activates the middle screen section. Use the arrow buttons to select a camera. 3 Right: Activates the control buttons on the right.
  • Page 119 Part 3 - Search Search Menu 5 Database ● Record: Search recording data contained in the main recording device. ● Record Protection: Protect the recording data even if overwriting is enabled. 4 5 6 7 8 9 ● Other: Search data recorded while disks used in other systems were connected.
  • Page 120 Part 3 - Search 4 5 6 1 Bookmark Select the icon to add a bookmark to the current playback position. Select a bookmark from the Bookmark setup window on the right side of the Time-Lapse Search mode screen to move to the registered playback position.
  • Page 121 Part 3 - Search ● Option 6 Clip-Copy ● A-B Clip Copy: Designate a start point and an end Clicking icon to set Slow Play and Previous/Next point and copy the data in between. Unit. ● Clip Copy: Opens up the Clip Copy Setup window for designating points A and B.

  • Page 122: Context Menu

    Part 3 - Search Context Menu Selecting on the upper right portion of the Time-Lapse search window changes the size of search window and displays all or minimum channels. Select the Menu button or right-click on the Camera Using the scroll, the information of other channels screen to access the context menu.

  • Page 123: Text-In Search

    Part 3 - Search Text-In Search Clip Copy Select Text-In Search from the Search menu to bring up the Text-In Search window. Clip Copy Select Clip-Copy – Clip Copy from the Search menu or press the remote control’s CLIP COPY button while in Live or Playback mode to open up the Clip Copy setup window.
  • Page 124 2GB in size produces multiple files that are up to 2GB in size, each. • Clip Copy files can be played back on Windows systems. For more information, refer to the IDIS Center operation manual. • For USB flash memory devices, the NVR supports the...

  • Page 125: Event Log Search

    Part 3 - Search Event Log Search Device Filter ● Alarm-In: Select which channels to search alarm-in Select Search Mode > Event Log Search to bring up events in. the Event Log Search window. ● Motion: Select which channels to search motion detection events in.

  • Page 126: Thumbnail Search

    Part 3 - Search Thumbnail Search ● Queue Congestion: Select which channels to search Queue Congestion events in. Select Search Mode > Thumbnail Search to bring up Selected record channels are searched for events with the thumbnail Search window. at least one linked recording. If no camera is selected, only the events with no linked recording camera are searched.

  • Page 127: Overlapped Recording Search

    Part 3 - Search Overlapped Recording Search If the system’s clock is changed to a point in the past, overlapping recordings may be produced. Overlapped recordings have to be searched in segments. For example, making a recording from 1 o’clock to 5 o’clock, changing the system’s clock at 5 o’clock to 3 o’clock, and then continuing to record until 6 o’clock produces two recordings that overlap between 3 o’clock...

  • Page 128: Part 4 - Idis Web

    Part 4 - IDIS Web IDIS Web is a program that allows you to view and search video from remote locations over the Internet and can be accessed on various web browser. System requirements for running IDIS Web are as follows: ●...
  • Page 129 IDIS Web program. • If running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. (Tools → Internet Options →...

  • Page 130: Web Live Mode

    Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. Displays the current time. Select the desired mode. Changing the mode places the selected camera in the first cell of the layout that will be changed.
  • Page 131 Part 4 - IDIS Web Select the camera you wish to monitor. Use the arrow buttons to navigate to the previous/next camera group. Used to control a PTZ camera at a remote location. Used to adjust live video quality. Used to configure camera easy setup. Select from presets or custom setup for the video mode according to daytime/nighttime.

  • Page 132: Web Search Mode

    & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. Displays time information of the video recording from the remote NVR. Select the desired mode. Click to print the current video screen using a printer connected to the computer.
  • Page 133 Part 4 - IDIS Web Click to configure rendering mode, OSD settings, responsiveness preference to time-precision setting and dual-stream playback priority. Select rendering mode to adjust the video output rate or select which TYPE 1 OSD elements to display on the screen from the OSD list. Select Other Setup to prefer responsiveness to time-precision when performing the GoTo function on a Long-GOP image.
  • Page 134 Part 4 - IDIS Web Select a camera from the screen and right-click to bring up the pop-up menu. ● Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.

  • Page 135: Part 5 - Appendix

    (WebSetup / IDIS Web / IDIS Center program / RTSP). To connect to the camera WebSetup / IDIS Web / IDIS Center program / RTSP function, you need to configure the NAT rule to forward ports from NVR port number to the camera port number.

  • Page 136: Camera Websetup Connection

    Camera Access the WebSetup of the camera which is internal VIN network from the PC. Access the IDIS Web of the camera which is internal VIN network from the PC. Port Forward through 2 routers "NVR Port Number and HTTP Port Number of the Camera"...

  • Page 137: Idis Center Program Connection Through Idis Camera

    Camera Connect to view the video of the camera which is Enter the HTTP port number of the camera 16001 to internal VIN network from the clients such as the IDIS have port forwarded. Center program. Port Forward through 2 routers "NVR Port Number and Remote Port Number of the Camera"...

  • Page 138: Rtsp Connection Through Idis Camera

    Part 5 - Appendix RTSP Connection through IDIS Approach Camera Access RTSP function using media players, such as VLC Player. You can monitor live video images through the following address.: rtsp://NVR IP Address: RTSP Port Connect the video of the camera which is internal VIN Number of the Camera/trackID=channel number network by using the RTSP player from the PC.
  • Page 139 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...

This manual is also suitable for:

Dr-6516pDr-6532pDr-6516p-aDr-6508p

Table of Contents
