8. REDUNDANT POWER SUPPLY

Redundant power supply is available as standard on the SuperMicro servers:
Vidicode article number. 010.04605 (SuperMicro 1U)
Vidicode article number. 010.04606 (SuperMicro 4U)
For the documentation on the redundant power supply of these SuperMicro servers the user is
advised to read the applicable documents on the SuperMicro web-site (www.supermicro.com).

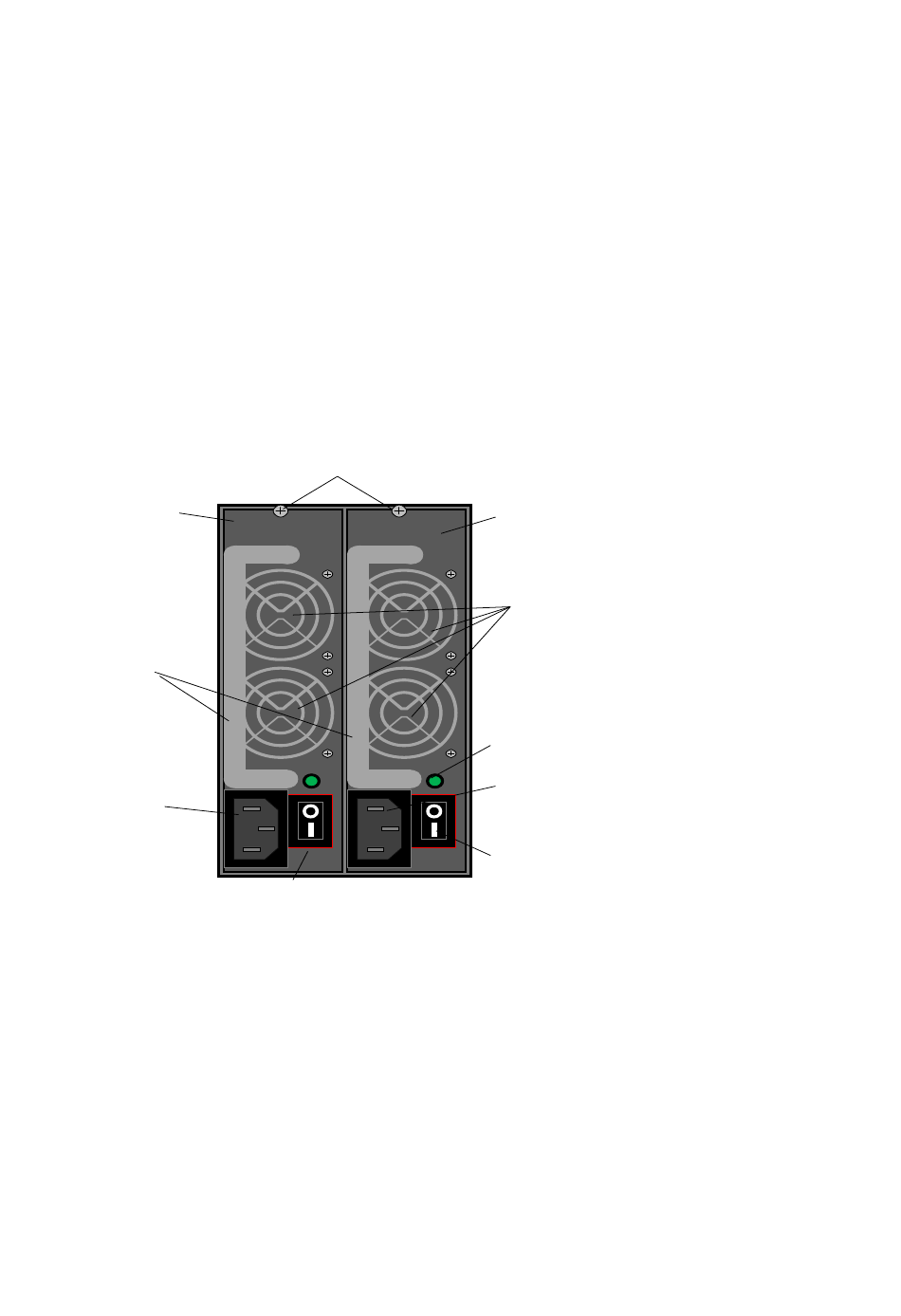

The redundant power supply unit (RPSU) is located at the backside of the housing. The figure below
points the items of interest. (your model RPSU may be different in detail due to different models
housing used):
POWER
PACK 1
HANDLE
BAR
MAINS
INLET
A
The RPSU is built with 2 removable power packs to obtain 1+1 redundancy. In normal situations
both power packs supply the power together based on a load balance mechanism. In the status
page of the APRESA (Tools/System/System Information) the health of the RPSU is displayed.
In the event that one power pack fail, the other power pack will take over completely by delivering
the desired power standing alone. The APRESA system:
1. Sends a warning E-mail to a configurable administrator/manager client;
(note: ONLY when configured properly)
2. The health indicator on the system information page will display this error;
3. SNMP will be supported soon.
INSTALLATION MANUAL APRESA
RELEASE
SCREW
DWG1134_01
SWIT CH A
COPYRIGHT © 2011-2021 VIDICODE ®
POWER
PACK 2
FAN
ST AT US
LED
MAINS
INLET
B
SWIT CH B
