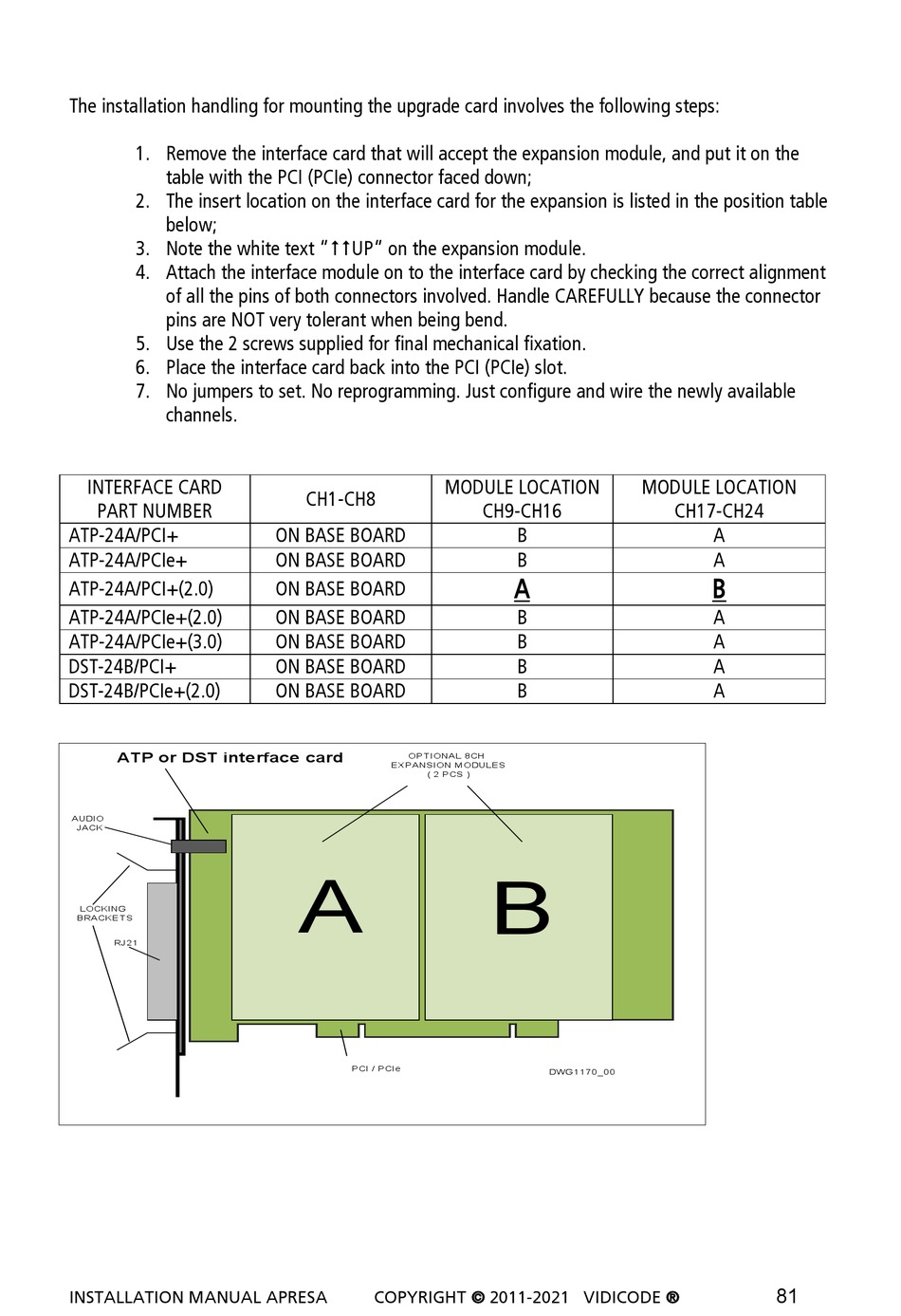

The installation handling for mounting the upgrade card involves the following steps:
1. Remove the interface card that will accept the expansion module, and put it on the
table with the PCI (PCIe) connector faced down;
2. The insert location on the interface card for the expansion is listed in the position table
below;
3. Note the white text "UP" on the expansion module.
4. Attach the interface module on to the interface card by checking the correct alignment
of all the pins of both connectors involved. Handle CAREFULLY because the connector
pins are NOT very tolerant when being bend.
5. Use the 2 screws supplied for final mechanical fixation.
6. Place the interface card back into the PCI (PCIe) slot.
7. No jumpers to set. No reprogramming. Just configure and wire the newly available
channels.
INTERFACE CARD
PART NUMBER
ATP-24A/PCI+
ATP-24A/PCIe+
ATP-24A/PCI+(2.0)
ATP-24A/PCIe+(2.0)
ATP-24A/PCIe+(3.0)
DST-24B/PCI+
DST-24B/PCIe+(2.0)
ATP or DST interface card
AUDIO
JACK
LOCKING
BRACKET S
RJ21
INSTALLATION MANUAL APRESA
MODULE LOCATION
CH1-CH8
ON BASE BOARD
ON BASE BOARD
ON BASE BOARD
ON BASE BOARD
ON BASE BOARD
ON BASE BOARD
ON BASE BOARD
OPT IONAL 8CH
EXPANSION MODULES
( 2 PCS )
A
PCI / PCIe
COPYRIGHT © 2011-2021 VIDICODE ®
MODULE LOCATION
CH9-CH16
B
B
A
B
B
B
B
B
DWG1170_00
CH17-CH24
A
A
B
A
A
A
A
