See the main display or LCD annunciator details
• Select a main display or annunciator in the Job Tree.

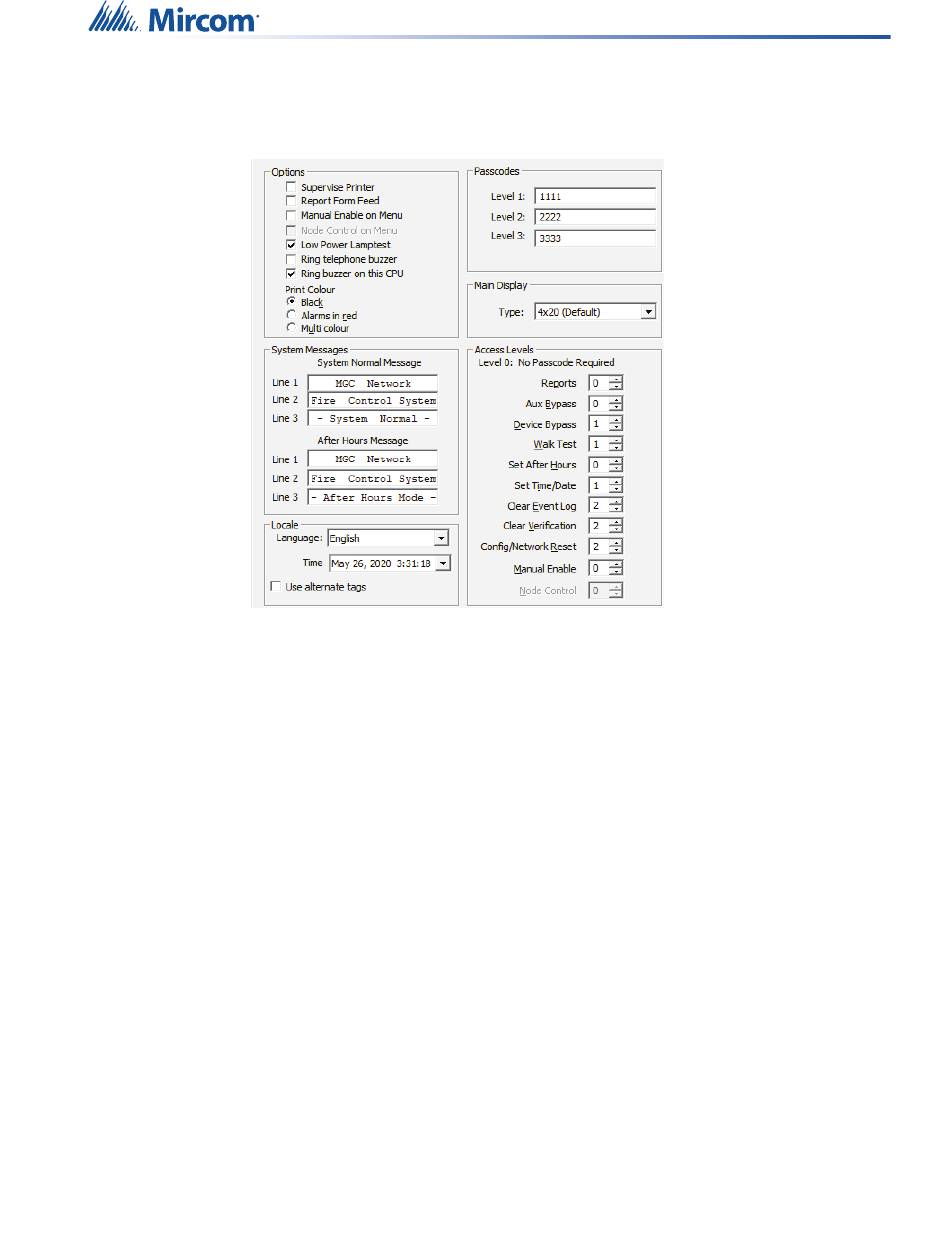

Figure 112 Main Display

Options
Supervise Printer
Report Form Feed
Manual Enable on Menu
Node Control on Menu
150
Select this check box to make the system report a trouble
if the printer is disconnected.
Select this check box to add a Manual Control Enable
option in the display's menu. Manual Control Enable lets
you enable manual control on a node. When manual
control is enabled on a node, then the master microphone
or master telephone work for that node only. This lets you
limit the use of the master microphone and master
telephone to one node.
Select this check box to unlock control switches at non-
primary nodes. This option can be password-protected
with the Node Control option under Access Levels
(section 19.8.3 on page 152).
