18.2.5 Event Log
The Event Log page displays a list of all events, including troubles and alarms. You can save
or print this log with the buttons at the top of the page. Note that there is a delay of a few
minutes before the logs update. They are not updated in real time.
To view the Event Log:
• Click System Logs, and then click General Logs.

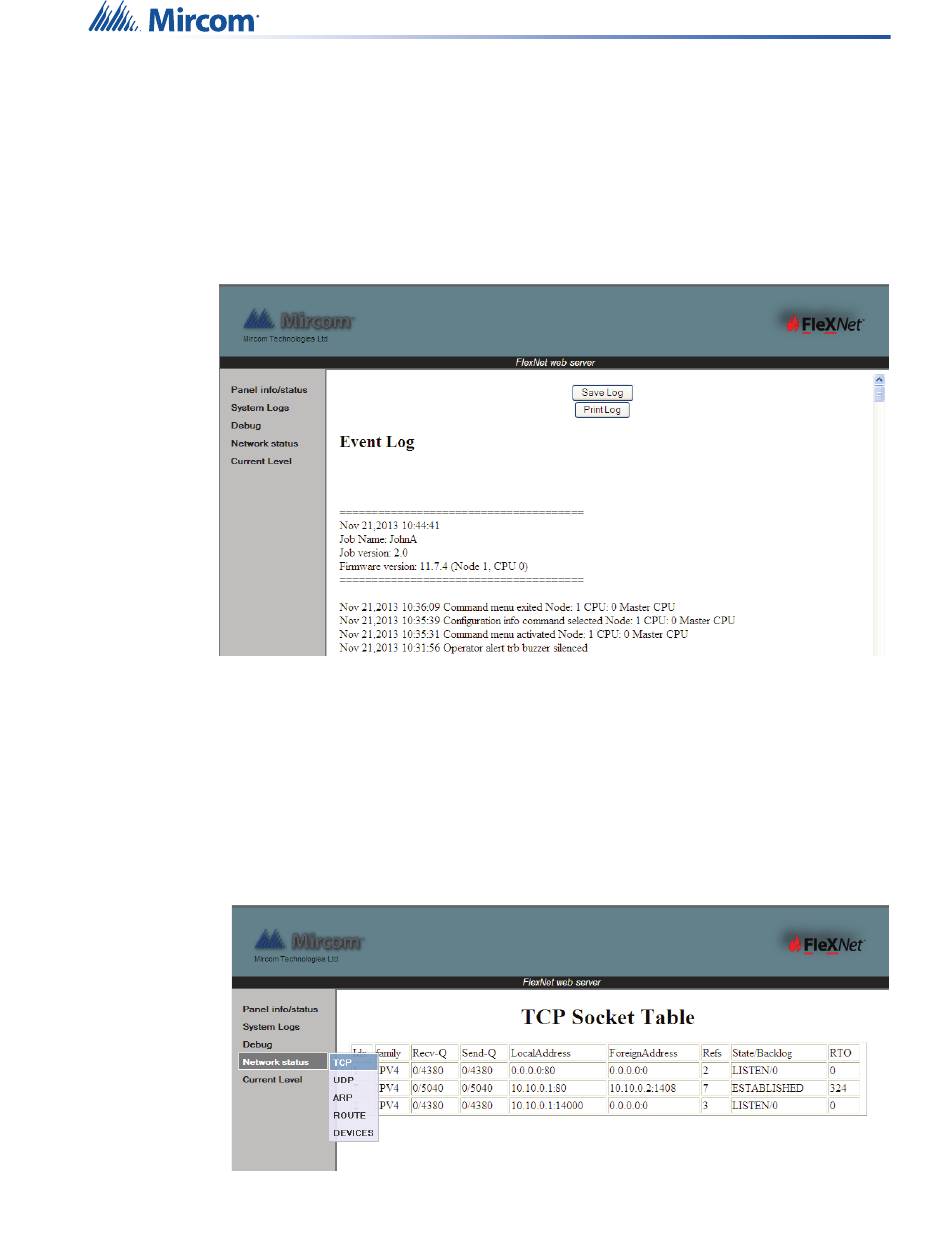

Figure 94 Event Log

18.2.6 TCP Socket Table
The TCP Socket Table page displays a list containing all the connections currently being
made to the Web Server from remote locations. Each entry after the first represents a unique
connection to the Web Server.
To view the TCP Socket Table:
• Click Network Status, and then click TCP.

Figure 95 TCP Socket Table

Using the Web Server
127
