18.2.3 Configuration Status
The Configuration Status page shows a list of the nodes that comprise the FleX-Net™
system. The CPUs that are in use have a CPU number beside their associated node.
To view the Configuration Status:
• Click Panel Information, and then click Configuration Status.

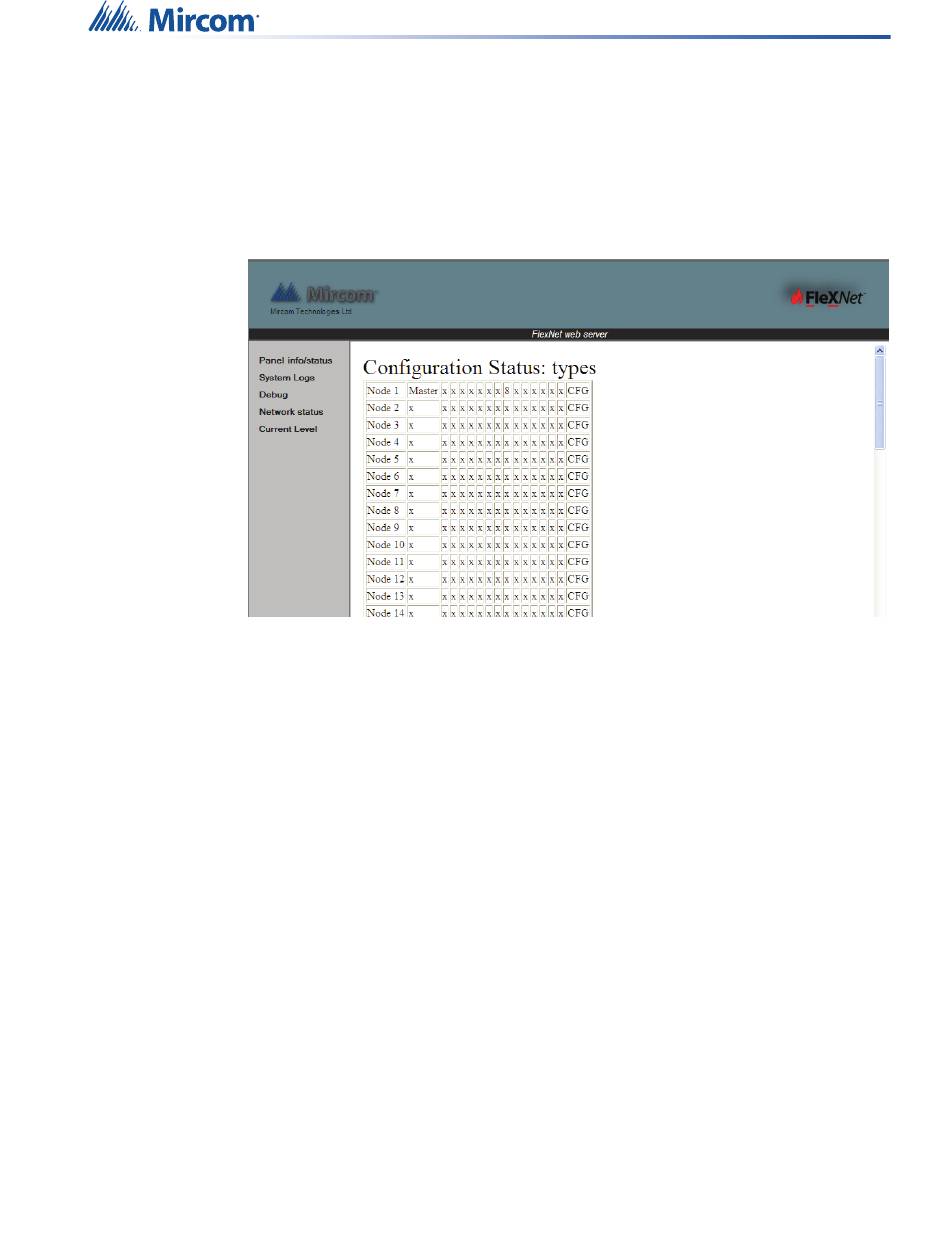

Figure 92 Configuration Status
