I/O Ports Arrangement

The arrangement of the I/O ports is shown in Figure 1.1

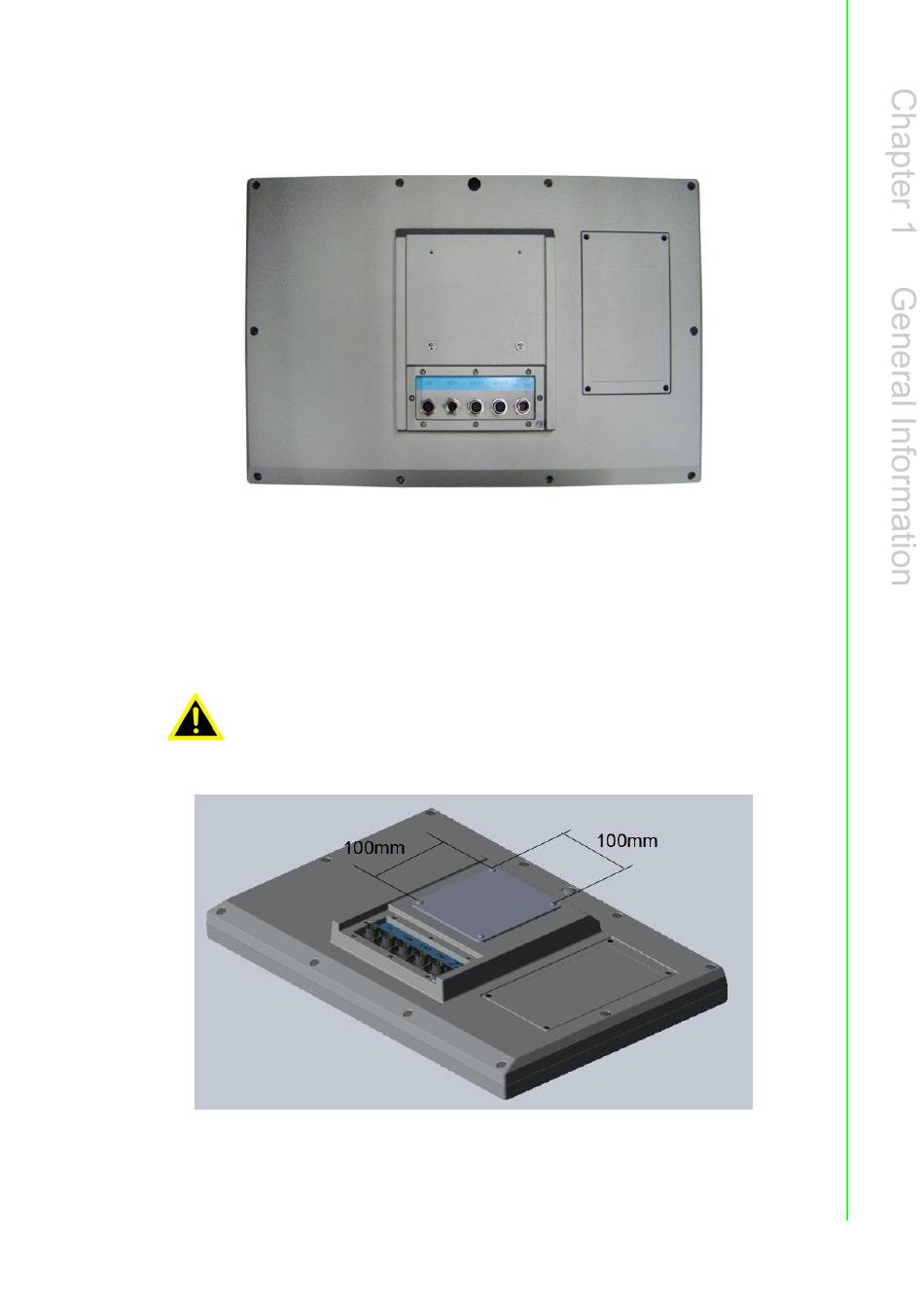

Figure 1.1 SPC-1840/2140 Rear View- I/O Port Arrangement
1.8

VESA Mounting

The SPC-1840/2140 have been designed with support for the VESA mount standard.
Refer to figure 1.2. Supports 100mm VESA dimension. Use M4 screws (Length 8mm
to 10 mm).
Warning! Use suitable mounting apparatus to avoid risk of injury.
Figure 1.2 VESA Mounting
