3.
Connect the power connector with M12 connector to the 24 V
The power lines can either be of some power adapter or in-house power source.
4.
USB
Pin Number
1
2
3
M12-A-5P-M
4
Power
5

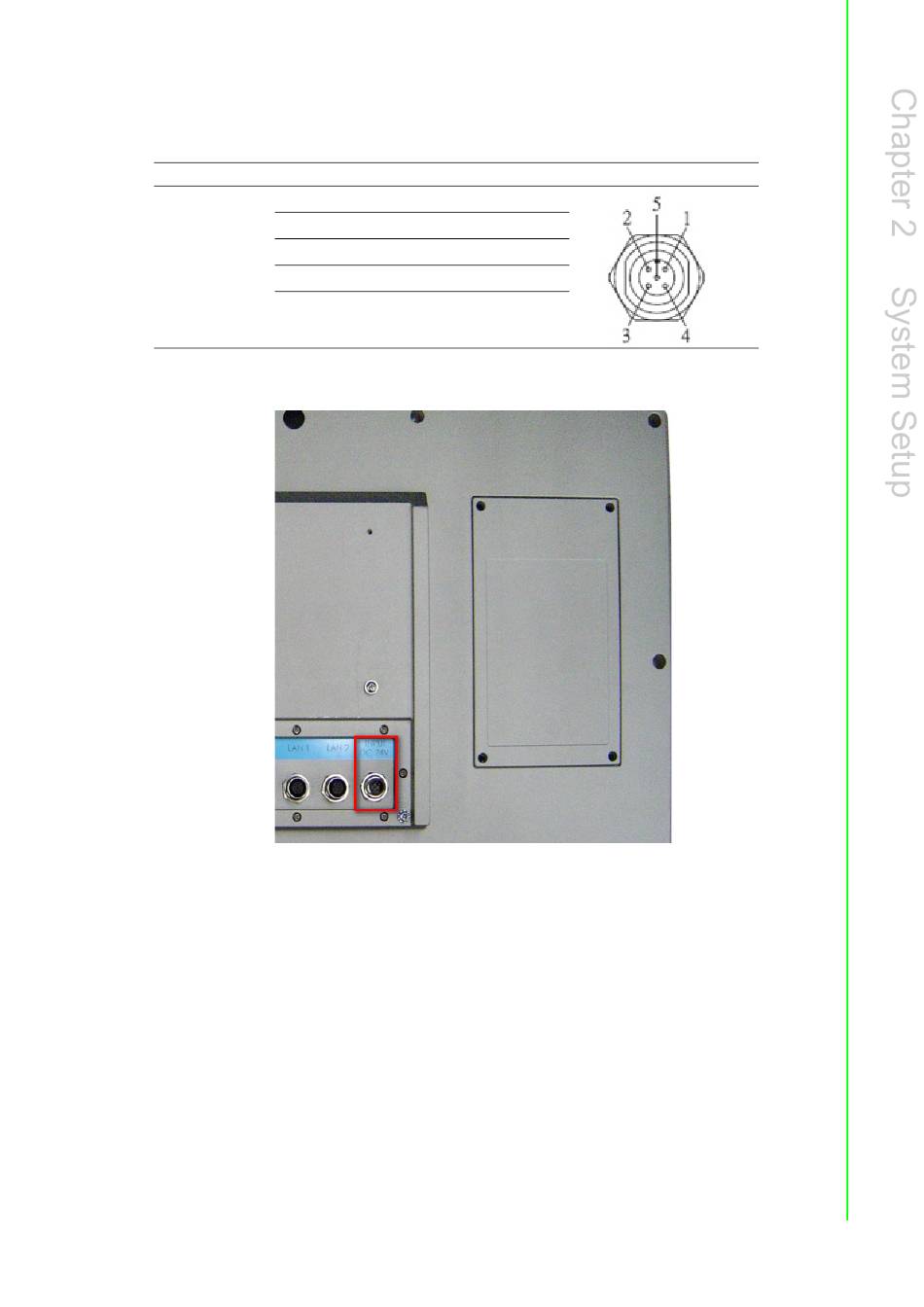

Figure 2.3 Pin Definition of Power Connector
Figure 2.4 Power Receptor with M12 Connector
5.
Plug the power lines into the system power receptor with M12 connector.
6.
Power on the system.
Signal
DC 24V-
DC 24V-
DC 24V+
DC24V+
F_GND
11
power lines.
DC
(Male)
SPC-XX40 User Manual
