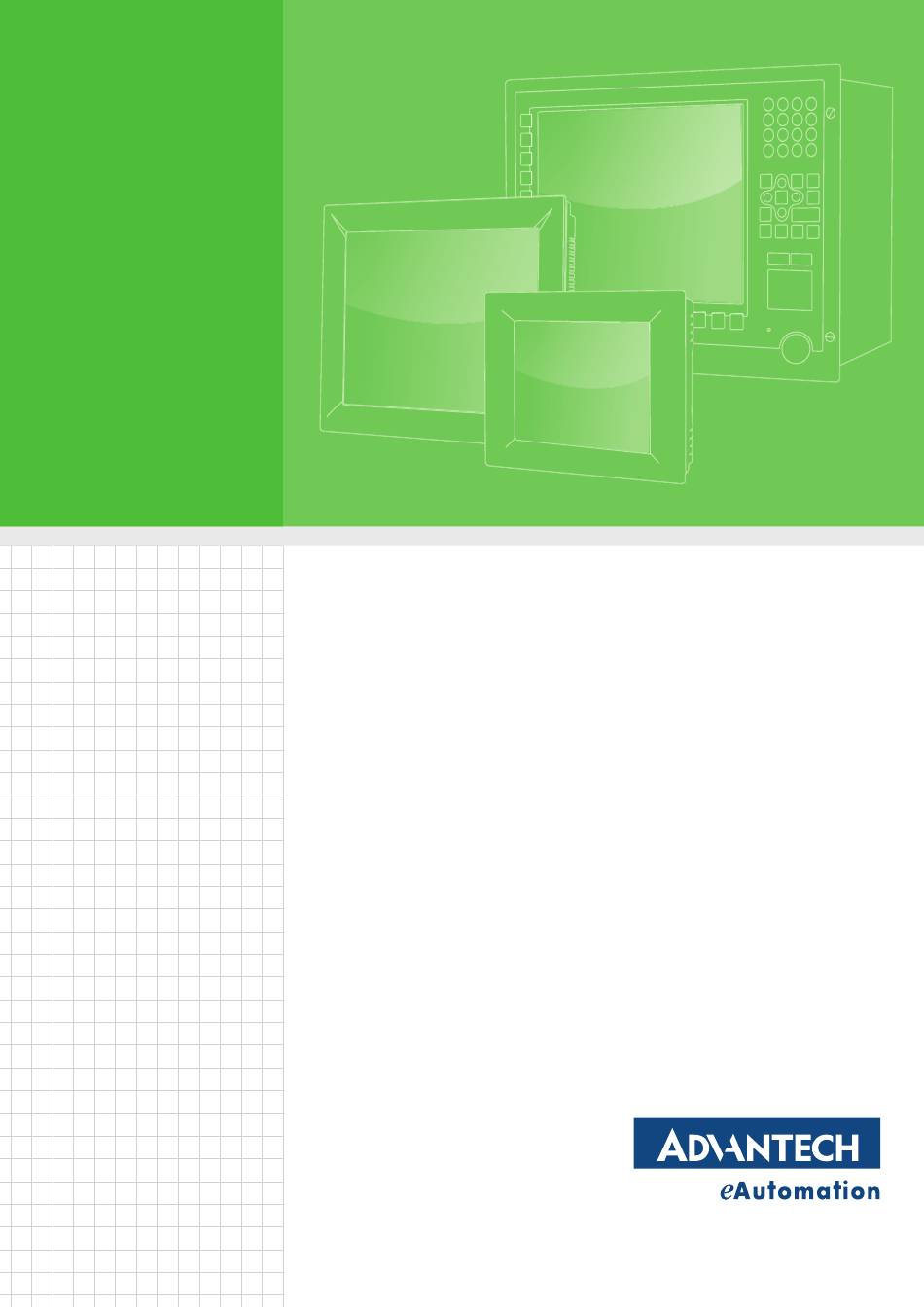

- Page 1 User Manual SPC-XX40 Stationary Multi-Touch Panel Computer with AMD Dual-core Processor...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 SPC-XX40 User Manual...
-
Page 7: Table Of Contents
Contents Chapter General Information ......1 Introduction ....................2 Packing List....................2 Specifications .................... 3 1.3.1 System Kernel................3 1.3.2 I/O Ports..................3 1.3.3 Safety and Environment..............3 LCD Specifications..................4 Touchscreen Specifications ..............4 Power ......................4 I/O Ports Arrangement ................5 Figure 1.1 SPC-1840/2140 Rear View- I/O Port Arrangement .. - Page 8 SPC-XX40 User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information... -
Page 10: Introduction
Introduction With a brand-new ID design, the SPC-1840/2140 series provide high resolution 18.5"/21.5" display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56N 1.65GHz processor with independent GPU, the SPC-1840/2140 series can support advanced graphical performance in more complex applications. Built-in func- tion and home key button for greater user usability and operating safety. -
Page 11: Specifications
Specifications 1.3.1 System Kernel CPU: AMD G-series T56N1.65GHz BIOS: AMI 32Mbit BIOS System Chipset: A50M FCH VGA: Integrated in A50M FCH Memory: 4GB SO-DIMM DDR3 SDRAM LAN: 10/100/1000Base-T x 2 (connection:M12 A-coding, 8-pin female) ... -
Page 12: Lcd Specifications
LCD Specifications SPC-1840WP SPC-2140WP Display Type WXGA LED LCD Full HD LED LCD Size (diagonal) 18.5" 21.5" Maximum Resolution 1366 x 768 1920 x 1080 Maximum Colors 16.7 M 16.7 M Viewing Angle 170°/160° 178°/178° Luminance (cd / m2) Backlight Note! There might be several bright or dark pixels on the LCD. -
Page 13: I/O Ports Arrangement
I/O Ports Arrangement The arrangement of the I/O ports is shown in Figure 1.1 Figure 1.1 SPC-1840/2140 Rear View- I/O Port Arrangement VESA Mounting The SPC-1840/2140 have been designed with support for the VESA mount standard. Refer to figure 1.2. Supports 100mm VESA dimension. Use M4 screws (Length 8mm to 10 mm). -
Page 14: Dimensions And Cutout
Dimensions and Cutout SPC-1840WP Weight: 8kg Dimensions (W x H x D): – 488 x 309 x 65mm (19.2" x 21.2" x 2.6") 309 [12.17] 100.00 [3.94] Figure 1.3 SPC-1840WP Dimensions SPC-XX40 User Manual... - Page 15 SPC-2140WP Weight: 8.5kg Dimensions (W x H x D): – 558.4 x 349.8 x 65 mm (21.98” x 13.77” x 2.56”) 349.8[13.77] 100.00 [3.94] Figure 1.4 SPC-2140WP Dimensions SPC-XX40 User Manual...
- Page 16 SPC-XX40 User Manual...
-
Page 17: Chapter 2 System Setup
Chapter System Setup... -
Page 18: System Setup
System Setup You can easily get SPC started by following the below steps. Unpack the SPC package. Check the packing list at the beginning of this man- ual to make sure all items have been included. Figure 2.1 Unpack the Package Open side cover and then install 2.5"... - Page 19 Connect the power connector with M12 connector to the 24 V power lines. The power lines can either be of some power adapter or in-house power source. Pin Number Signal (Male) DC 24V- DC 24V- DC 24V+ M12-A-5P-M DC24V+ Power F_GND Figure 2.3 Pin Definition of Power Connector Figure 2.4 Power Receptor with M12 Connector...
-
Page 20: Installing The Drivers
SPC-1840/2140 will use built-in PCT touch driver of OS If operating under Windows 7 and Windows 8. 2.2.2 Installation of Watchdog driver Enter into Watchdog folder, double click AdvWDT icon, and then click "Next" under InstallShield Wizard window. Select "Advantech [SCH311X] WDT” and click “Next” Click “Install” SPC-XX40 User Manual... - Page 21 Click "Finish" to finish the installation Select “Yes, I want to restart my computer now” and click “OK” After installing Watchdog driver, a "Watchdog Service Configuration" icon will show in control panel. SPC-XX40 User Manual...
- Page 22 Double click the "Watchdog Service Configuration" icon, and you can configure the Watchdog timer function. SPC-XX40 User Manual...
-
Page 23: Installation Of Graphic Driver
2.2.3 Installation of graphic driver Enter into TS folder, enter into” graphic driver for Windows 7" Driver folder and double click setup icon, and then click “Next” under setup wizard window. Click “Install” Select “Express” and click “Next” SPC-XX40 User Manual... - Page 24 Click “Accept” Click “Finish” to finish the installation SPC-XX40 User Manual...
-
Page 25: Installation Of Lan Driver
2.2.4 Installation of LAN driver Enter into TS folder, enter into “Ethernet driver for Windows 7" Driver folder and double click setup icon, and then click “Next” under setup wizard window. Click ”Install” Click “Finish” to finish the installation SPC-XX40 User Manual... -
Page 26: Wake Up From Suspend Mode
Wake up from Suspend Mode SPC-1840 /2140 can wake up from Suspend Mode (S3) by touch and USB devices (For example USB mouse or USB keyboard). User can disable USB wake up function through BIOS setting as following steps. Press keyboard “delete” key in the BIOS setup utility, than select “Chipset / South Bridge”... -
Page 27: Features In Windows Embedded
Chapter Features in Windows Embedded... -
Page 28: Features In Windows Embedded
Advantech provides a pair of utilities to operate EWF, OSLock andOSUnLock. Refer the training slide in the folder, file name is “Advantech XPe Add-one.pdf”. -
Page 29: Appendix A M12 Connector I/O Pin Definition
Appendix M12 connector I/O pin definition... -
Page 30: Lan1 / Lan2 Pin Definition With M12 Connectors
LAN1 / LAN2 pin definition with M12 connectors Pin Number Signal (Female) TX_D1+ TX_D1- RX_D2+ BI_D3+ M12-A-8P-F BI_D3- RX_D2- BI_D4+ BI_D4- RS-232 pin definition with M12 connector RS-232 Pin Number Signal (Male) M12-A-8P-F USB pin definition with M12 connector Pin Number Signal (Female) M12-A-8P-F... -
Page 31: Power Input Pin Definition With M12 Connector
Power Input pin definition with M12 connector Pin Number Signal (Male) DC 24V- DC 24V- DC 24V+ M12-A-5P-M DC24V+ Power F_GND SPC-XX40 User Manual... - Page 32 SPC-XX40 User Manual...
-
Page 33: Appendix Bui Operating Process
Appendix UI Operating Process... -
Page 34: Ui Operating Process
UI Operating Process This section is to introduce how to operate HMI utility(GL_Utility), you can download the utility from Advantech's product support portal of SPC-1840WP/2140WP at http://support.advantech.com. See the process below: As you can find 2 function buttons in the lower right corner of front panel, represents “intelligent”... - Page 35 One press Home Key-> Home – Back to desktop (default setting) Home - Execute Home-key App (Set up in setting page) Long press Home Key-> Home - Long press to disable / enable touch function Note! When touch function is disabled, you'll see a message up in the lower right corner of screen SPC-XX40 User Manual...
- Page 36 SPC-XX40 User Manual...
- Page 37 One press Intelligent Key-> Intelligent - Advantech Intelligent Utility A. Quick start-> – Press “+” to add shortcut – Long press the icon to perform “right click” until an “X” mark appears in upper right corner to “delete” SPC-XX40 User Manual...
- Page 38 B. Setting -> Password confirmation for authority confirmation when first log in, default password is “1234” without input order to active. – Setting - Home-key: Select an execute file to set up as "Home-key" App, in default path is to show “desktop” SPC-XX40 User Manual...
- Page 39 – Setting - Brightness: Brightness control from 10 to 100 percent Note! If you use other brightness setting tools such as iManager, remember not to adjust below 10 percent to prevent a black screen. – Setting - Password: Change password function SPC-XX40 User Manual...
- Page 40 C. System management-> – System information: – Self Diagnosis: Note!* SPC-1840/2140 also provides open button code as following definition for customer's configuration to their Apps/SW applications. The codes are defined from general keyboard input. Table B.2: Button code definition One press Long press I key(icon) Ctrl+Shift+Alt+I...
- Page 41 SPC-XX40 User Manual...
- Page 42 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2013...
