1.5

Touchscreen Specifications

Touch Type: Projected capacitive

Base Glass Construction: Tempered glass

Light Transmission:

method accorded to ASTM D1003)
Controller: USB Interface

1.6

Power

Input Voltage: 24V

Power Consumption: 60W (Typical)

This product is intended to be supplied by a listed power adapter or DC power
source, rated 24Vdc, 2.5A minimum and Tma 55°C minimum, if you need further
assistance, please contact Advantech for further information.
1.7

I/O Ports Arrangement

The arrangement of the I/O ports is shown in Figure 1.1.

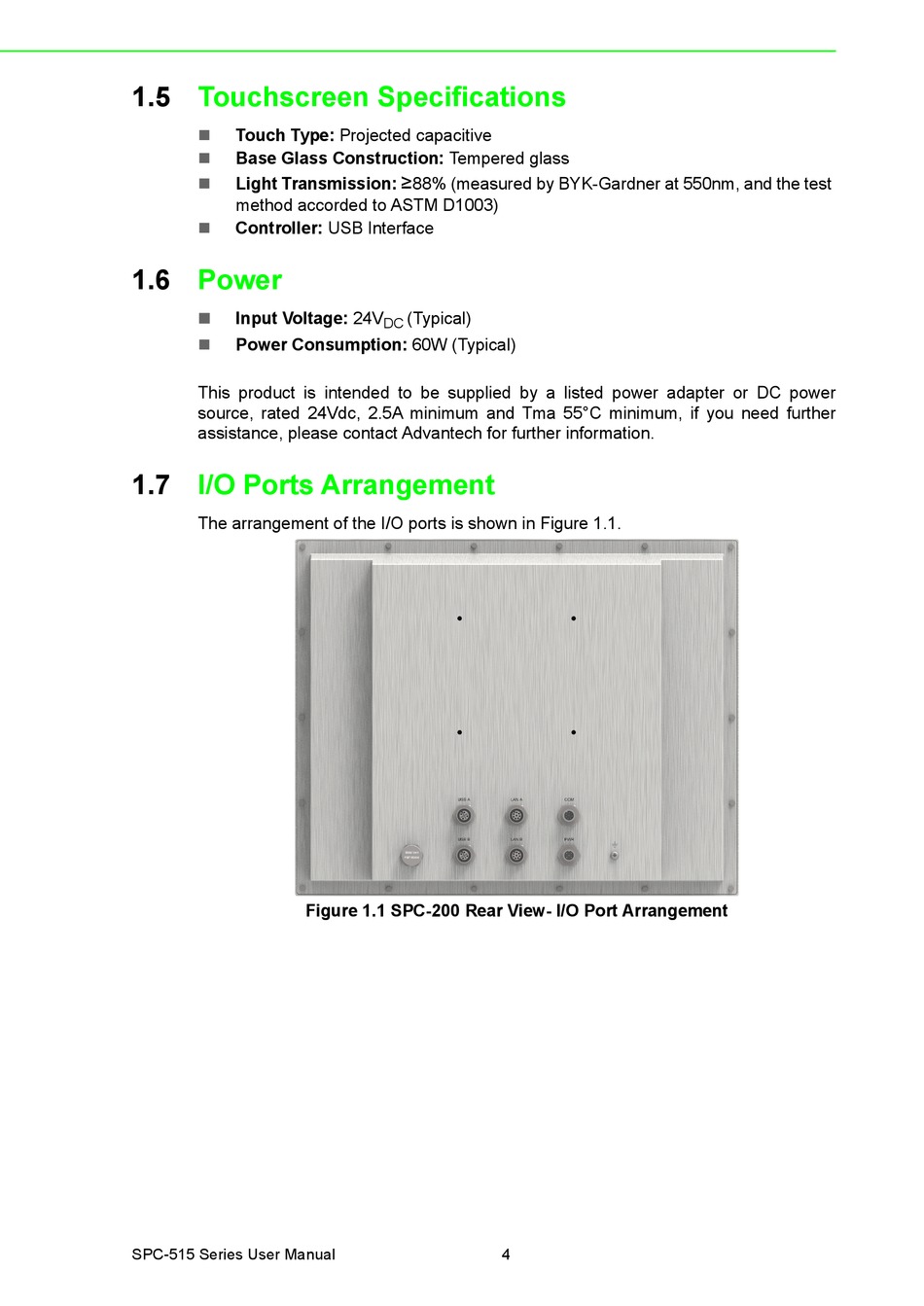

Figure 1.1 SPC-200 Rear View- I/O Port Arrangement
SPC-515 Series User Manual
≥
88% (measured by BYK-Gardner at 550nm, and the test
(Typical)
DC
4
