1.9
Dimensions and Cutout
SPC-1840WP
Weight: 8kg
Dimensions (W x H x D):
–
488 x 309 x 65mm (19.2" x 21.2" x 2.6")
SPC-XX40 User Manual
309 [12.17]
100.00 [3.94]

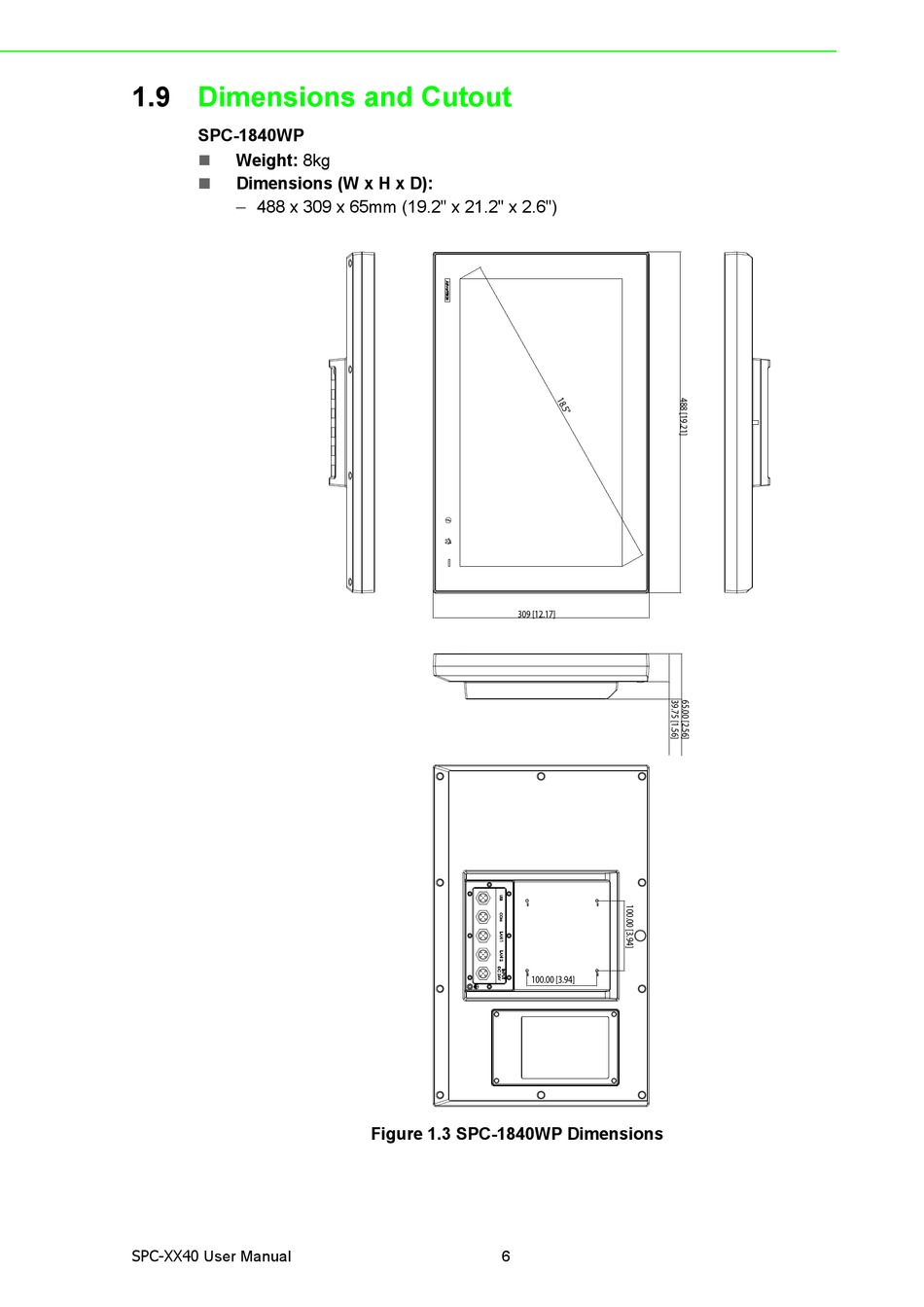

Figure 1.3 SPC-1840WP Dimensions
6
