1.5

Touchscreen Specifications

 Touch Type: Projected Capacitive
 Base Glass Construction: Tempered glass

Light Transmission:
method accorded to ASTM D1003)
 Controller: USB Interface
1.6

Power

Input Voltage: 24V

 Power Consumption: 60W (Typical)
This product is intended to be supplied by a Listed Power Adapter or DC power
source, rated 24Vdc, 2.5A minimum and Tma 55 degree C minimum, if need further
assistance, please contact Advantech for further information.
1.7

I/O Ports Arrangement

The arrangement of the I/O ports is shown in Figure 1.1.

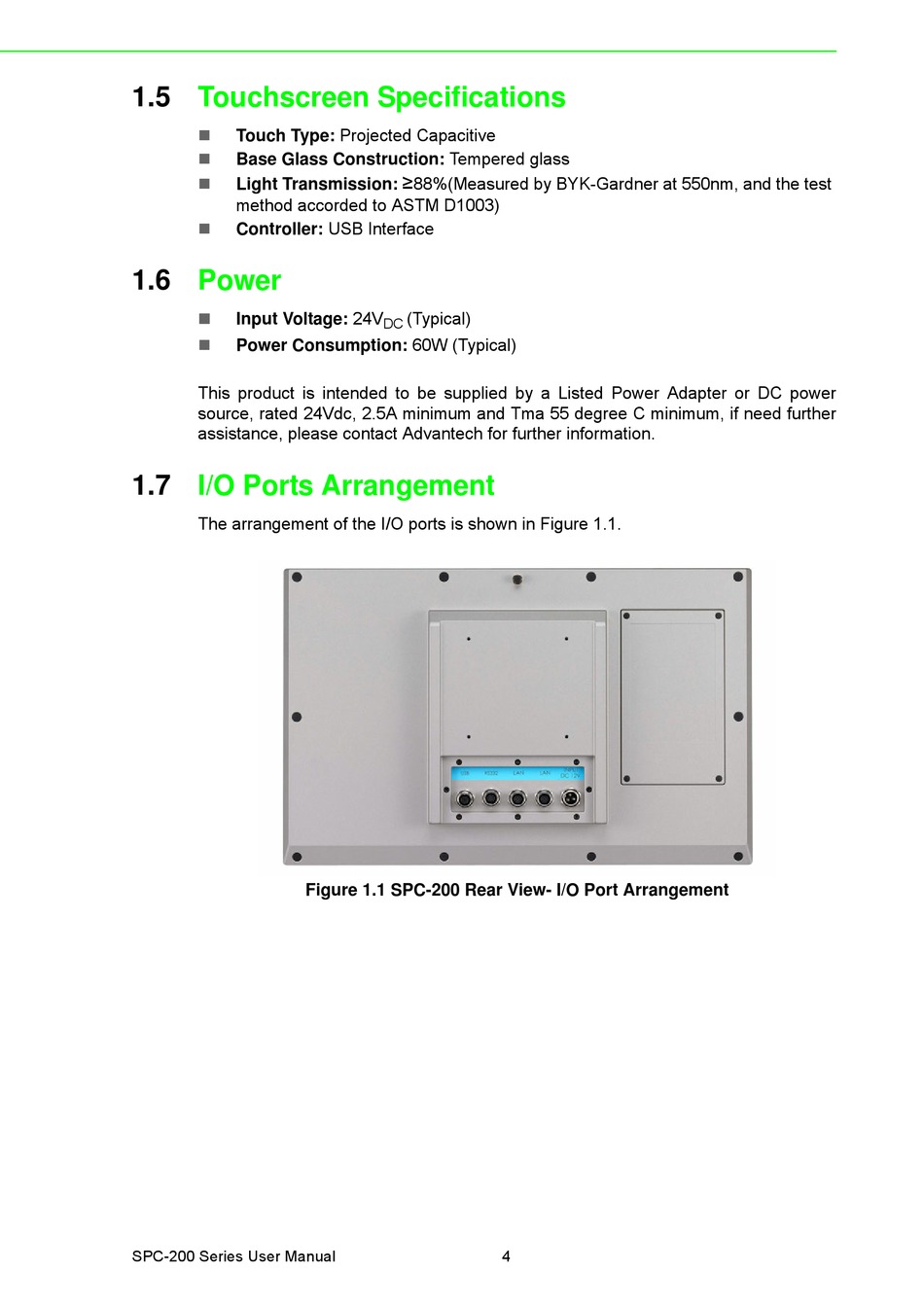

Figure 1.1 SPC-200 Rear View- I/O Port Arrangement
SPC-200 Series User Manual
≥
88%(Measured by BYK-Gardner at 550nm, and the test
(Typical)
