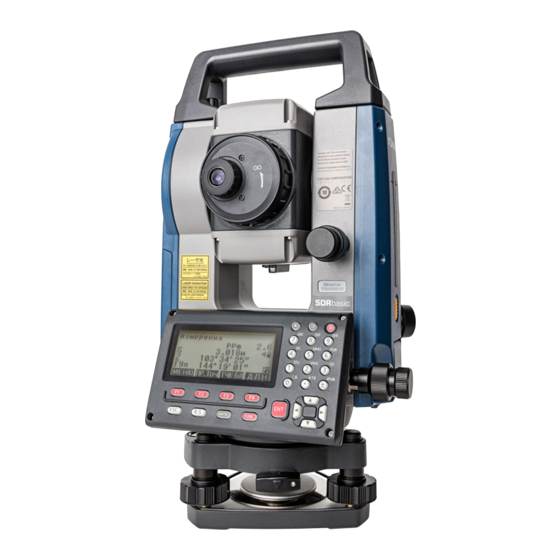

Sokkia iM-50 Series Operator's Manual
  1. Manuals
  2. Brands
  3. Sokkia Manuals
  4. Measuring Instruments
  5. iM-50 Series
  6. Operator's manual

Sokkia iM-50 Series Operator's Manual

Sokkia
Hide thumbs
Table of Contents

Advertisement

Quick Links

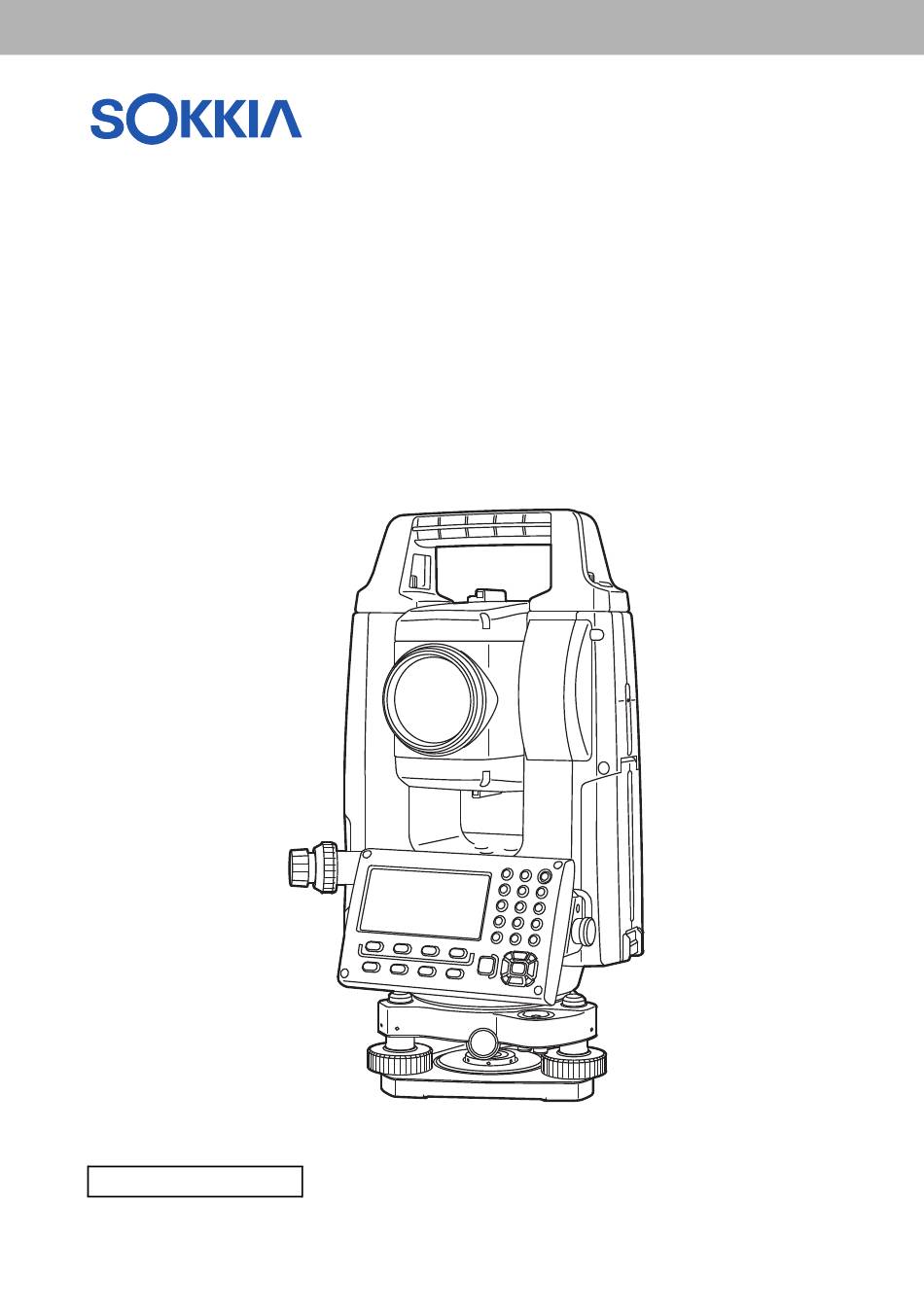

SURVEYING INSTRUMENTS
iM-50 series
intelligence Measurement Station
Class 3R Laser Product
OPERATOR'S MANUAL
1025821-02-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iM-50 Series and is the answer not in the manual?

Questions and answers

Marek Půlpán
June 3, 2025

Dobrý den, má Sokkia im 55, jaký koliv servomotorek pro vyrovnání kompenzátoru. Děkuji za odpověď.

0

Related Manuals for Sokkia iM-50 Series

Summary of Contents for Sokkia iM-50 Series

  • Page 1 SURVEYING INSTRUMENTS iM-50 series intelligence Measurement Station Class 3R Laser Product OPERATOR'S MANUAL 1025821-02-A...
  • Page 2 <Screen title> etc.: Indicates screen titles. Notes regarding manual style • Except where stated, “iM” means iM-50 series in this manual. • Except where stated, instrument with display on both sides is used for illustration. • Screens appearing in this manual are based on the setting "Dist. reso: 1 mm". When "Dist. reso: 0.1 mm" is selected, the number of decimal places for distance and atmospheric condition input values will be increased by one.

  • Page 3: Table Of Contents

    CONTENTS 1. PRECAUTIONS FOR SAFE OPERATION ..............1 2. PRECAUTIONS ......................4 3. LASER SAFETY INFORMATION .................. 7 4. PRODUCT OUTLINE ....................9 Parts of the Instrument ..................9 Mode Structure ....................12 Bluetooth Wireless Technology ................13 5. BASIC OPERATION ....................15 Basic Key Operation ...................
  • Page 4 18. POINT PROJECTION ....................79 18.1 Defining Baseline ....................79 18.2 Point Projection ....................79 19. TOPOGRAPHY OBSERVATION ................81 19.1 Observation Setting .................... 82 19.2 Observation ......................83 20. OFFSET MEASUREMENT ..................86 20.1 Single-distance Offset Measurement ..............86 20.2 Angle Offset Measurement .................
  • Page 5 32.1 Inserting the USB flash drive ................173 32.2 Selecting T type/S type ..................174 32.3 Storing JOB Data to USB flash drive ..............175 32.4 Loading Data in USB flash drive to the iM ............177 32.5 Displaying and Editing Files ................178 32.6 Formatting the Selected External Memory Media ..........

  • Page 6: Precautions For Safe Operation

    1. PRECAUTIONS FOR SAFE OPERATION For the safe use of the product and prevention of injury to operators and other persons as well as prevention of property damage, items which should be observed are indicated by an exclamation point within a triangle used with WARNING and CAUTION statements in this operator’s manual.
  • Page 7 1. PRECAUTIONS FOR SAFE OPERATION Power Supply  Warning Do not disassemble or rebuild the battery or the battery charger, nor expose to heavy shocks  or vibration. Sparking, fire, electric shock or burns could result.  Do not short circuit. Heat or ignition could result. Do not place articles such as clothing on the battery charger while charging batteries.
  • Page 8 1. PRECAUTIONS FOR SAFE OPERATION Bluetooth wireless technology  Warning  Do not use within the vicinity of hospitals. Malfunction of medical equipment could result. Use the instrument at a distance of at least 22 cm from anyone with a cardiac pacemaker. ...

  • Page 9: Precautions

    2. PRECAUTIONS Charging Battery • Be sure to charge the battery within the charging temperature range. Charging temperature range : 0 to 40°C • Use only the specified battery or the battery charger. Failures caused by using other batteries or battery chargers are out of warranty including the main unit.
  • Page 10 2. PRECAUTIONS Vertical and horizontal clamps • Always fully release the vertical/horizontal clamps when rotating the instrument or telescope. Rotating with clamp(s) partially applied may adversely affect accuracy. Tribrach • Always use the tribrach provided. During a traverse observation, it is recommended to use the same type of tribrach for the target as well for accurate observations.
  • Page 11 2. PRECAUTIONS Exporting this product (Relating EAR) • This product is equipped with the parts/units, and contains software/technology, which are subject to the EAR (Export Administration Regulations). Depending on countries you wish to export or bring the product to, a US export license may be required.

  • Page 12: Laser Safety Information

    3. LASER SAFETY INFORMATION The instrument is classified as the following class of Laser Product according to IEC Standard Publication 60825-1 Ed.3.0: 2014 and United States Government Code of Federal Regulation FDA CDRH 21CFR Part 1040.10 and 1040.11 (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.) Device Laser class...
  • Page 13 3. LASER SAFETY INFORMATION  Caution • Perform checks at start of work and periodic checks and adjustments with the laser beam emitted under normal conditions. • When the instrument is not being used, turn OFF the power and replace the lens cap. •...

  • Page 14: Product Outline

    4. PRODUCT OUTLINE Parts of the Instrument Parts and functions of the instrument Handle Instrument height mark Battery cover Operation panel Serial connector Circular level Circular level adjusting screws Base plate Levelling foot screw 10 Optical plummet focussing ring 11 Optical plummet eyepiece (10,11: Not included in instruments with laser plummet) 12 Display unit 13 Objective lens (Includes Laser-pointer function)
  • Page 15 4. PRODUCT OUTLINE  Instrument height mark The height of the instrument is as follows: • 192.5 mm (from tribrach mounting surface to this mark) • 236 mm (from tribrach plate to this mark) "Instrument height" is input when setting instrument station data and is the height from the surveying point (where the instrument is mounted) to this mark.
  • Page 16 4. PRODUCT OUTLINE Detaching the instrument from the tribrach 1. Turn the tribrach clamp counterclockwise to loosen. 2. Lift the instrument to detach. Attaching the instrument to the tribrach 1. Align (1) and (2) and lower the instrument onto the tribrach.

  • Page 17: Mode Structure

    4. PRODUCT OUTLINE Mode Structure The diagram below describes the different modes of the instrument and key operations for navigating between them. Star key Mode Dist+Coord Note L a s e r p l u m : O f f View L a s e r l e v.

  • Page 18: Bluetooth Wireless Technology

    4. PRODUCT OUTLINE Bluetooth Wireless Technology  • Bluetooth LAN function may not be built in depending on telecommunications regulations of the country or the area where the instrument is purchased. Contact your local dealer for the details. • Use of this technology must be authorized according to telecommunications regulations of the country where the instrument is being used.
  • Page 19 4. PRODUCT OUTLINE Refrain from using the iM in proximity to televisions and radios.  • Televisions and radios use a different frequency band to Bluetooth communications. However, even if the iM is used within proximity to the above equipment with no adverse effects with regard to Bluetooth communication, moving a Bluetooth compatible device (including the iM) closer to said equipment may result in electronic noise in sound or images, adversely affecting the performance of televisions and radios.

  • Page 20: Basic Operation

    5. BASIC OPERATION Learn basic key operations here before you read each measurement procedure. Basic Key Operation Starkey Illumination key Power key Display unit Softkey selection Power ON/OFF   "8. POWER ON/OFF" Lighting up the reticle/keys  Switches the reticle illumination and key light On/Off Switching to Starkey mode ...
  • Page 21 5. BASIC OPERATION Softkey operation  Softkeys are displayed on the bottom line of the screen. Select the function matching the softkeys {F1} to {F4} Toggle between OBS mode screen pages (when more than 4 softkeys {FUNC} are allocated) Inputting letters/figures ...
  • Page 22 5. BASIC OPERATION Selecting options  Move the cursor up/down   Move the cursor/selection item left/right or select other option {}/{} Accepts the option {ENT} Example: Select a reflector type 1. Press [EDM] in page 2 of OBS mode. 2.

  • Page 23: Display Functions

    5. BASIC OPERATION Display Functions Status screen Instrument name iM-52 rec 49999 S/N XX123456 Application Ver. X.XXXX̲XX software X.XXX version Job.JOB1 DATA CNFG iM-52 rec 49999 S/N XX123456 Date Date Jan/01/2017 Time 12:00:00 Time DATA CNFG iM-52 rec 49999 S/N XX123456 Internal Pt.
  • Page 24 5. BASIC OPERATION (1) Distance SD: Slope distance HD: Horizontal distance VD: Height difference Switching distance display status: "33.1 Observation Conditions - Angle/Tilt" (2) Vertical angle ZA: Zenith angle (Z=0) VA: Vertical angle (H=0/H=±90) To switch vertical angle/slope in %, press [ZA/%] Switching vertical angle display status: "33.1 Observation Conditions - Angle/Tilt"...

  • Page 25: Starkey Mode

    5. BASIC OPERATION (8) Bluetooth communication status :Connection established (flashing): Connecting (flashing): Waiting (flashing):Disconnecting Bluetooth device is OFF (9) Appears when laser beam is emitted for distance measurement (10) Input mode : Inputting capital letters and figures. : Inputting small letters and figures. : Inputting numbers.

  • Page 26: Using The Battery

    6. USING THE BATTERY Battery Charging Be sure to charge the battery fully before using it for the first time or after not using it for long periods.  • The charger will become rather hot during use. This is normal. •...

  • Page 27: Installing/Removing The Battery

    6. USING THE BATTERY  • Slots 1 and 2: The charger starts charging the battery mounted first. If you place two batteries in the charger, the battery in  slot 1 is charged first, and then the battery in slot 2. ( step 2) •...

  • Page 28: Setting Up The Instrument

    7. SETTING UP THE INSTRUMENT  • Mount the battery in the instrument before performing this operation because the instrument will tilt slightly if the battery is mounted after levelling. Centering PROCEDURE Centering with the optical plummet eyepiece 1. Make sure the legs are spaced at equal intervals and the head is approximately level.

  • Page 29: Levelling

    7. SETTING UP THE INSTRUMENT PROCEDURE Centering with the laser plummet eyepiece Laser plummet is available as a factory option depending on the country or the area where the instrument is purchased. 1. Set up the tripod and affix the instrument on the tripod head. ...
  • Page 30 7. SETTING UP THE INSTRUMENT 2. Roughly center the bubble in the circular level by either shortening the tripod leg closest to the offcenter direction of Tripod legs adjustment the bubble or by lengthening the tripod leg farthest from the offcenter direction of the bubble.

  • Page 31: Power On/Off

    8. POWER ON/OFF  • When the power cannot be switched ON or the power is soon turned OFF even though the battery is mounted, there may be almost no battery power remaining. Replace it with a fully charged battery. ...
  • Page 32 8. POWER ON/OFF PROCEDURE Power OFF 1. Press and hold (about 1 sec) the power key on the operation panel.  • When there is almost no battery power remaining, the battery icon in the Status icon will start to blink.In this event, stop measurement, switch off the power and charge the battery or replace with a fully charged battery.

  • Page 33: Connecting To External Devices

    9. CONNECTING TO EXTERNAL DEVICES The instrument supports Bluetooth wireless technology and RS232C for communication with data collectors etc. Inputting/outputting data is possible by inserting a USB flash drive. Read this manual in conjunction with the operator’s manual for the relevant external device. ...
  • Page 34 9. CONNECTING TO EXTERNAL DEVICES 5. Select "S-Type". Comms Type T t ype  S t ype • "T-Type" is for an instrument using GTS commands. 6. Perform communication settings for S-type. Check sum : Items set and options (*: Factory setting) (1) Check sum : Yes/No* ...

  • Page 35: Communication Between The Im And Companion Device

    9. CONNECTING TO EXTERNAL DEVICES  CR, LF Select the option Off or On for carrige return (CR) and line feed when collecting measurement data with a computer.  ACK mode When communicating to an external device, the protocol for handshaking can omit the [ACK] coming from the external device, so data is not sent again.

  • Page 36: Connection Via Rs232C Cable

    9. CONNECTING TO EXTERNAL DEVICES 2. Check that the iM is in waiting status (Bluetooth symbol is (flashing)) and start communication by the data collector.  Manual of the program mounted on the data collector  The Bluetooth icon: "5.2 Display Functions" HA-R •...
  • Page 37 9. CONNECTING TO EXTERNAL DEVICES 5. Select "RS232C" in <Communication Setup>. Comms setup Comms mode Comms type RS232C Bluetooth 6. Perform communication setting for RS232C. Baud rate : 9600bps Items set and options (*: Factory setting) Data bits : 8bit (1) Baud rate : 1200/2400/4800/9600*/19200/ Parity...

  • Page 38: Target Sighting And Measurement

    10.TARGET SIGHTING AND MEASUREMENT 10.1 Manually Sighting the Target  • When sighting the target, strong light shining directly into the objective lens may cause the instrument to malfunction. Protect the objective lens from direct light by attaching the lens hood. Observe to the same point of the reticle when the telescope face is changed.

  • Page 39: Angle Measurement

    11.ANGLE MEASUREMENT This section explains the procedures for basic angle measurement in Observation mode. 11.1 Measuring the Horizontal Angle between Two Points (Horizontal Angle 0°) Use the “0SET” function to measure the included angle between two points. The horizontal angle can be set to 0 at any direction.

  • Page 40: Setting The Horizontal Angle To A Required Value (Horizontal Angle Hold)

    11. ANGLE MEASUREMENT 11.2 Setting the Horizontal Angle to a Required Value (Horizontal Angle Hold) You can reset the horizontal angle to a required value and use this value to find the horizontal angle of a new target. PROCEDURE Entering the horizontal angle 1.

  • Page 41: Horizontal Angle Repetition

    11. ANGLE MEASUREMENT 2. Set the known point coordinate. Enter the coordinate for the S E T H a n g l e / B S first point, and press [OK]. N B S : 1 0 0 . 0 0 0 E B S : 1 0 0 .

  • Page 42: Angle Measurement And Outputting The Data

    11. ANGLE MEASUREMENT 5. Sighting the second target a second time, press [OK]. The added value of the horizontal angle is displayed on the second line “HARp” and the average value of the horizontal angle is displayed on the fourth line “Ave.”. CLEAR •...

  • Page 43: Distance Measurement

    12.DISTANCE MEASUREMENT Perform the following settings as preparation for distance measurement. • Distance measurement mode • Target type • Prism constant correction value • Atmospheric correction factor • EDM ALC "33.1 Observation Conditions - Angle/Tilt"/"33.2 Observation Conditions - Dist"  Caution •...

  • Page 44: Distance And Angle Measurement

    12. DISTANCE MEASUREMENT 3. Press [S-LEV]. <Aiming> is displayed. The intensity of the light of the returned signal is displayed  by a gauge. MEAS • The more displayed, the greater the quantity of reflected light. • If “*” is displayed, only enough light for the measurement is returned.

  • Page 45: Recalling The Measured Data

    12. DISTANCE MEASUREMENT • Each time [SHV] is pressed, SD (Slope distance), HD (Horizontal distance) and VD (Height difference) are displayed alternately. MEAS 0SET COORD  • Audio tones differ depending on the target type; prism or others. • If the single measurement mode is selected, measurement automatically stops after a single measurement. •...

  • Page 46: Coordinate Measurement And Outputting The Data

    12. DISTANCE MEASUREMENT 2. Allocate the [HVDOUT-T] or [HVDOUT-S] softkey to the OBS mode screen. "33.11 Allocating Key Functions"  • Pressing the softkey outputs data in the following format. [HVDOUT-T]: GTS format [HVDOUT-S]: SET format 3. Sight the target point. 4.

  • Page 47: Rem Measurement

    12. DISTANCE MEASUREMENT 12.6 REM Measurement An REM measurement is a function used to measure the height to a point where a target cannot be directly installed such as power lines, overhead cables and bridges, etc. The height of the target is calculated using the following formula. Ht = h1 + h2 h2 = S sin θ...
  • Page 48 12. DISTANCE MEASUREMENT 4. Enter into the REM menu. Select "REM." Occ.Orien. 5. Sight the target. Pressing [REM] starts REM measurement. The height from the ground to the object is displayed in  “Ht.”. HA-R 6. Press [STOP] to terminate the measurement operation. •...

  • Page 49: Setting Instrument Station

    13.SETTING INSTRUMENT STATION It is possible to set from the instrument station data to the backsight angle in a series of procedures. Setting Instrument Station Data • Key input "13.1 Entering Instrument Station Data and Azimuth Angle" Step 3 • Reading the registered coordinate "13.1 Entering Instrument Station Data and Azimuth Angle"...
  • Page 50 13. SETTING INSTRUMENT STATION 3. Select “Occ.orien.”. Coord. Input the following data items. Occ. Orien. (1) Instrument station coordinates (Occupied point Observation coordinates) (2) Point name (PT) (3) Instrument height (HI) (4) Code (CD) 0.000 (5) Operator 0.000 (6) Date <Null>...
  • Page 51 13. SETTING INSTRUMENT STATION • Humidity range (%): 0 to 100 • The "Humid. (Humidity)" is displayed only when the "Humid.inp" is set to "Yes". "33.4 Observation Conditions - Atmosphere" • Above-described input ranges are the ranges when 1 mm is selected in "Dist.reso". When 0.1 mm is selected, values can be input to the first decimal place.
  • Page 52 13. SETTING INSTRUMENT STATION 2. Enter search criteria. 1 0 0 Enter following items. C r i t e r i a : C o m p l e t e (1) Coordinate point name D i r e c t . : (2) Search condition (complete match) (3) Search direction 3.
  • Page 53 13. SETTING INSTRUMENT STATION 2. Press [BS NEZ] after entering the instrument station data to Backsight enter a backsight point coordinate. 100.000 NBS: 100.000 EBS: • When you wish to read in the registered coordinate data, ZBS: <Null> press [LOAD]. LOAD ""13.1 Entering Instrument Station Data and Azimuth Angle"...

  • Page 54: Setting Instrument Station Coordinate With Resection Measurement

    13. SETTING INSTRUMENT STATION 13.2 Setting Instrument Station Coordinate with resection measurement Resection is used to determine the coordinates of an instrument station by performing multiple measurements of points whose coordinate values are known. Registered coordinate data can be recalled and set as known point data.
  • Page 55 13. SETTING INSTRUMENT STATION 3. Select "Setting". Resection. Elevation Setting 4. Set for resection measurement. Setting Set the following items: F1/F2 Obs (1) RL observation (F1/F2 Obs): : On Observe every point in Face 1 and 2 in resection. " 13.2.3 RL observation in resection measurement" Set "F1/F2 Obs"...
  • Page 56 13. SETTING INSTRUMENT STATION 13.2.2 Coordinate Resection Measurement Observe existing points with known coordinate data to calculate the coordinate value for the instrument station. • Between 2 and 10 known points can be measured by distance measurement, and between 3 and 10 known points by angle measurement.
  • Page 57 13. SETTING INSTRUMENT STATION 7. Repeat procedures 4 to 6 in the same way from the second point. When the minimum quantity of observation data required for the calculation is present, [CALC] is displayed. 8. Press [CALC] to automatically start calculations after 3rd P T observations of all known points are completed.
  • Page 58 13. SETTING INSTRUMENT STATION Pressing [OK] sets the direction angle and instrument 100.001 station data, and then returns to <Coord.>. 100.009 9.999 PNT-001 1.200m LOAD • Pressing [REC] displays the backsight point recording screen. Press [OK] to the following data. Instrument station data, backsight station data, known point HA-R 1 2 0...
  • Page 59 13. SETTING INSTRUMENT STATION 5. Press [Yes] to use the measurement results of the first Resection 1st R known point in Face 1. 525.450m • You can input target height here. HA-R 1 2 0 1.400m 6. Measure the first known point in Face 2. Resection 1st L "L"...
  • Page 60 13. SETTING INSTRUMENT STATION 13.2.4 Height Resection Measurement Only Z (height) of an instrument station is determined by the measurement. • Known points must be measured by distance measurement only. • Between 1 and 10 known points can be measured. PROCEDURE 1.
  • Page 61 13. SETTING INSTRUMENT STATION 10.If there are problems with the results of a point, align the cursor with that point and press [OMIT]. “*” is displayed on - 0 . 0 0 3 1 s t the left of the point. - 0 .
  • Page 62 13. SETTING INSTRUMENT STATION  Precaution when performing resection  • Instrument station may not be calculated when the included angles between the known points and the station point are too narrow. Especially when the instrument station and the known points are far away, it is difficult to know that the included angles between the known points are narrow.

  • Page 63: Coordinate Measurement

    14.COORDINATE MEASUREMENT By performing coordinate measurements it is possible to find the 3-dimensional coordinates of the target based on station point coordinates, instrument height, target height, and azimuth angles of the backsight station which are entered in advance. • EDM setting can be done in coordinate measurement menu. Setting items: "33.3 Observation Conditions - Reflector (Target)"...
  • Page 64 14. COORDINATE MEASUREMENT 2. In the third page of OBS mode screen, press [MENU], then select "Coordinate". 3. Select "Occ.orien." to set the instrument station data and Coord. azimuth angle of the backsight point. Occ.Orien. Observation 4. In <Coord>, select "Observation". Pressing [MEAS] will Coord.

  • Page 65: Setting-Out Measurement

    15.SETTING-OUT MEASUREMENT Setting-out measurement is used to set out the required point. The difference between the previously input data to the instrument (the setting-out data) and the measured value can be displayed by measuring the horizontal angle, distance or coordinates of the sighted point. The horizontal angle difference and distance difference are calculated and displayed using the following formulae.
  • Page 66 15. SETTING-OUT MEASUREMENT 2. Select "Occ.orien." to set the instrument station data and azimuth angle of the backsight point. "13.1 Entering Instrument Station Data and Azimuth Angle PROCEDURE Reading in Registered Coordinate Data" 3. Select “S-O data”. <S-O Coord> is displayed. Occ.Orien S-O data Observation...

  • Page 67: Distance Setting-Out Measurement

    15. SETTING-OUT MEASUREMENT 8. Move the prism forward and backward until the setting-out distance is 0 m. If S-OΔHD is “+”, move the prism toward yourself, if it is “-”, move the prism away from yourself. • By pressing [← →], an arrow pointing to the left or right Back displays which direction the target should be moved.
  • Page 68 15. SETTING-OUT MEASUREMENT 3. Select “S-O data.” 4. Press [DISP] to change the distance input mode to <S-O S-O HD H>. • Each time [DISP] is pressed: S-O Coord (coordinates), S- H d i s t : 0 . 0 0 0 O HD (horizontal distance), S-O SD (slope distance), S-O H a n g : VD (height difference), S-O Ht.

  • Page 69: Rem Setting-Out Measurement

    15. SETTING-OUT MEASUREMENT 10.Press {ESC} to return to <S-O>. • When [LOAD] was used in step 4, the list of registered coordinates is restored. Continue setting-out measurement. • [REC]: records measurement results Recording method: "28. RECORDING DATA - TOPO MENU -" 15.3 REM Setting-out Measurement To find a point where a target cannot be directly installed, perform REM setting-out measurement.

  • Page 70: Setting-Out Line

    16.SETTING-OUT LINE Setting-out line is used for setting out a required point at a designated distance from the baseline and for finding the distance from the baseline to a measured point. 2nd Pt. Fill Grade 1st Pt. Baseline Offset Length Azimuth 16.1 Defining Baseline To perform setting-out line measurement, first, define the baseline.
  • Page 71 16. SETTING-OUT LINE 4. Enter the first point data and press [OK]. D e f i n e 1 s t P T 1 1 3 . 4 6 4 N p : • When [LOAD] is pressed, registered coordinates can be 9 1 .
  • Page 72 16. SETTING-OUT LINE 12.Press [OK] on the screen of step 11 to define the baseline. S e t - o u t l i n e <Set-out line> is displayed. Move to setting-line P o i n t measurement. L i n e "16.2 Setting-out Line Point"/"16.3 Setting-out Line Line"...

  • Page 73: Setting-Out Line Point

    16. SETTING-OUT LINE • Scale factor settings can be set in the screen shown at A z m t h 93 20 right. 13. 003m H c a l c 17. 294m H m e a s 1. 000091 S c a l e X S c a l e Y 1.
  • Page 74 16. SETTING-OUT LINE 2. Set the following items. S e t - o u t l i n e (1) Incr: Increment by which line length and offset can be I n c r 1 . 0 0 0 m decreased/increased using the arrow softkeys.

  • Page 75: Setting-Out Line Line

    16. SETTING-OUT LINE 2. Press [OFFSET] to display <Baseline offset>. S e t - o u t l i n e I n c r 1 . 0 0 0 m 0 . 0 0 0 L i n e 0 .
  • Page 76 16. SETTING-OUT LINE PROCEDURE 1. Select “Line” in <Set-out line>. S e t - o u t l i n e P o i n t L i n e 2. Enter the offset value. S e t - o u t l i n e •...

  • Page 77: Setting-Out Arc

    17.SETTING-OUT ARC This mode allows the operator to define an arc from various arc parameters, such as From Pt. coordinates, and set out this arc as well as points (offsets) along it. Tangent length Intersection To Pt. Direction Radius Offset Angle From Pt.
  • Page 78 17. SETTING-OUT ARC 4. Enter the arc From point data and press [OK]. 5. Press {}/{} to select coordinates then press [OK]. S e l e c t P t . : Enter arc To point. To/Center : Enter arc To point and Center point. To/Intersect : Enter arc To point and Intersect point (intersection of the tangents).
  • Page 79 17. SETTING-OUT ARC  • It is also possible to perform setting-out arc measurement by pressing [S-O ARC] when allocated to the OBS mode screen.  Allocating [S-O ARC]: "33.11 Allocating Key Functions" PROCEDURE Defining by observation 1. In the second page of OBS mode screen, press [MENU], then select "Set-out arc".
  • Page 80 17. SETTING-OUT ARC 9. Enter other arc parameters. D i r e c t i o n : L e f t (1) Direction (whether the arc turns right/left from the From R a d i u s : < N u l l > point) <...
  • Page 81 17. SETTING-OUT ARC  Specifying points and curve parameters Parameters that can be entered may be restricted depending on the points specified in step 5/6. Parameters that can be entered are marked with a circle ( ○ ). Those that cannot are marked with a cross ( × ). 　Parameters Radius Angle...

  • Page 82: Setting-Out Arc

    17. SETTING-OUT ARC 17.2 Setting-out Arc Setting-out arc measurement can be used to find the coordinates of required points along the arc by inputting the arc (or chord) length and offset based on the arc. Offset Chord • Before performing setting-out arc, the arc must be defined. PROCEDURE 1.
  • Page 83 17. SETTING-OUT ARC PROCEDUREOffsetting the arcline The arcline can be offset in three dimensions using four methods: lateral offset, rotation angle offset, lengthwise offset, and height offset. Rotation Lateral offset angle offset Lengthwise offset Height offset 1. Select “Set-out arc” in <Set-out arc>. 2.

  • Page 84: Point Projection

    18.POINT PROJECTION Point projection is used for projecting a point onto the baseline. The point to project can be either measured or input. Displays the distances from the first point and point to project to the position at which a line extending from point to project intersects the baseline at right angles.
  • Page 85 18. POINT PROJECTION 2. Select "Point Projection" in <Point Projection>. Point projection Stn. Orien. Define baseline Point projection 3. Enter the point coordinate. P o i n t p r o j e c t i o n 1 0 3 . 5 1 4 N p : •...

  • Page 86: Topography Observation

    19.TOPOGRAPHY OBSERVATION In topography observation, the instrument observes each target point once, clockwise from the backsight direction and record the observed data. It is also possible to conduct topography RL observation which observes the target point once from each of the "Right" and the "Left" of the scope. Target point Topography observation T1 (backsight direction)

  • Page 87: Observation Setting

    19. TOPOGRAPHY OBSERVATION 19.1 Observation Setting Perform observation setting prior to topography observation. • Up to 40 collimation points can be registered. • It is possible to register up to 8 combination patterns for the number of distance sets, the number of distance readings, Yes or No for RL observation, pre-entered point registration, backsight distance measurement and backsight distance check.

  • Page 88: Observation

    19. TOPOGRAPHY OBSERVATION 6. Register collimation point. PreenterPt Set the name for the collimation point in advance. Press 01: T-1 [ADD], enter the point name and press [OK] to register. 02: T-3 After registering the point to be measured, press [OK] to move to measurement.
  • Page 89 19. TOPOGRAPHY OBSERVATION 2. Measure the first direction. Topography Collimate the first target. Press [ANGLE] or [MEAS] to start measuring. In "D=", the setting value for the Number of HA-R distance readings (No. of Obs) is displayed. 0.000m AUTO0011 ANGLE MEAS •...
  • Page 90 19. TOPOGRAPHY OBSERVATION 2. Measure the target point in the R direction. Topography "R" appears next to the "Topography observation (Topography)" HA-R “PROCEDURE Topography Observation” step 2 0.000m AUTO0011 ANGLE MEAS 3. Record the measured data. “PROCEDURE Topography Observation” step 3 4.

  • Page 91: Offset Measurement

    20.OFFSET MEASUREMENT Offset measurements are performed in order to find a point where a target cannot be installed directly or to find the distance and angle to a point which cannot be sighted. • It is possible to find the distance and angle to a point you wish to measure (target point) by installing the target at a location (offset point) a little distance from the target point and measuring the distance and angle from the survey point to the offset point.

  • Page 92: Angle Offset Measurement

    20. OFFSET MEASUREMENT 6. Input the following items. (1) Horizontal distance from the target point to the offset point. (2) Direction of the offset point. • Direction of offset point ← : On the left of the target point. → : On the right of the target point. ↓...

  • Page 93: Two-Distance Offset Measurement

    20. OFFSET MEASUREMENT PROCEDURE 1. Set the offset points close to the target point (making sure the distance from the instrument station to the target point and the height of the offset points and the target point are the same), then use the offset points as the target. 2.
  • Page 94 20. OFFSET MEASUREMENT • It is possible to make this measurement easily using the optional equipment: the 2-point target (2RT500-K). When using this 2-point target, be sure to set prism constant to 0. "7.2 Levelling" How to use 2-point target (2RT500-K) •...

  • Page 95: Plane Offset Measurement

    20. OFFSET MEASUREMENT 6. Sight the 2nd target and press [MEAS]. The measurement results are displayed. Press [YES]. Confirm? 7. Enter the distance from the 2nd target to the target point and press {ENT}. The coordinates of the target point are displayed.
  • Page 96 20. OFFSET MEASUREMENT 2. Press [OFFSET] in page three of OBS mode to display <Offset>. 3. Select “Offset Plan” in <Offset>. Offset Occ.Orien. OffsetDist OffsetAng. Offset2D Offset Plan 4. Sight the first point (P1) on the plane and press [MEAS] to begin measurement.

  • Page 97: Column Offset Measurement

    20. OFFSET MEASUREMENT 20.5 Column Offset Measurement Find distance and coordinates of the center of the column. If circumscription point (P1) and two circumscription points (P2, P3) of a column can be measured directly, the distance to the center of the column (P0), coordinates and azimuth angle are calculated and displayed. •...
  • Page 98 20. OFFSET MEASUREMENT 6. Sight the right circumscription point (P3) and press [OK]. HA-R M e a s . R i g h t P t . O K ? 7. The coordinates of the target point (the center of the column O ffs et C l um P0) are displayed.

  • Page 99: Missing Line Measurement

    21.MISSING LINE MEASUREMENT Missing line measurement is used to measure the slope distance, horizontal distance, and horizontal angle to a target from the target which is the reference (starting point) without moving the instrument. • It is possible to change the last measured point to the next starting position. •...
  • Page 100 21. MISSING LINE MEASUREMENT The following values are displayed: SD: Slope distance of the starting position and 2nd target. HD: Horizontal distance of the starting position and 2nd 20.757m position. 27.345m 1.012m VD: Height difference of the starting position and 2nd target. MOVE MEAS •...
  • Page 101 21. MISSING LINE MEASUREMENT • When [MOVE] is pressed, the last target measured becomes the new starting position to perform missing line measurement of the next target. "21.2 Changing the Starting Point" 5. Press {ESC} to end missing line measurement. PROCEDURE Calculating from input coordinates 1.

  • Page 102: Changing The Starting Point

    21. MISSING LINE MEASUREMENT • When [S/%] is pressed, the distance between two points (S) is displayed as the gradient between two points. • Press [MEAS] to observe the starting position.  "PROCEDURE Measuring using observation" • When [MOVE] is pressed, the last target measured becomes the new starting position to perform missing line measurement of the next target.
  • Page 103 21. MISSING LINE MEASUREMENT 3. The last target measured is changed to the new starting position. Perform missing line measurement. "21.1 Measuring the Distance between 2 or more Points".

  • Page 104: Surface Area Calculation

    22.SURFACE AREA CALCULATION You can calculate the area of land (slope area and horizontal area) enclosed by three or more known points on a line by inputting the coordinates of the points. Input Output Coordinates : P1 (N1, E1, Z1) Surface area: S (slope area and horizontal area) P5 (N5, E5, Z5) •...
  • Page 105 22. SURFACE AREA CALCULATION 4. Sight the first point on the line enclosing the area, and press [OBS]. • The tilt screen is displayed if the instrument is out of level. Level the instrument. LOAD "7.2 Levelling" 12.345 5. Press [MEAS] to begin observation. 137.186 The measured values are displayed.
  • Page 106 22. SURFACE AREA CALCULATION 4. Press [LOAD] to display the list of coordinate data. Pt_01 :Known point date saved in the current JOB or in the Coordinate Search JOB. Crd./ Occ :Coordinate data saved in the current JOB or in the Coordinate Search JOB.

  • Page 107: Intersections

    23.INTERSECTIONS The following two types of intersection calculation are available. Select a suitable intersection type in advance. Selecting an intersection type: "33.5 Observation Conditions - Other" Type A Selectable calculation methods are as follows. • 1 pt, Azimuth • Extend "23.1.1 1 pt, Azimuth"...
  • Page 108 23. INTERSECTIONS • Intersections survey screens contain the [REC] and [S-O] softkeys. 1pt, Azi m uth 345. 678 -876.543 R E C S - O • Press [REC] to record measurement results as a known point in the JOB. r e c 3 0 0 0 3 4 5 .
  • Page 109 23. INTERSECTIONS 4. Input azimuth angle and distance from known point, then 2:A zi m ut h press [OK]. Coordinates for the target point are displayed. 0. 0000 3: D i st 0. 000m 5. Press [OK] to return to the screen in step 3 and continue 1pt, A zi m uth measurement as necessary.
  • Page 110 23. INTERSECTIONS 5. Input horizontal angle and distance from instrument station, 3:A ngl e then press [OK]. Coordinates for the target point are 0. 0000 displayed. 4: D i st 0. 000m 6. Press [OK] to return to the screen in step 3 and continue 2pt , Angl e measurement as necessary.
  • Page 111 23. INTERSECTIONS 4. Input coordinates for the second, third, and fourth points ("Line A-2", "Line B-1", and "Line B-2").  step 3 5. Press [OK] to return to the screen in step 3 and continue 4 p t measurement as necessary. 345.678 -876.543 •...
  • Page 112 23. INTERSECTIONS 4. Input radius for the first circle "R1" and press [OK]. 2: R 1 100. 000 5. Input coordinates for the second center point and radius for the second circle ("Center2" and "R2").  steps 3 to 4 6.
  • Page 113 23. INTERSECTIONS 4. Input coordinates for the second point. step 3 5. Input distance from the first point to the target point and 3: D i st press [OK]. 280.000 6. Press [OK] to return to the screen in step 3 and continue E xtend measurement as necessary.
  • Page 114 23. INTERSECTIONS 5. Input the number of segments you wish to divide the 3: D i vi de distance into and press [OK]. 6. Coordinates for each dividing point are displayed on D i vi de consecutive screens. To switch between result screens, 345.678 press {}/{}.

  • Page 115: Intersections (Type B)

    23. INTERSECTIONS 5. Input pitch and press [OK]. 3: Pi t ch 30. 000 6. Coordinates for each calculated point are displayed on Pi t ch consecutive screens. To switch between result screens, 345. 678 press {}/{}. -876. 543 Press [OK] to return to the screen in step 3 and continue 2/ 5 measurement as necessary.
  • Page 116 23. INTERSECTIONS PROCEDURE 1. In the second page of the OBS mode screen, press Intersect. [MENU], then select "Intersect.". Traverse Road Xsection 2. Enter the 1st point data and press [NEXT]. D e f i n e 1 s t P T 1 1 3 .
  • Page 117 23. INTERSECTIONS 5. Press [OK]. The coordinate value of the intersection point is 4 5 0 0 ’ 0 0 " A z m t h 1 calculated and displayed. H . d i s t 1 < N u l l > <...

  • Page 118: Traverse Adjustment

    24.TRAVERSE ADJUSTMENT Measurement of a traverse begins with observation of the backsight station and foresight station. The instrument station is then moved to the foresight station and the previous instrument station becomes the backsight station. Observation is performed again at the new position. This process is repeated for the length of the route.
  • Page 119 24. TRAVERSE ADJUSTMENT • Enter values manually when there are no coordinates Occ: saved for the specified instrument station. Press [OK] to proceed to step 4. <Null> PT T-0001 LOAD 4. Enter the point name of the backsight station for the start T r a v e r s e s t a r t p t .
  • Page 120 24. TRAVERSE ADJUSTMENT 7. Enter the point name of the backsight station for the end T r a v e r s e e n d p t . point and press {ENT}. The calculated azimuth angle is displayed. Occ: T - 0 0 0 1 F s : T - 0 0 0 2...
  • Page 121 24. TRAVERSE ADJUSTMENT  Allocating [TRAV]: "33.11 Allocating Key Functions" • Traverse adjustment results of traverse points, points observed from traverse points and traverse adjustment data will be saved in the currently selected JOB as Notes data. Data including the distributed closure error will also be saved in the currently selected JOB as ordinary coordinate data.
  • Page 122 24. TRAVERSE ADJUSTMENT The automatic route search function cannot be used in the following case. • The final measurement is to a traverse point on the traverse route other than the Start pt.  Adjustment methods Adjustment is applied to results for traverse points and points observed from traverse points. Adjustment methods and distribution options selected in step 8 are described below.

  • Page 123: Route Surveying

    25.ROUTE SURVEYING This mode allows a variety of route surveying options widely used in civil engineering measurement. Each menu allows the operator to initiate a string of successive configuration/calculation/record/setting-out operations. • The orientation of the instrument station and backsight station can be set as necessary. For backsight station settings, see"13.1 Entering Instrument Station Data and Azimuth Angle".

  • Page 124: Straight Line Calculation

    25. ROUTE SURVEYING 25.2 Straight Line Calculation The coordinates of the center peg and width pegs for a straight line can be found from the coordinates of the reference point and IP point. It is then possible to proceed with the setting-out of the center peg and width pegs. Reference point (P1) IP point (P2) Follow-up distance (DL)
  • Page 125 25. ROUTE SURVEYING 4. Input the coordinates of the IP point, then press [OK]. L i n e / I P N p : 2 0 0 . 0 0 0 • The azimuth angle to the IP point can be set by pressing E p : 2 0 0 .

  • Page 126: Circular Curve Calculation

    25. ROUTE SURVEYING 25.3 Circular Curve Calculation The coordinates of the center peg and width pegs on a circular curve can be found from the coordinates of the BC point and IP point. It is then possible to proceed with the setting-out of the center peg and width pegs. BC point (P1) IP point (P2) Circular curve radius (R)

  • Page 127: Spiral Curve

    25. ROUTE SURVEYING 7. Press {ESC} twice to finish Circular Curve calculation and return to <Road>. • Press [WIDTH] to move to the width peg setting screen.  "25.2 Straight Line Calculation" • The center peg can be set-out by pressing [S-O] ...
  • Page 128 25. ROUTE SURVEYING Calculation using KE2 as reference: "KE KA Calculation"  KE point (P1) KE tangential angle (AZ) Clothoid parameter A KE-KA KE to KA curve length (L) Curve length KE follow-up distance (DL1) Target point follow-pu distance (DL2) Route width (BL) Q Stationing Chainage Stationing Chainage...
  • Page 129 25. ROUTE SURVEYING 5. Enter the curve direction, parameter A, offset, and follow-up S p i r a l / C L p e g distance. D i r e c t . R i g h t P a r a A 8 0 .
  • Page 130 25. ROUTE SURVEYING 5. Enter the curve direction, parameter A, KA-P curve length S p i r a l / C L p e g (length of curve from KA to P point), offset, and P-target D i r e c t . R i g h t curve length (length of curve from P point to target point).
  • Page 131 25. ROUTE SURVEYING 5. Enter the curve direction, parameter A (clothoid parameter), S p i r a l / C L p e g KE-KA curve length (length of curve from KE to KA), KE D i r e c t . R i g h t follow-up distance, and target point follow-up distance.

  • Page 132: Parabola

    25. ROUTE SURVEYING 25.5 Parabola The coordinates of the center peg and width pegs on a parabola can be found from the coordinates of the reference point and curve properties. It is then possible to proceed with the setting-out of the center peg and width pegs •...
  • Page 133 25. ROUTE SURVEYING PROCEDURE Calculation using BTC Point as reference 1. In the second page of the OBS mode screen, press [MENU], then select "Road". 2. Select "Parabola" to enter the Parabola menu then select Road "BTCBCC Calc." O c c . O r i e n . L i n e C i r c .
  • Page 134 25. ROUTE SURVEYING 7. Press {ESC} three times to finish Parabola calculation and return to <Road>. • Press [WIDTH] to move to the width peg setting screen.  "25.2 Straight Line Calculation" • The center peg can be set-out by pressing [CENTER]. ...

  • Page 135: Point Calculation

    25. ROUTE SURVEYING 6. Press [OK] in the screen shown in step 5 to calculate the P a r a b o l a / C L p e g center peg coordinates. The coordinates are then displayed 4 7 5 0 9 0 . 3 1 1 in this screen.
  • Page 136 25. ROUTE SURVEYING 3. Input the coordinates of the BP point (reference point). 3 P T C u r v e / B P Press [OK] to set the input values. 1 0 0 . 0 0 0 N p : E p : 1 0 0 .

  • Page 137: Intersection Angle/Azimuth Angle Calculation

    25. ROUTE SURVEYING 9. In the screens for the KA1 point, KE1 point, KE2 point, and 3 P T C u r v e / C L p e g KA point that have been found, press [CENTER] to move to centerline peg settings.
  • Page 138 25. ROUTE SURVEYING 2. Select "IP&Tan" to enter the intersection angle/azimuth 3 P T C u r v e angle calculation menu. I P & Ta n A l i g n m e n t E D M 3. Input the coordinates of the BP point (reference point). I A &...

  • Page 139: Route Calculation

    25. ROUTE SURVEYING 7. In the screens for the KA1 point, KE1 point, KE2 point, and I A & Ta n g e n t / C L p e g KE2 point that have been found, press [CENTER] to move to centerline peg settings.
  • Page 140 25. ROUTE SURVEYING Deleting a JOB: "29.2 Deleting a JOB" Memory initialization: ""33.12 Restoring Default Settings" PROCEDURE Restoring set items to initial settings and turning power on"  • Curve data is not set when curve properties (parameter A1, parameter A2, radius R) are all set to "Null". •...
  • Page 141 25. ROUTE SURVEYING 8. Check the EP. Check the coordinate for the EP, and press [OK]. 2 0 0 . 0 0 0 N p : E p : 4 0 0 . 0 0 0 9. Quit inputting the IPs. <C urv e number:2>...
  • Page 142 25. ROUTE SURVEYING 3. Input the elements for the curve 1. E l e m e n t 1 Input the parameter A1, parameter A2, radius R, and offset P a r a A 1 5 0 . 0 0 0 (additional distance for the BP: if the BP is located before the P a r a A 2 5 0 .
  • Page 143 25. ROUTE SURVEYING 3. Align the cursor with "Review elements" and press {ENT}. Define elements Use {}/{} to move through property screens in the I n p u t I P following order: BP Point -> IP Point -> EP Point -> curve I n p u t e l e m e n t properties ->...
  • Page 144 25. ROUTE SURVEYING 25.8.5 Automatic calculation of cardinal points Perform automatic calculation of cardinal points based on the curve properties set in “25.8.2 Inputting Curve Elements”. Center pegs (peg No.) and width pegs set up at intervals can be calculated at once. •...
  • Page 145 25. ROUTE SURVEYING 5. Press [OK] in the screen shown in step 4 to calculate the Results coordinates of the cardinal point, width pegs and peg No. 1 0 0 . 0 0 0 The coordinates are then displayed on the screens shown 1 0 0 .
  • Page 146 25. ROUTE SURVEYING route widths (route width from the center peg to the LEFT width peg). When both route widths are input as positive (+) "R" and "R2" are used. When both route widths are input as negative (-) "L" and "L2" are used.
  • Page 147 25. ROUTE SURVEYING 25.8.7 Inverse width peg The route widths and coordinates for center pegs on every calculated curve can be found by using inverse width peg calculation. • There are two methods for specifying arbitrary width peg coordinates: key entry and observation. PROCEDURE Using key entry to specify arbitrary width pegs 1.
  • Page 148 25. ROUTE SURVEYING 2. Sight the width peg and press [MEAS] to start A l i g n m e n t / R o a d t o p o measurement. The coordinates and measurement distance 0 . 0 0 0 N p : of the width peg, vertical angle and horizontal angle are ...
  • Page 149 25. ROUTE SURVEYING 3. Select "Setting" to enter the Setting Parameters menu. A l i g n m e n t D e f i n e e l e m e n t s A u t o c a l c . C a l c c o o r d R o a d t o p o S e t t i n g...

  • Page 150: Cross Section Survey

    26.CROSS SECTION SURVEY The purpose of this function is to measure and set out points along a cross-section of a road or linear feature already surveyed using the route surveying function. Cross-sections can be surveyed in a variety of directions depending on your requirements.
  • Page 151 26. CROSS SECTION SURVEY 4. Input road name for cross section survey, station pitch, X s e c t i o n S u r v e y station increment, stationing chainage and select direction. R o a d n a m e : Then press [OK].
  • Page 152 26. CROSS SECTION SURVEY Enter center point name. Then press [OK]. 3 + 3 . 2 0 0 C e n t e r : N o . 3 + 3 . 2 0 0 F i n i s h e d s e c t i o n : LOAD •...
  • Page 153 26. CROSS SECTION SURVEY Direction of route Pattern 1 Pattern 2 Pattern 3 Right side observed Left side observed with a second prism with one prism When "Right" or "Left -> Right" selected Pattern 1: From right-most point to left-most point. Pattern 2: Center point observed first.

  • Page 154: Point To Line Measurement

    27.POINT TO LINE MEASUREMENT Point to line allows an operator to define the coordinates of the target point when a line connecting the base point A (0, 0, 0) and the point B is set as the X axis. The instrument's station coordinates and angle for an unknown point C is set by observing the point A and the point B.
  • Page 155 27. Point to Line MEASUREMENT 5. Measure the second target point in the same manner as the Measure 2nd PT first one. HA-R 1 7 8 2.000m 1004 MEAS Confirm the measured result and press [OK]. 5.123m HA-R 1 7 8 2.000m 1004 MEAS...
  • Page 156 27. Point to Line MEASUREMENT • Pressing [REC] records the coordinates of the target point 20.000 as measured data in the current JOB. 30.000 40.000 2.500m • Pressing [S.CO] displays the coordinates of the instrument 1001 station. S.CO MEAS 4. Collimate the next target point and press [MEAS] to begin measurement.

  • Page 157: Recording Data - Topo Menu

    28.RECORDING DATA - TOPO MENU - In Record menu, you can store the measurement data (distance, angle, coordinates), station point data, backsight station data, and note in the current JOB. "29. SELECTING/DELETING A JOB" • A total of 50,000 data can be stored inside the instrument. Recording instrument station data and backsight station data is an exception.
  • Page 158 28. RECORDING DATA - TOPO MENU - 3. Set the following data items. (1) Instrument station coordinates (2) Point name  (3) Instrument height (4) Code LOAD (5) Operator (6) Date (Display only) (7) Time (Display only) (8) Weather (9) Wind (10) Temperature LIST SRCH...

  • Page 159: Recording Backsight Point

    28. RECORDING DATA - TOPO MENU - 28.2 Recording Backsight Point Backsight station data can be stored in the current JOB. Azimuth angle setting method can be selected from “inputting azimuth angle” or “calculating coordinates”. PROCEDURE Inputting azimuth angle 1. Press [TOPO] in the third page of OBS mode to display <TOPO>.

  • Page 160: Recording Angle Measurement Data

    28. RECORDING DATA - TOPO MENU - 4. Input the backsight station coordinates. TOPO / Backsight NBS : 1.000 • When you wish to read in and set coordinate data from EBS : 1.000 memory, press [LOAD]. ZBS : <Null> ...

  • Page 161: Recording Distance Measurement Data

    28. RECORDING DATA - TOPO MENU - 3. Set the following items. (1) Target height (2) Point name HA-R (3) Code 1 0 1 0 R E C TILT H-SET 0SET A D D L I S T S R C H 4.

  • Page 162: Recording Coordinate Data

    28. RECORDING DATA - TOPO MENU - 5. To continue measurement, sight the next point, press [MEAS], then perform steps 3 and 4 above. HA-R MEAS OFFSET AUTO • Press [AUTO] to perform distance measurement and automatically record the results. [AUTO] is convenient for recording measurement data when target height, code and point name are not set.

  • Page 163: Recording Distance And Coordinate Data

    28. RECORDING DATA - TOPO MENU - 6. Press {ESC} to quit measurement and restore <TOPO>. 28.6 Recording Distance and Coordinate Data Distance measurement data and coordinate data can be stored in the current JOB at the same time. • Both distance measurement data and coordinate data are recorded as the same point name. •...

  • Page 164: Reviewing Job Data

    28. RECORDING DATA - TOPO MENU - 28.7 Recording Notes This procedure prepares notes data and records it in the current JOB. PROCEDURE 1. Press [TOPO] in the third page of OBS mode to display Dist + Coord <TOPO>. Note Select “Note”.
  • Page 165 28. RECORDING DATA - TOPO MENU - 2. Select the point name to be displayed in detail and press 1 2 3 . 4 5 6 m [ENT]. 2 0 3 1 2 1 Details of the data are displayed. This screen contains HA-R 11 7 3 2 2 1...

  • Page 166: Deleting Recorded Job Data

    28. RECORDING DATA - TOPO MENU - 28.9 Deleting Recorded JOB Data It is possible to delete data from the currently selected JOB.  • Deleting each data does not free the memory. When a JOB is deleted, the occupied memory is freed. "29.2 Deleting a JOB"...

  • Page 167: Selecting/Deleting A Job

    29.SELECTING/DELETING A JOB 29.1 Selecting a JOB Select the current JOB and Coordinate Search JOB. • A total of 99 JOBs have been prepared, and JOB1 was selected when your iM was shipped from the factory. • The names of the JOBs have been preset as JOB1 to JOB99; you can change them to any names you wish. •...

  • Page 168: Deleting A Job

    29. SELECTING/DELETING A JOB 4. Align the cursor with the desired JOB as the current JOB and press {ENT}. The JOB is determined. 5. Press {ENT}. <JOB selection> is restored. 6. Align the cursor with “Coord search JOB” and press [LIST]. <Coord search JOB>...
  • Page 169 29. SELECTING/DELETING A JOB 2. Select “JOB deletion”. <JOB deletion> is displayed. JOB selection JOB details JOB deletion • The numbers to the right represent the number of data Comms output items in each JOB. Comms setup 3. Align the cursor with the desired JOB and press {ENT}. 4.

  • Page 170: Registering/Deleting Data

    30.REGISTERING/DELETING DATA 30.1 Registering/Deleting Known Point Data It is possible to register or delete coordinate data of the known points in the current JOB. The coordinate data that has been registered can be output during setting for use as instrument station, backsight station, known point, and setting-out point coordinate data.
  • Page 171 30. REGISTERING/DELETING DATA PROCEDURE Entering known point coordinate data from an external instrument 1. Connect iM and host computer. 2. Select “Known data” in Data Mode. 3. Select “Comms input” to display <Comms input>. Known data Job.JOB1 Key in coord Comms input Deletion View...
  • Page 172 30. REGISTERING/DELETING DATA 2. Select “Deletion” to display the list of known point data. Known data Job.JOB1 Key in coord Comms input Deletion View POINT01 ABCDEF 123456789 FIRST LAST SRCH 3. Select the point name to be deleted and press {ENT}. •...

  • Page 173: Registering/Deleting Codes

    30. REGISTERING/DELETING DATA 30.2 Reviewing Known Point Data It is possible to display all the coordinate data within the current JOB. PROCEDURE 1. Select “Known data” in Data Mode. • Current JOB name is displayed. 2. Select “View”. Known data The point name list is displayed.
  • Page 174 30. REGISTERING/DELETING DATA 2. Select “Key in code”. Code Enter the code and press {ENT}. The code is registered and Key in code <Code> is restored. Comms input Comms output Deletion Code view  • Maximum code size: 16 (alphanumeric) •...

  • Page 175: Reviewing Codes

    30. REGISTERING/DELETING DATA 3. Align the cursor with the code to be deleted and press [DEL]. The designated code is deleted. FIRST 4. Press {ESC} to restore <Code>.  • If you select “Clear list” in step 2 and then press [YES], all registered codes are deleted. 30.4 Reviewing Codes PROCEDURE 1.

  • Page 176: Outputting Job Data

    31.OUTPUTTING JOB DATA It is possible to output JOB data to a host computer.  Communication cables: "38. ACCESSORIES" Output format and command operations: "Communication manual" • Measurement results, instrument station data, known point data, notes, and coordinate data in the JOB is output.
  • Page 177 31. OUTPUTTING JOB DATA 7. Select the output format and press {ENT}. When T type is selected GTS(Obs) GTS(Coord) SSS(Obs) SSS(Coord) When S type is selected SDR2X When "GTS (Obs)" or "SSS (Obs)" is selected, select the output format of distance data. Obs data •...

  • Page 178: Using Usb Flash Drive

    32.USING USB FLASH DRIVE It is possible to read in/output data from/to a USB flash drive. • When using a USB flash drive, data is stored in the root folder. You cannot read/write data from/to subfolders. • When using the iM, an MS-DOS-compatible text file can be input/output. ...

  • Page 179: Selecting T Type/S Type

    32. USING USB FLASH DRIVE  • When using a USB memory with 4 metal terminals on the surface, insert it with the terminal facing backwards to avoid damaging the USB port. PROCEDURE Removing USB Flash Drive 1. Remove the USB flash drive from the USB port. 2.

  • Page 180: Storing Job Data To Usb Flash Drive

    32. USING USB FLASH DRIVE 32.3 Storing JOB Data to USB flash drive The measurement data (distance, angle, coordinate), known point data input on the iM, station point data and note stored in a JOB of the iM can be saved to the USB flash drive. Also, if multiple JOBs are selected, they can be saved to one file.
  • Page 181 32. USING USB FLASH DRIVE 6. Select output format. JOB01. SDR (When S type is selected) : Jan/01/2017 Date Align the cursor with "Format" to select the output format. : 08:00 Time Format:SDR33 123.4MB / 3.8GB • Selecting "Yes" for "Send RED data" on the second page outputs the horizontal distance data converted from the slope distance.

  • Page 182: Loading Data In Usb Flash Drive To The Im

    32. USING USB FLASH DRIVE 32.4 Loading Data in USB flash drive to the iM The known point data or code previously saved in a USB flash drive can be loaded to the current JOB. • Only coordinate records having a file format compatible with the iM can be loaded to the iM. Output format and command operations: "Communication manual"...

  • Page 183: Displaying And Editing Files

    32. USING USB FLASH DRIVE 2. Select a file having code data you wish to load and press C O D E 0 0 1 T X T {ENT}. C OD E 002 TX T 12345 X Y Z ABCDEFG C OD E 003 TX T C OD E 004 TX T 3.

  • Page 184: Formatting The Selected External Memory Media

    32. USING USB FLASH DRIVE PROCEDURE Deleting a File 1. Follow steps 1 to 2 in “PROCEDURE Displaying File ABCDE Information” until the screen shown at right is displayed. 5354byte Jan/01/2017 17:02 Format :SDR33 3.4GB / 3.8GB 2. Press [DEL]. Press [YES]. The file is deleted and the screen returns to the file list.

  • Page 185: Changing The Settings

    33.CHANGING THE SETTINGS This section explains the contents of parameter settings, how to change settings and how to perform initialization. Each item can be changed to meet your measurement requirements. Config Obs.condition Instr.config Key function Comms setup Instr.const The following items in Configuration mode are explained in other chapters. ...

  • Page 186: Observation Conditions - Dist

    33. CHANGING THE SETTINGS  V obs. (vertical angle display method) Zenith Horiz Horiz 90°  Ofs V ang Select whether the vertical angle is fixed in the angle offset measurement. 33.2 Observation Conditions - Dist Select "Obs.condition" in Config mode and select "Dist". M o d e F i n e ”...
  • Page 187 33. CHANGING THE SETTINGS • "Road" in "Mode (Distance measurement Mode)" is displayed only when "N-Prism" is selected in <Reflector>.  "33.3 Observation Conditions - Reflector (Target)"  Road "Road" is the specialized distance mode to measure road surface etc. by sighting obliquely and to obtain rough measurement values.

  • Page 188: Observation Conditions - Reflector (Target)

    33. CHANGING THE SETTINGS  Dist.reso. (Distance resolution) Select distance resolution of fine measurement. Distance resolution of rapid and tracking measurement will shift with this setting.  Tracking reso. (Tracking resolution) Select distance resolution of tracking measurement and road measurement (N-prism only). Set this setting depending on the measurement purpose like measuring a moving target.

  • Page 189: Observation Conditions - Atmosphere

    33. CHANGING THE SETTINGS  • Press [EDM] in Observation mode to display <EDM> and to perform target and atmospheric condition settings. 33.4 Observation Conditions - Atmosphere Select "Obs.condition" in Config mode and select "Atmos". Obs.condition Te m p . An g le/Tilt P r e s .

  • Page 190: Observation Conditions - Other

    33. CHANGING THE SETTINGS t: Air temperature (°C) p: Pressure (hPa) e: Water vapor pressure (hPa) h: Relative humidity (%) E : Saturated water vapor pressure • e (water vapor pressure) can be calculated using the following formula × --------- - ×...

  • Page 191: Instrument Conditions - Power

    33. CHANGING THE SETTINGS Items set and options (*: Factory setting) Input order : PT  CODE*/CODE  PT Stn.ID Incr. (station ID increment) : 0 to 99999 (100*) Intersection : Type A/Type B*  Input order The input order of point name and code in recording screens can be selected. ...

  • Page 192: Instrument Conditions - Unit

    33. CHANGING THE SETTINGS 33.7 Instrument Conditions - Instrument Select "Inst. Config" in Config mode and select "Instrument". Instr.config Contrast Power supply V manual : No Instrument Reticle lev Unit Volume Password Date and time Items set and options (*: Factory setting) Contrast : 0 to 15 level (10*) V manual...

  • Page 193: Instrument Conditions - Password

    33. CHANGING THE SETTINGS  • Even if “inch” is selected in this setting, all the data including the result of area calculation are output in “feet” and all the distance values must be input in “feet”. In addition, when the “inch” display exceeds the range, it is displayed in “feet”.

  • Page 194: Instrument Conditions - Date And Time

    33. CHANGING THE SETTINGS 3. Input new password twice and press {ENT}. The password C h a n g e p a s s w o r d is changed and <Config> is restored. N e w p a s s w o r d •...

  • Page 195: Allocating Key Functions

    33. CHANGING THE SETTINGS 33.11 Allocating Key Functions It is possible to allocate the softkeys in OBS mode to suit the measurement conditions. It is possible to operate the iM efficiently because unique softkey allocations can be preset to suit various applications and the ways that different operators handle the instrument.
  • Page 196 33. CHANGING THE SETTINGS [TRAV] : Traverse adjustment [ROAD] : Route surveying [X SECT] : Cross section survey [TOPOII] : Topography observation [L-PLUM] : Brightness configuration for laser plummet [HVDOUT-T] / [HVDOUT-S] : Output distance/angle measurement results to an external instrument [HVOUT-T] / [HVOUT-S] : Output angle measurement results to an external instrument [NEZOUT-T] / [NEZOUT-S]...
  • Page 197 33. CHANGING THE SETTINGS 3. Change the softkey function using {   K e y f u n c t i o n Set the softkey function and its location by pressing {}/{}. DIST COORD The set softkey stops flashing and the cursor flashes on the MENU TILT H-SET...

  • Page 198: Restoring Default Settings

    33. CHANGING THE SETTINGS 33.12 Restoring Default Settings The following explains the two methods of restoring default settings: Restoring set items to initial settings and turning power on. Initializing the data and turning power on. • Restore the following items to the initial settings when the iM was shipped. EDM setting, Config mode settings (including softkey arrays) About initial settings when the iM was shipped: "33.1 Observation Conditions - Angle/Tilt", "33.11 Allocating Key Functions"...

  • Page 199: Warning And Error Messages

    34.WARNING AND ERROR MESSAGES The following is a list of the error messages displayed by the instrument and the meaning of each message. If the same error message is repeated or if any message not shown below appears, the instrument has malfunctioned.
  • Page 200 34. WARNING AND ERROR MESSAGES Need 1st obs During missing line measurement, the observation of the starting position was not completed normally. Sight the starting position accurately and press [OBS] to perform the measurement again. Need 2nd obs During missing line measurement, the observation of the target was not completed normally. Sight the target accurately and press [MLM] to perform the measurement again.
  • Page 201 34. WARNING AND ERROR MESSAGES During setting-out line measurement, scale factor has been less than 0.100000 or exceeded 9.999999. During area calculation, results exceeded the display range. Pt already on route Traverse tried to close on a traverse point other than the Start pt. during automatic route search. Press any key to return to the last point found in automatic route search.
  • Page 202 34. WARNING AND ERROR MESSAGES USB error An error has occurred in loading or saving data to USB flash drive. USB full ! There is no more room to enter data on USB flash drive. USB not found USB flash drive was removed during USB mode operation. ******** The calculated result is too large to be displayed on the screen in its totality.

  • Page 203: Checks And Adjustments

    35.CHECKS AND ADJUSTMENTS A iM is a precision instrument that requires fine adjustments. It must be inspected and adjusted before use so that it always performs accurate measurements. • Always perform checking and adjustment in the proper sequence beginning from "35.1 Circular Level" to "35.7 Laser Plummet *1".
  • Page 204 35. CHECKS AND ADJUSTMENTS 2. Set the horizontal angle to 0°. Press [0SET] twice in the first page of the OBS mode screen to set the horizontal angle to 0°. 3. Select “Instr. const” in the Config. mode screen to display Config the current correction constant in the X (sighting) direction Obs.condition...
  • Page 205 35. CHECKS AND ADJUSTMENTS 9. Rotate the top of the instrument through 180° until the displayed horizontal angle is 180° ±1’ and [OK] is displayed. 10.Wait a few seconds for the display to stabilize, then store the automatically compensated angles X1 and Y1. Press [YES] to store tilt angles X1 and Y1.

  • Page 206: Reticle

    35. CHECKS AND ADJUSTMENTS 35.3 Collimation With this option you can measure collimation error in your instrument so that the instrument can correct subsequent single face observations. To measure the error, make angular observations using both faces.  • Perform adjustment in weak sunlight and no scintillation. PROCEDURE Adjusting 1.

  • Page 207: Optical Plummet

    35. CHECKS AND ADJUSTMENTS PROCEDURE Check 2: Vertical and horizontal reticle line positions  • Perform check in weak sunlight and no scintillation. • "Tilt crn" should be se to "Yes (H,V)" and "coll.crn" to "Yes" in <Obs. condition> while performing checks. 1.
  • Page 208 35. CHECKS AND ADJUSTMENTS 2. Turn the upper part through 180° and check the position of the survey point in the reticle. If the surveying point is still centered, no adjustment is necessary. If the survey point is no longer centered in the optical plummet, perform the following adjustment.

  • Page 209: Additive Distance Constant

    35. CHECKS AND ADJUSTMENTS 7. Replace the optical plummet reticle cover by matching the grooves on the cover with the grooves on the optical plummet. Groove 35.6 Additive Distance Constant The additive distance constant K of the iM is adjusted to 0 before delivery. Although it almost never deviates, use a baseline with a known distance precision to check that the additive distance constant K is close to 0 several times a year and whenever the values measured by the instrument begin to deviate by a consistent amount.

  • Page 210: Laser Plummet

    35. CHECKS AND ADJUSTMENTS 35.7 Laser Plummet Checks and adjustments are performed using an adjustment target. Make an enlarged or reduced copy of the figure below. Laser plummet is available as a factory option depending on the country or the area where the instrument is purchased.
  • Page 211 35. CHECKS AND ADJUSTMENTS 6. When the laser beam is on the upper (lower) part of Fig. A the up/down adjustment is made as follows: (1) Insert the provided hexagon key wrench into both the upper and lower screws. Desired final position Fig.

  • Page 212: Power Supply System

    36.POWER SUPPLY SYSTEM Operate your instrument with the following combinations of power equipment.  • For details about batteries and chargers, refer to each dedicated manual. • Never use any combination other than those indicated below. If you do, the instrument could be damaged. Those indicated by * are standard accessories.

  • Page 213: Target System

    37.TARGET SYSTEM Select a prism or a target depending on your purpose. The following are all special accessories (sold separately).  • When using a reflecting prism equipped with a target for distance and angle measurements, be sure to direct the reflective prism correctly and sight the center of the prism target accurately.
  • Page 214 37. TARGET SYSTEM 3. Turn the upper part through 180° and check the bubble position. If the bubble is still centered, no adjustment is necessary. If the bubble is off-center, adjust as follows. 4. Correct half of the bubble displacement using levelling foot screw C. 5.

  • Page 215: Accessories

    38.ACCESSORIES The following are outlines and how to use standard accessories (not all) and optional accessories. The following items are explained in other chapters.  Power supply and target optional accessories: "36. POWER SUPPLY SYSTEM", "37. TARGET SYSTEM". Plumb bob (optional accessory) ...
  • Page 216 38. ACCESSORIES Solar filter (OF3A) (optional accessory)  During solar observation, attach it to the objective lens of the instrument to protect its interior and the eyes of its operator. The filter part can be flipped up without being removed. Power cable/Interface cable (optional accessory) ...

  • Page 217: Specifications

    39.SPECIFICATIONS Except where stated, the following specifications apply to all models of iM Series. Telescope Length 171 mm Aperture 45 mm (EDM:48 mm) Magnification Image Erect Resolving power 2.5" Field of view 1°30' Minimum focus 1.3 m Reticle illumination 5 brightness levels Angle measurement Horizontal and Vertical circles type Rotary absolute encoder...
  • Page 218 39. SPECIFICATIONS Standard prism AP01AR X 1 1.3 to 4,000 m (13,120 ft) (1.3 to 4,000 m (13,120 ft)) Reflective sheet RS90N-K 1.3 to 500 m (1,640 ft) 1.3 to 300 m (980 ft) Reflective sheet RS50N-K 1.3 to 300 m (980 ft) 1.3 to 180 m (590 ft) Reflective sheet RS10N-K 1.3 to 100 m (320 ft)
  • Page 219 39. SPECIFICATIONS Atmospheric correction: Temperature input range: -35.0 to 60.0°C (in 0.1°C step)/ -31.0 to 140.0°F (in 0.1°F step) Pressure input range: 500.0 to 1,400.0hPa (in 0.1hPa step) 375.0 to 1,050.0mmHg (in 0.1mmHg step) 14.80 to 41.30inchHg (in 0.01inchHg step) Humidity input range: 0.0 to 100.0% (in 0.1% step) ppm input range:...
  • Page 220 39. SPECIFICATIONS *14: No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain. *15: Usage range could be shorter depending on specifications of Bluetooth device to communicate. Power Supply Power source Rechargeable Li-ion battery BDC46C Working duration at 20 °C Distance and angle measurement (Fine single measurement = every 30 sec.): BDC46C:...
  • Page 221 39. SPECIFICATIONS Laser-pointer function Provided On/Off (selectable) Operating temperature (no condensation) -20 to 60 °C (-4 to 140 °F) Storage temperature range (no condensation) -30 to 70 °C (-22 to 158 °F) Dust and water resistance: IP66 (IEC 60529: 2001) Instrument height 192.5 mm from tribrach mounting surface 236 mm +5/-3 mm from tribrach bottom...

  • Page 222: Explanations

    40.EXPLANATIONS 40.1 Manually Indexing the Vertical Circle by Face 1/2 Measurement The 0 index of the vertical circle of your instrument is almost 100% accurate, but when it is necessary to perform particularly high precision vertical angle measurements, you can eliminate any inaccuracy of the 0 index as follows.

  • Page 223: Correction For Refraction And Earth Curvature

    40. EXPLANATIONS 40.2 Correction for Refraction and Earth Curvature The instrument measures distance, taking into account correction for refraction and earth curvature. Distance Calculation Formula Distance Calculation Formula; with correction for refraction and earth curvature taken into account. Follow the Formula below for converting horizontal and vertical distances.

  • Page 224: Regulations

    41.REGULATIONS Region/ Directives/ Description Country Regulations U.S.A. FCC-Class B FCC Compliance WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 225 41. REGULATIONS Region/ Directives/ Description Country Regulations California Recycling and NY, Batteries U.S.A. Canada ICES-Class B This class B digital apparatus meets all requirements of Canadian interference-Causing Equipment Regulations. Cet appareil numérique de la class B respecte toutes les exigences du Réglement sur le matérique brouilleur du Canada.
  • Page 226 41. REGULATIONS Region/ Directives/ Description Country Regulations EMC-Class B EMC NOTICE In industrial locations or in proximity to industrial power installations, this instrument might be affected by electromagnetic noise. Under such conditions, please test the instrument performance before use. This product complies with the electromagnetic environmental testing of industrial locations.
  • Page 227 41. REGULATIONS Region/ Directives/ Description Country Regulations China Chinese Environment al Directive Taiwan...
  • Page 228 http://www.topcon.co.jp Please see the attached address list or the following website for contact addresses. GLOBAL GATEWAY http://global.topcon.com/ © 2018 TOPCON CORPORATION ALL RIGHTS RESERVED...

This manual is also suitable for:

Im-52Im-55

Table of Contents

Save PDF
