Quick Start Guide

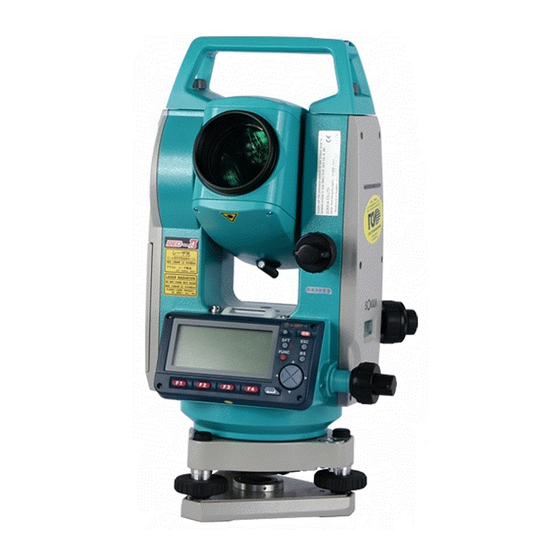

SOKKIA SERIES 30R
SET230R3, SET330R3, SET530R3, SET230R, SET330R, SET530R, SET630R
Procedure
1. Turn on the instrument
2. Level the instrument
3. On your instrument press ESC to exit to the main menu
4. Press F4 (CNFG)
5. Press the down arrow to highlight Comms setup and press Enter.
6. Verify that the communication parameters match the following:
Baud rate:
Data bits:
Parity:
Stop bit:
Check sum:
Xon/Xoff:
7. Press ESC to go back to the Config screen
8. Press ESC to go back to the Main menu
9. Press F1 (MEAS) to go to the Measure screen
10. In FieldGenius start or open an existing project. Press the Main Menu button
Instrument Settings. On the Instrument Settings screen, select Total Station.
11. Match the following on the Model and Communication screen.
12. Specify the EDM settings you want to use on the EDM Settings screen.
May 26, 2005
9600bps
8bit
Not set
1bit
No
No
Settings
Page 1 of 2
