Traces visibility: used to select the traces (signal waveforms) to be displayed in the graph. When
you press this key, it opens a pop-up window as shown in
remove traces to or from the graph.
➔
The traces that can be added to the graph are shown in the box on the left. The traces
currently displayed and which can be removed from the graph are shown in the box on the
right.
114
STAND ALONE PROGRAMMABLE SAFETY CONTROLLER

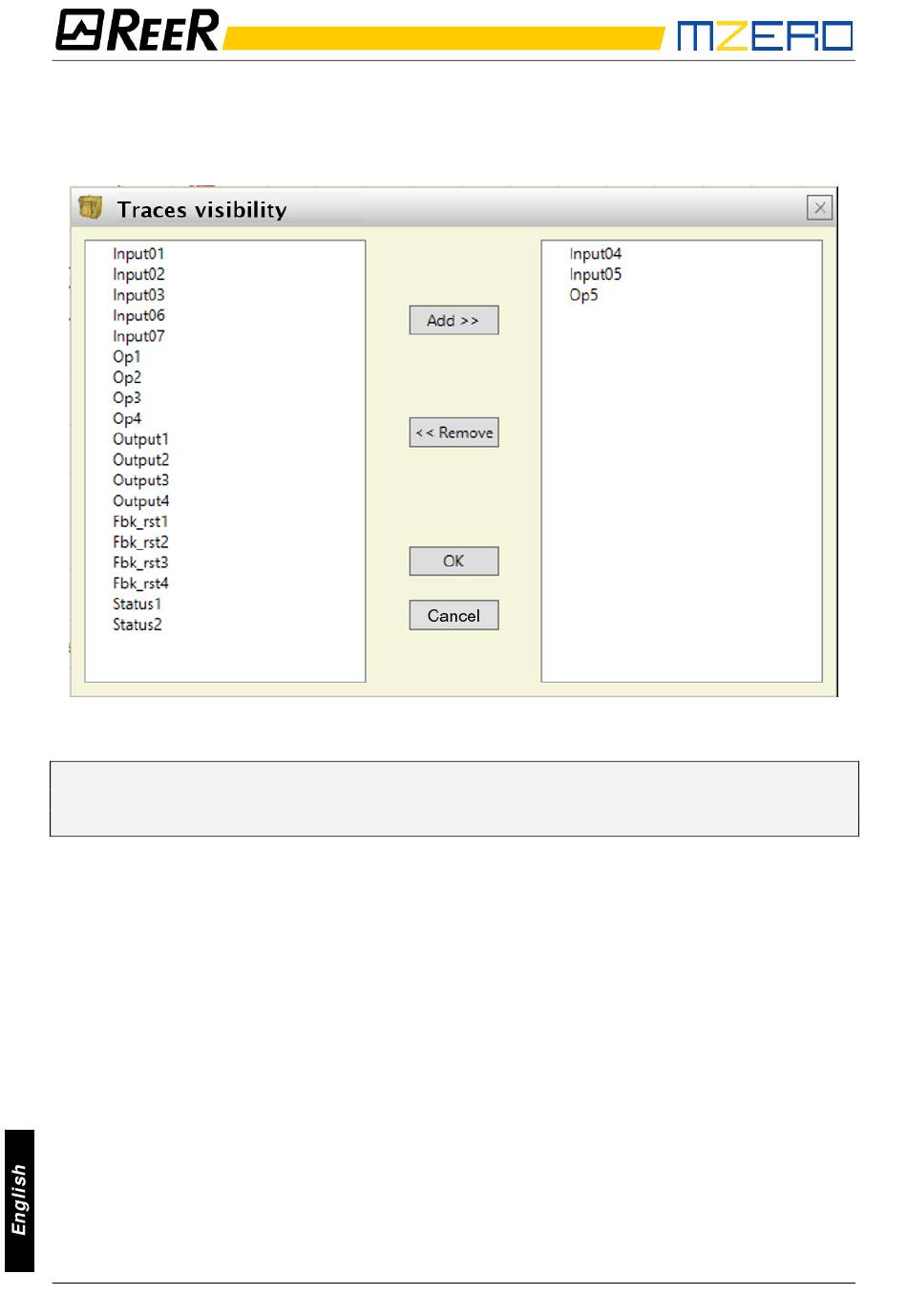

Figure 53 - Traces visibility.
Figure 53
from which you can add or
