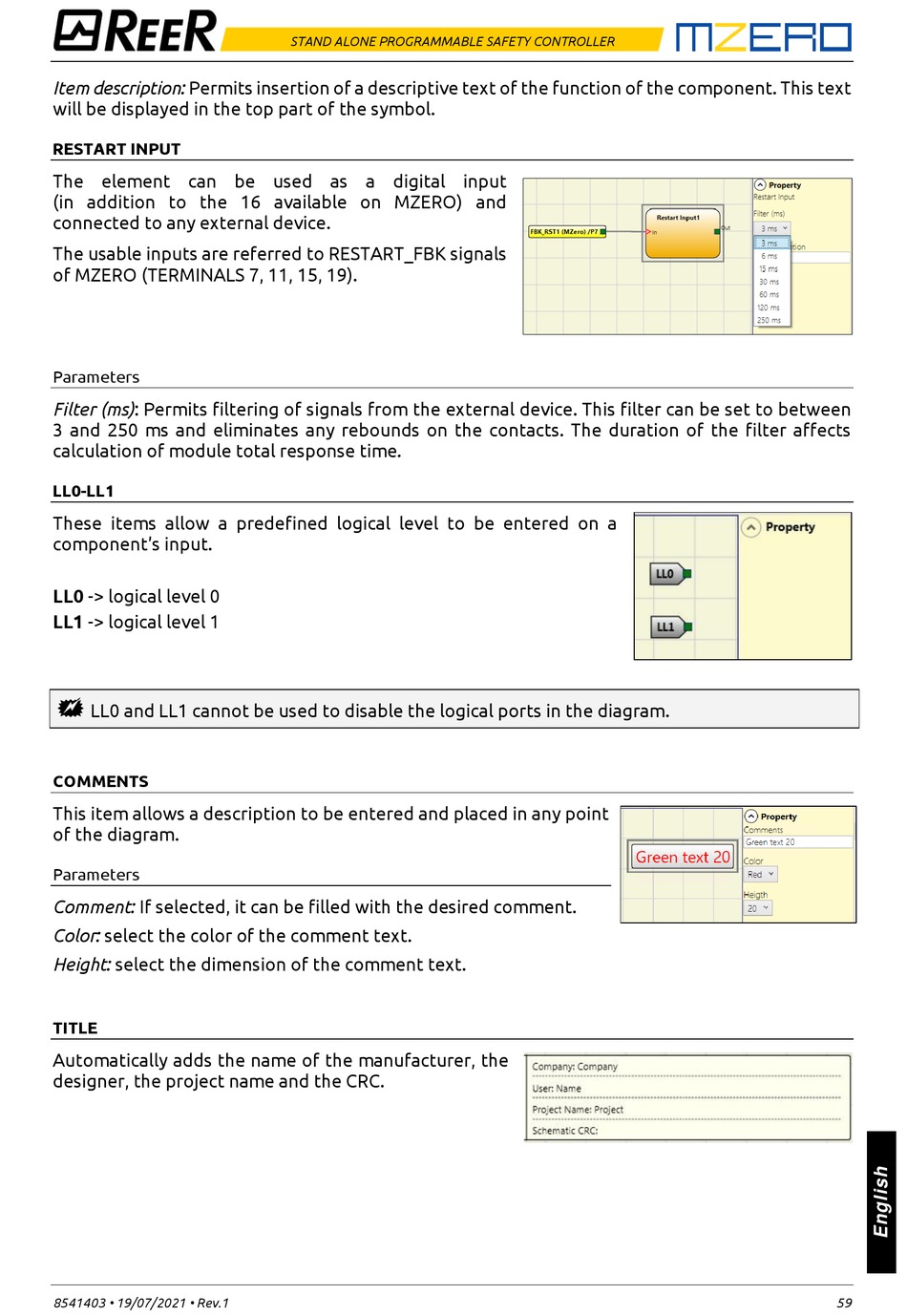

STAND ALONE PROGRAMMABLE SAFETY CONTROLLER
Item description: Permits insertion of a descriptive text of the function of the component. This text
will be displayed in the top part of the symbol.

RESTART INPUT

The element can be used as a digital input
(in addition to the 16 available on MZERO) and
connected to any external device.
The usable inputs are referred to RESTART_FBK signals
of MZERO (TERMINALS 7, 11, 15, 19).
Parameters
Filter (ms): Permits filtering of signals from the external device. This filter can be set to between
3 and 250 ms and eliminates any rebounds on the contacts. The duration of the filter affects
calculation of module total response time.

LL0-LL1

These items allow a predefined logical level to be entered on a
component's input.
LL0 -> logical level 0
LL1 -> logical level 1

LL0 and LL1 cannot be used to disable the logical ports in the diagram.

COMMENTS

This item allows a description to be entered and placed in any point
of the diagram.
Parameters
Comment: If selected, it can be filled with the desired comment.
Color: select the color of the comment text.
Height: select the dimension of the comment text.

TITLE

Automatically adds the name of the manufacturer, the
designer, the project name and the CRC.
