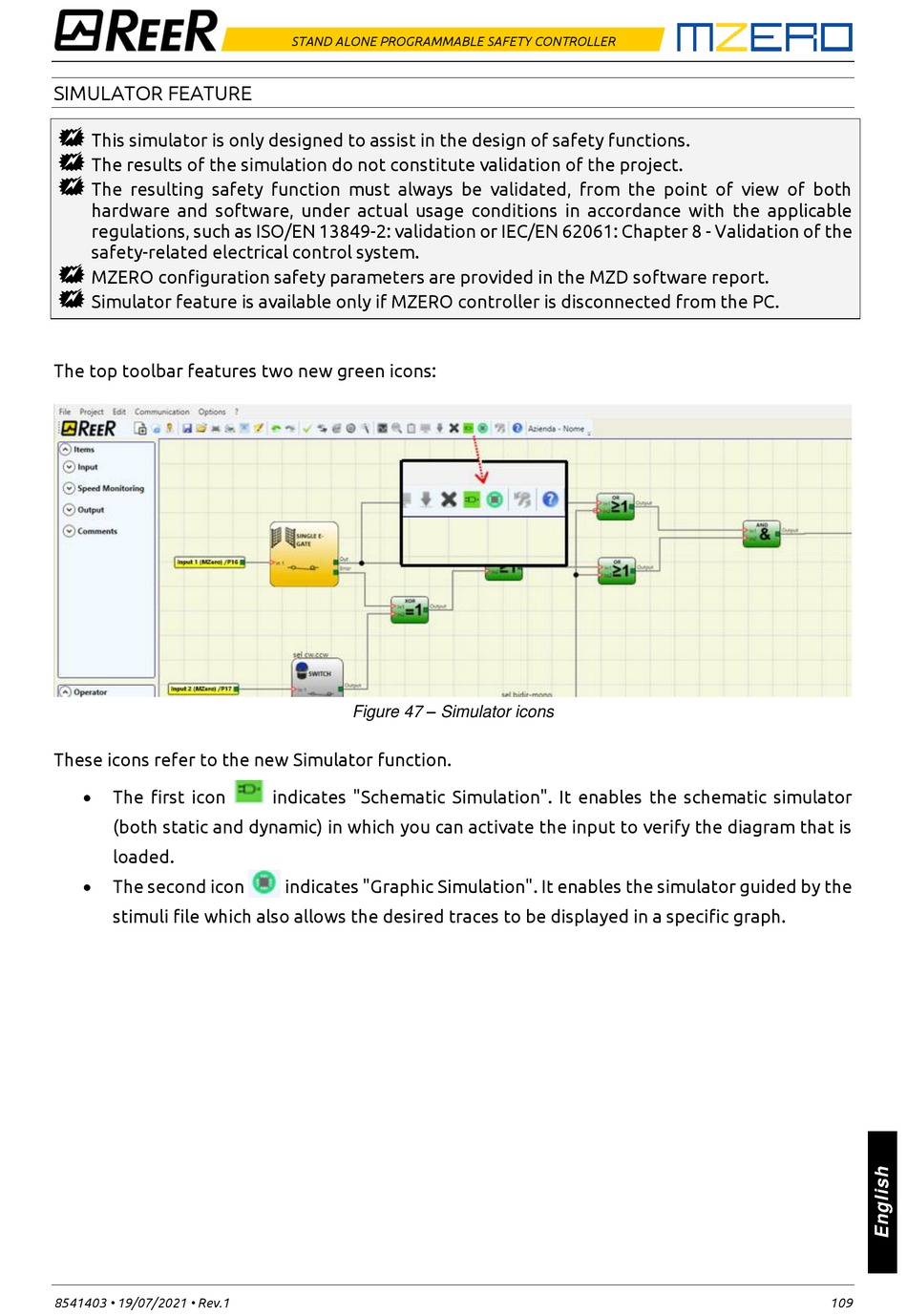

SIMULATOR FEATURE


This simulator is only designed to assist in the design of safety functions.

The results of the simulation do not constitute validation of the project.

The resulting safety function must always be validated, from the point of view of both
hardware and software, under actual usage conditions in accordance with the applicable
regulations, such as ISO/EN 13849-2: validation or IEC/EN 62061: Chapter 8 - Validation of the
safety-related electrical control system.

MZERO configuration safety parameters are provided in the MZD software report.

Simulator feature is available only if MZERO controller is disconnected from the PC.
The top toolbar features two new green icons:
These icons refer to the new Simulator function.
•
The first icon
(both static and dynamic) in which you can activate the input to verify the diagram that is
loaded.
•
The second icon
stimuli file which also allows the desired traces to be displayed in a specific graph.
8541403 • 19/07/2021 • Rev.1
STAND ALONE PROGRAMMABLE SAFETY CONTROLLER
Figure 47 – Simulator icons
indicates "Schematic Simulation". It enables the schematic simulator
indicates "Graphic Simulation". It enables the simulator guided by the
