Parameters
Input Logic: enables the selection of the number of logic inputs (from 1 to 7). Selecting 1 the logic
will not be considered.
Select Logic: enables the selection of one of the following types of operator:
AND, NAND, OR, NOR, XOR, XNOR.
Restart Input Logic: enables the selection of the number of inputs for restart logic (from 1 to 7). If
you select 1 the logic will not be considered.
Restart Select Logic: enables the selection of one of the following types of operator for restart
logic: AND, NAND, OR, NOR, XOR, XNOR.
Enable Clear: If selected, enables an input to reset the memorization.
Enable Out: If selected activates an output with the result of the calculation done by the input
logic.
Restart request: If selected, it enables an output that can be used to signal the possibility of
performing the Restart. The behaviour is represented in the truth table.

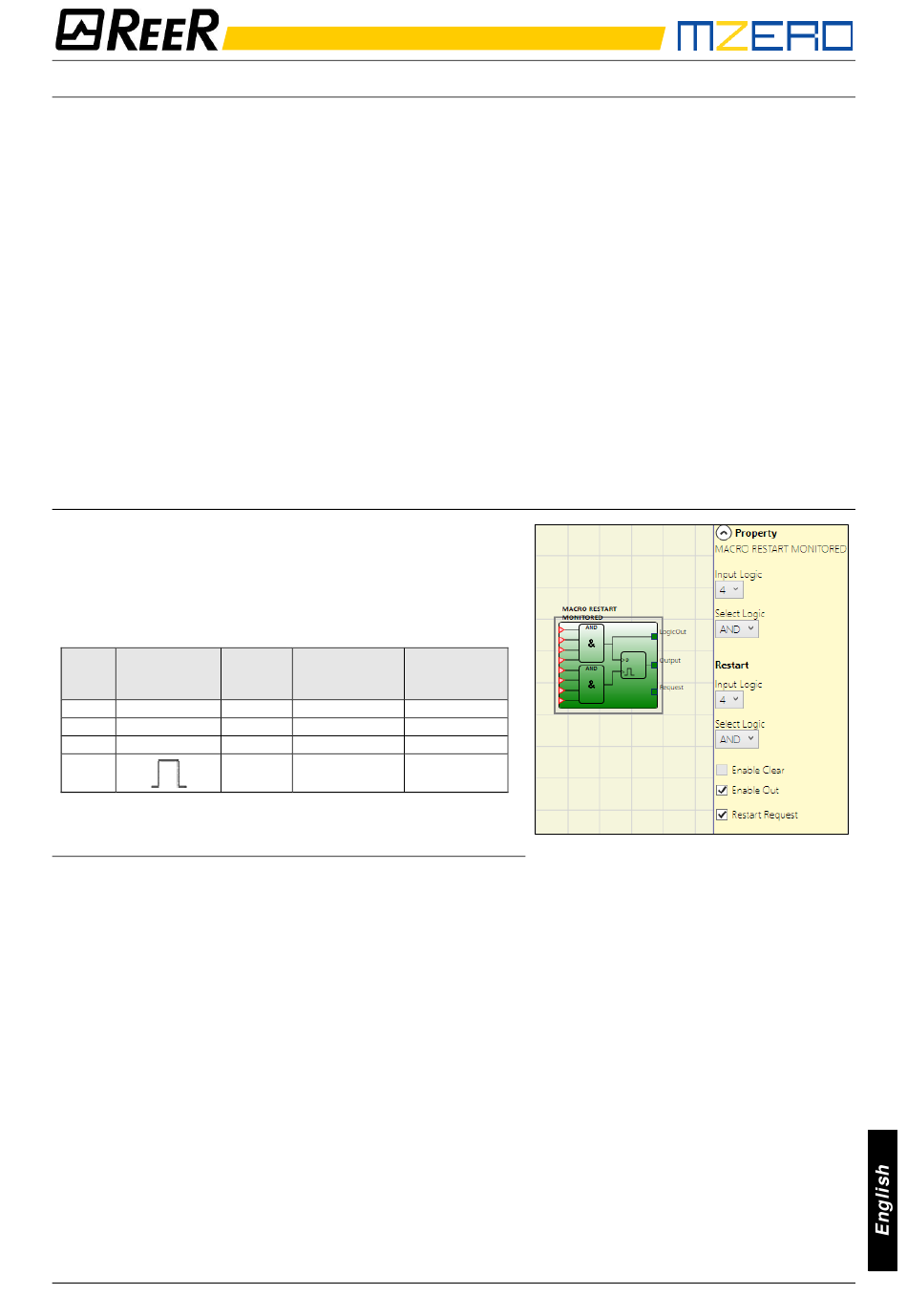

MACRO RESTART MONITORED (max number = 16)

The MACRO RESTART MONITORED operator is used to
combine a logic gate chosen by the user with the Restart
Manual functional block ("USER RESTART MONITORED")
in accordance with the following truth table.
Restart
Clear
Logic Out
1 X
X X
0 0
0
Parameters
Input Logic: enables the selection of the number of logic inputs (from 1 to 7). Selecting 1 the logic
will not be considered.
Select Logic: enables the selection of one of the following types of operator:
AND, NAND, OR, NOR, XOR, XNOR.
Restart Input Logic: enables the selection of the number of inputs for restart logic (from 1 to 7). If
you select 1 the logic will not be considered.
Restart Select Logic: enables the selection of one of the following types of operator for restart
logic: AND, NAND, OR, NOR, XOR, XNOR.
Enable Clear: If selected, enables an input to reset the memorization.
Enable Out: If selected activates an output with the result of the calculation done by the input
logic.
Restart request: If selected, it enables an output that can be used to signal the possibility of
performing the Restart. The behaviour is represented in the truth table.
8541403 • 19/07/2021 • Rev.1
STAND ALONE PROGRAMMABLE SAFETY CONTROLLER
Input
Logic Output
Out
X 0
0 0
1 Keep memory
1 1
Restart
Request
0
0
1
0
