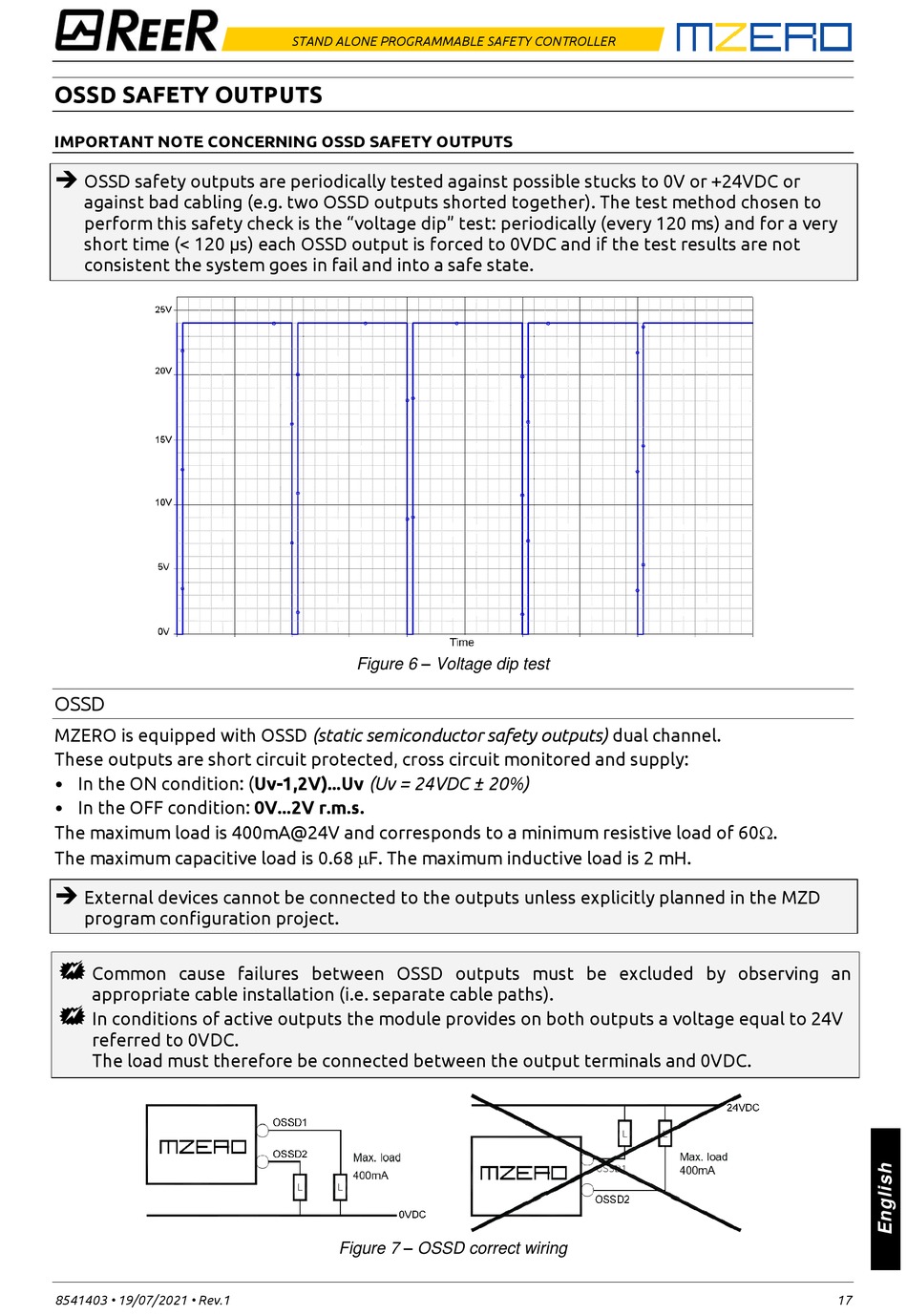

OSSD SAFETY OUTPUTS

IMPORTANT NOTE CONCERNING OSSD SAFETY OUTPUTS

OSSD safety outputs are periodically tested against possible stucks to 0V or +24VDC or
against bad cabling (e.g. two OSSD outputs shorted together). The test method chosen to
perform this safety check is the "voltage dip" test: periodically (every 120 ms) and for a very
short time (< 120 µs) each OSSD output is forced to 0VDC and if the test results are not
consistent the system goes in fail and into a safe state.

OSSD

MZERO is equipped with OSSD (static semiconductor safety outputs) dual channel.
These outputs are short circuit protected, cross circuit monitored and supply:
• In the ON condition: (Uv-1,2V)...Uv (Uv = 24VDC ± 20%)
• In the OFF condition: 0V...2V r.m.s.
The maximum load is 400mA@24V and corresponds to a minimum resistive load of 60.
The maximum capacitive load is 0.68 F. The maximum inductive load is 2 mH.
External devices cannot be connected to the outputs unless explicitly planned in the MZD
program configuration project.
Common cause failures between OSSD outputs must be excluded by observing an
appropriate cable installation (i.e. separate cable paths).
In conditions of active outputs the module provides on both outputs a voltage equal to 24V
referred to 0VDC.
The load must therefore be connected between the output terminals and 0VDC.
8541403 • 19/07/2021 • Rev.1
STAND ALONE PROGRAMMABLE SAFETY CONTROLLER
Figure 6 – Voltage dip test
Figure 7 – OSSD correct wiring
17
