Monitor (I/O Status In Real Time - Textual) - Reer MZERO Installation, Use And Maintenance Manual

STAND ALONE PROGRAMMABLE SAFETY CONTROLLER

MONITOR (I/O status in real time - textual)

To activate the MONITOR function use the icon . (Password Required: level 1).
A pop-up window will appear with (all in real time):
- input's state (when the object has two or more input connections to MZERO, the
MONITOR will show as active only the first), see the example in figure;
- Input's/Out_test Diagnostics;
- OSSD's State;
- OSSD's Diagnostics;
- Signaling OUTPUT's state;

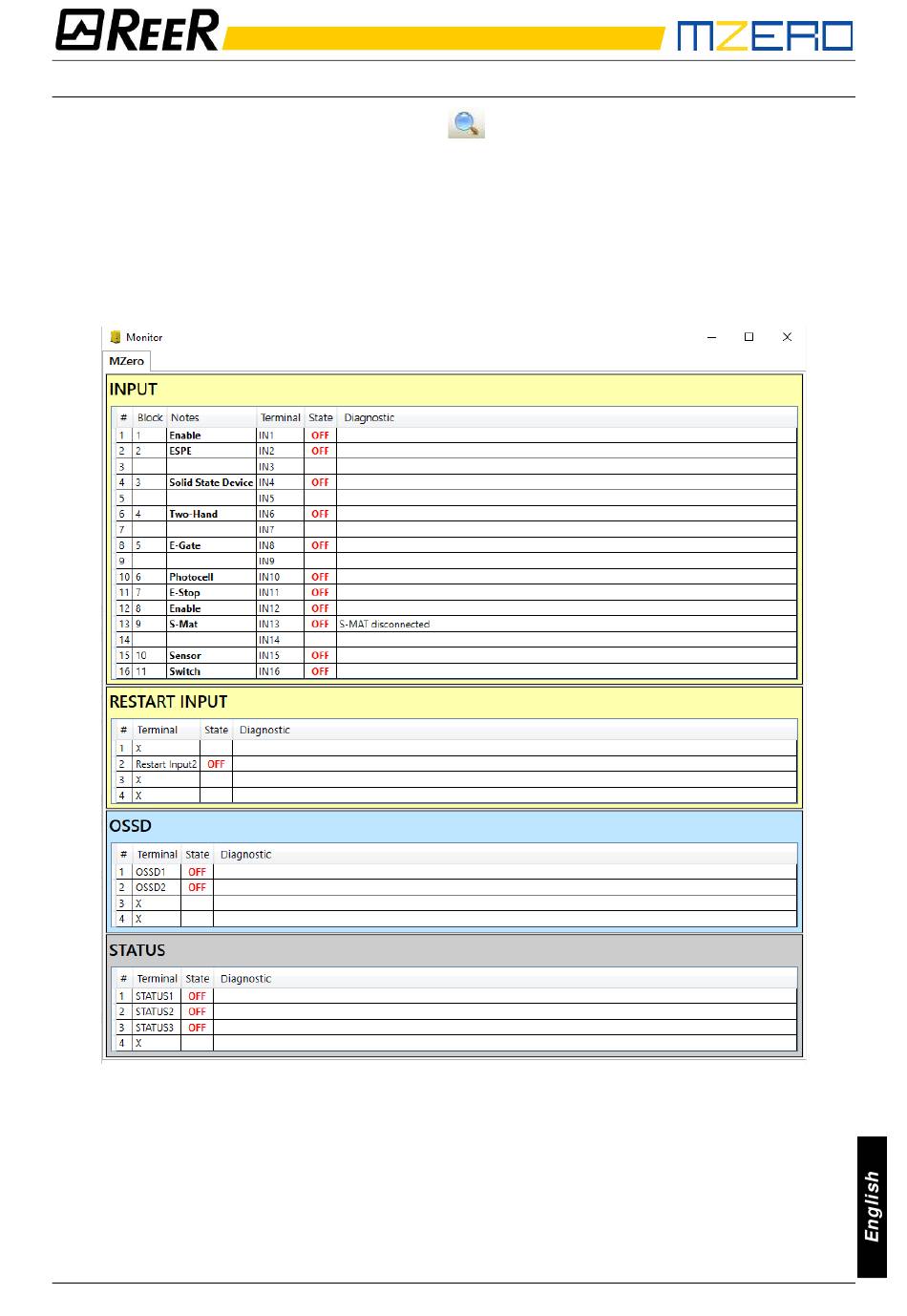

Figure 27 - textual monitor
