MZERO signals with Network operative
LED
STOP
CLEAR
STATUS
RUN
FAIL
(1) Corresponding to the input where is wired Network IN
(2)
Corresponding to the input where is wired Network OUT
(3)
Corresponding to the input where is wired Reset IN

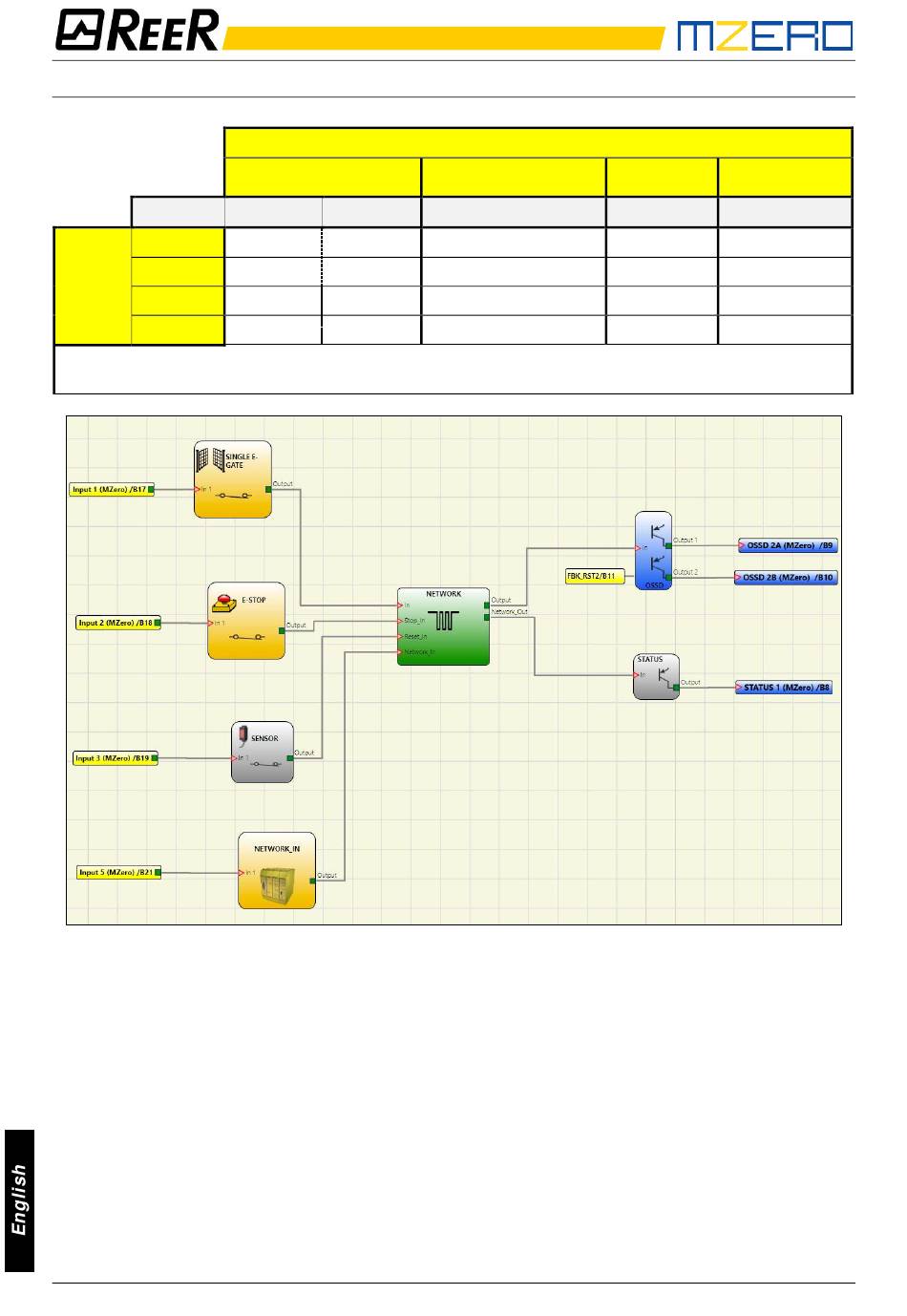

Figure 40 - NETWORK function block scheme example (Category 2)
102
STAND ALONE PROGRAMMABLE SAFETY CONTROLLER
NETWORK FUNCTIONAL BLOCK SIGNALS
Network in
FAIL EXT IN
(1)
OFF OFF
OFF BLINKING
OFF ON
ON BLINKING
Network out (OSSD)
OSSD
(2)
RED
RED/GREEN (BLINKING)
GREEN
-
Network out
Reset in
(STATUS)
STATUS IN
(3)
OFF OFF
BLINKING BLINKING
ON ON
- -
