How to use graphic simulation

Click on the icon to start the graphic simulation.
Graphic simulation can be used to display the signal pattern over time in a graph. First you must
define the stimuli in a specific text file: this means defining the trend over time in the waveforms
used as inputs (stimuli). Based on the stimuli file created, the simulator injects these into the
diagram and displays the traces required in order to perform the simulation.
When the simulation is complete, a graph like the one shown below is automatically displayed.
From the graph you can print the traces displayed ("Print"), save the results in order to load them
again later (Save) or display other traces ("Change visibility").
The names of the traces match the description of the function blocks.
Click the "X" key (top right) to exit the graphic simulation environment.
➔
It shows the traces and the three keys in the bottom right corner for selecting the traces,
saving and printing.
The simulation can only be carried out after performing at least the following steps.
1. Create a stimuli file to suit your needs.
2. Upload the stimuli file and wait until the simulation finishes.
112
STAND ALONE PROGRAMMABLE SAFETY CONTROLLER

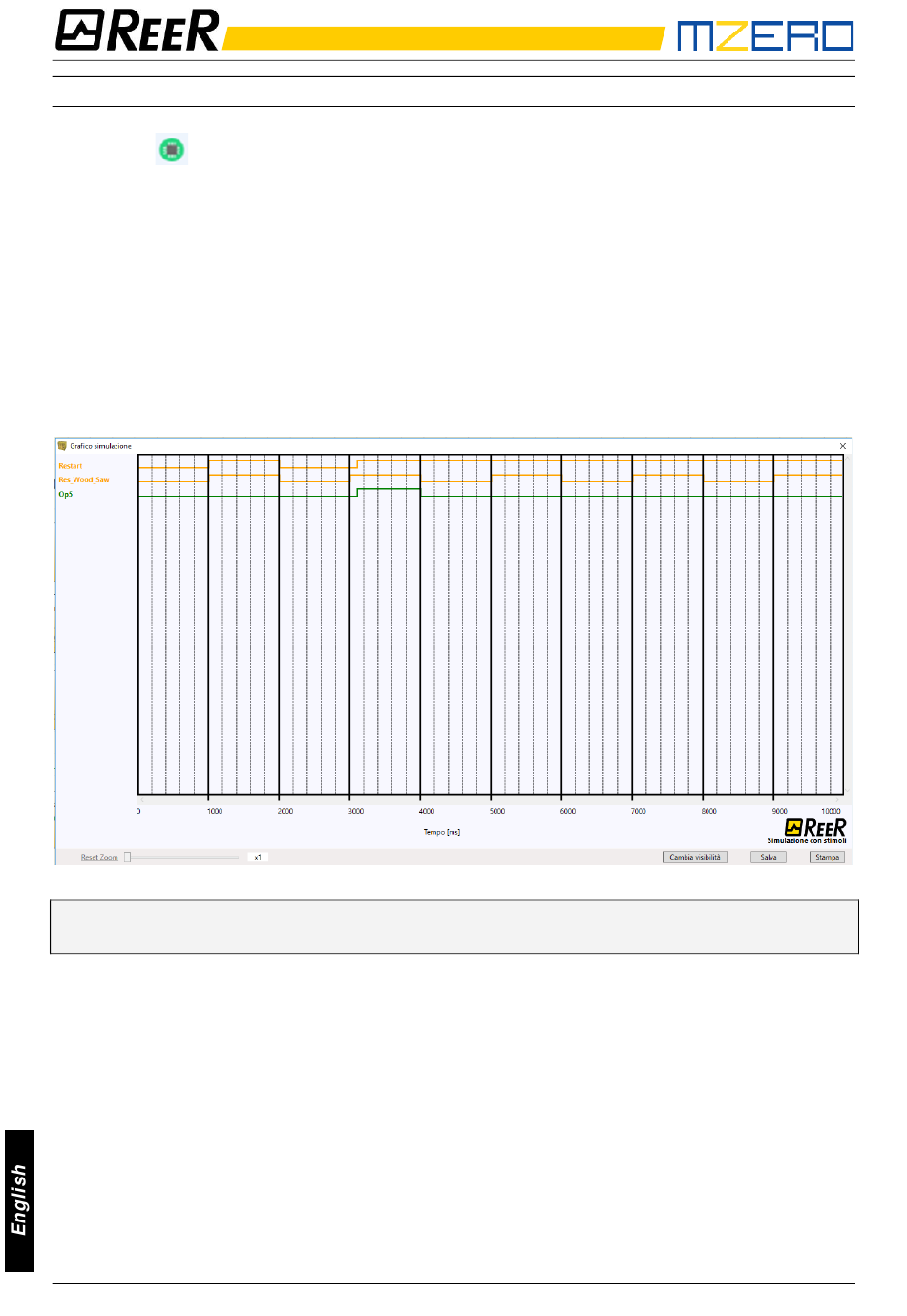

Figure 49 – Example of a result of the graphic simulation.
