Operating
Manual

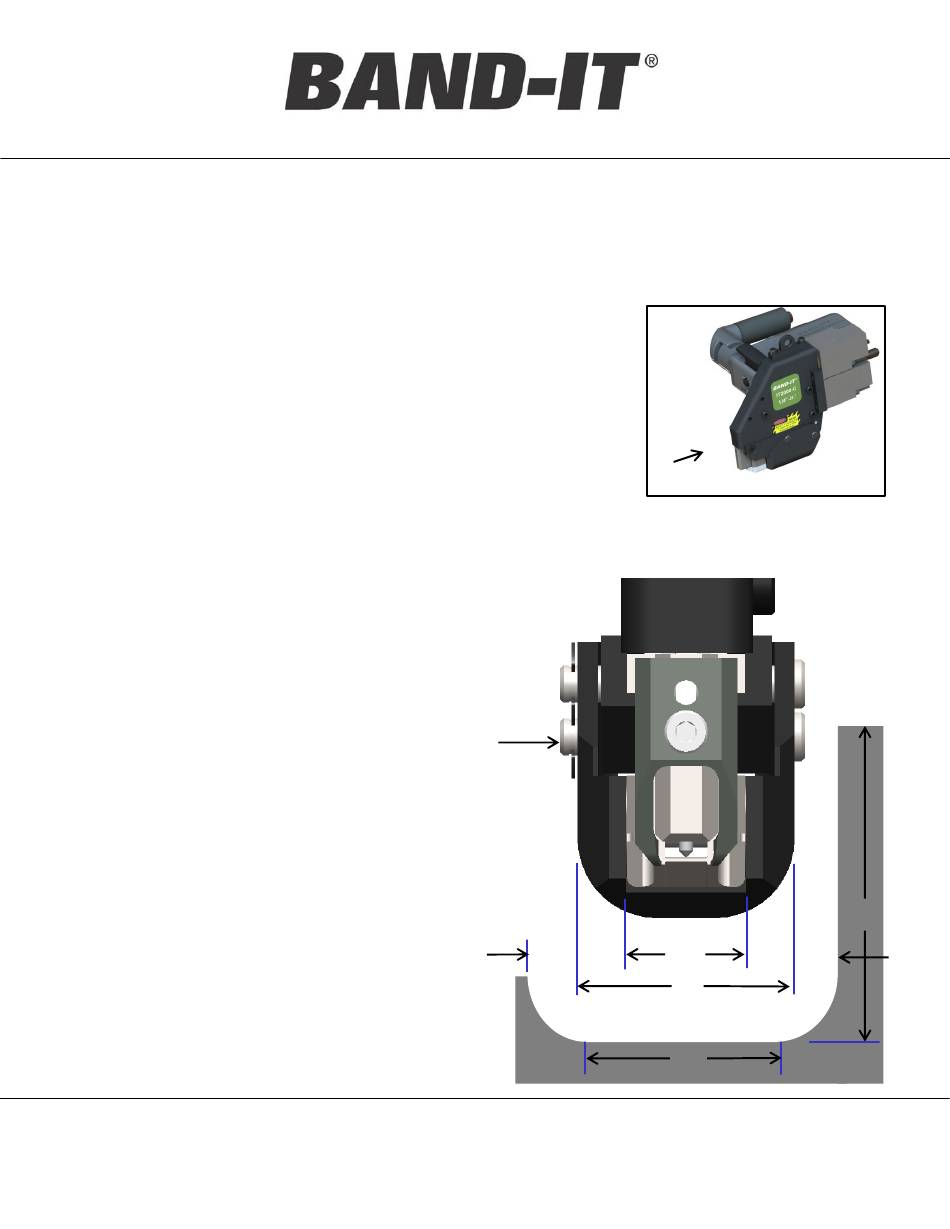

There are three common considerations for tool clearance
1.
Channel Flat width (D)
•
Must be wider than the blade (A) 0.76" [19.3mm]
2.
Raised width (E)
•
Must be wider than flip cover (B) 1.38" [35.1mm]
when between 0.23" - 1.5" [5.8 - 38.1mm] tall
•
Must be wider than the pins (C) when taller than
1.5" [38.1mm]
3.
Shoulder height (F) depends on tool orientation
•
When under the handle, must be less than 2"
•
When away from handle, width must increase to
give clearance to air cylinders, but no height
limitation.
A. Blade width
•
0.76" [19.3mm]
B. Flip cover width
•
1.38" [35.1mm]
C. Pin
D. Flat width
•
> 0.76" [19.3mm]
E. Channel width
•
> 1.38" [35.1mm]
F. Shoulder height
•
< 2" [50.8mm]
BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925
IT Tool Clearance Requirements
www.BAND-IT-IDEX.com
C
Page 20 of 36
IT1000-C / IT2000-C
1/4" IT Tool
Front
Front View
A
B
D
Document # P49050 Rev. C
BAND-IT-IDEX, Inc. 2015
All rights reserved
