To stack the SEHI together with an SEH non-intelligent hub:
1. Attach the SEHI HubSTACK Interconnect cable to the "OUT" port
on the rear panel of the SEHI as shown in Figure 3-1.
2. Attach the other end of the SEHI HubSTACK Interconnect cable to
the "IN" port on the rear panel of the SEH.
To stack SEH non-intelligent hubs together.
1. Attach the SEH HubSTACK Interconnect cable to the "OUT" port
on the rear panel of the SEH as shown in Figure 3-1.
2. Attach the other end of the SEH HubSTACK Interconnect cable to
the "IN" port on the rear panel of the SEH next in the stack.
SEH HubSTACK
Interconnect Cables
SEHI HubSTACK
Interconnect Cable
SEHI Managing 4 SEH Non-Intelligent Hubs
SEH-24
10BASE-T HUB
WITH
SEH INTERCONNECT
OUT
SEH-24
10BASE-T HUB
WITH
OUT SEH INTERCONNECT
SEH-24
10BASE-T HUB
WITH
OUT
SEH INTERCONNECT
SEH-24
10BASE-T HUB LANVIEW®
WITH
OUT
SEH INTERCONNECT
SEHI-24
10BASE-T HUB
WITH

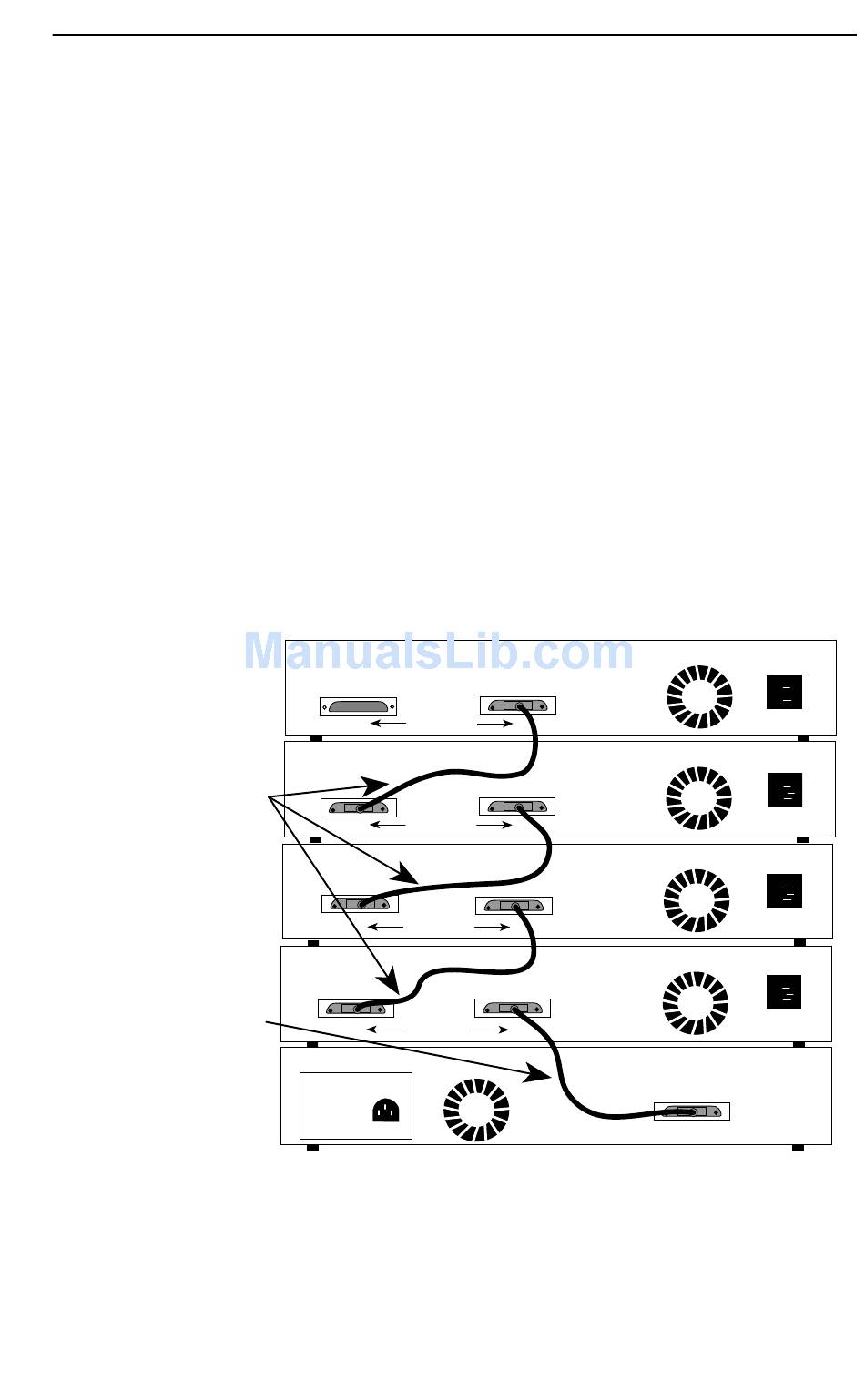

Figure 3-1. Stacking the SEHI
REAR VIEW
LANVIEW®
IN
LANVIEW®
IN
LANVIEW®
IN
IN
LANVIEW®
INSTALLATION
SEH INTERCONNECT
OUT
