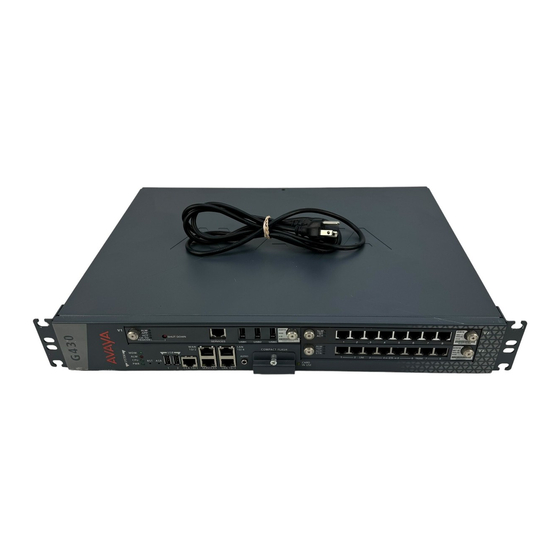

- Page 1 Avaya Aura™ Communication Manager Branch i120 Installation Quick Start 03-602289 Issue 3 May 2009...
-
Page 3: Installation Location
Introduction This document contains the information that you need to start using your Avaya Aura™ Communication Manager Branch in the shortest possible time. Check before you install your Communication Manager Branch. Mount your Communication Manager Branch. Ground your Communication Manager Branch. -
Page 4: Required Equipment
No more than 25 feet (7.6 m) from an approved ground or close enough for use with the ● supplied secondary grounding conductor. Note: If the supplied secondary grounding conductor does not reach the approved Note: ground, you must contact a licensed electrician to install a supplementary ground conductor. - Page 5 Check Table 1: Items shipped with theCommunication Manager Branch i120 Four rubber feet One Grounding Cable Assembly Power Cord (drawing shows US power cord) Nine 5/16" (8 mm) Flat-Head Screws Two mounting brackets Issue 3 May 2009...
- Page 6 One mounting bracket with cable holder Jumper for NVRAM init. Mount Using your Communication Manager Branch i120 on a table To use the Communication Manager Branch i120 on a tabletop, you must attach the provided rubber feet to the underside of the Communication Manager Branch i120. 1.
- Page 7 Mount CAUTION: The Communication Manager Branch i120 weighs at least 21 pounds (9.6 kg). CAUTION: Two people may be needed to mount the Communication Manager Branch i120 in the rack. You must attach the supplied mounting brackets to the front or the middle of the Communication Manager Branch i120.
- Page 8 Figure 1: Attaching the cable guide To rack-mount the Communication Manager Branch i120 at the front, attach one regular ● bracket and the bracket with cable guides. To rack-mount the Communication Manager Branch i120 at the middle: ● 1. Attach two regular mounting brackets on the sides of the chassis in the mid-mount position.
- Page 9 Mount Figure 3: Mid-mount position 2. Insert two mounting screws, one on either side of the rack. 3. Turn the screws only 3 to four times so you can rest the brackets on them. Figure 4: Inserting the screws in the rack 4.
- Page 10 Figure 5: Inserting the additional screws 7. Verify that the Communication Manager Branch i120 is level and horizontal. 8. Tighten the mounting screws. Do not overtighten. 9. Either tighten the two bottom-most screws that you inserted in step 2 or remove these screws completely.
- Page 11 Ground 1. If the wall does not have a portion of plywood available, mount a plywood sheet at least ¾ in (1.9 cm) thick and at least 4 x 4 ft (1.2 x 1.2 m) in size, onto the wall. Make sure the plywood is sufficiently anchored in the wall.
-
Page 12: General Grounding Requirements
WARNING: System grounding must comply with the general rules for grounding provided in WARNING: Article 250 of the National Electrical Code (NEC), National Fire Protection Agency (NFPA) 70, or the applicable electrical code in the country of installation. General grounding requirements Two safety grounds are required to ensure safe operation of the Communication Manager Branch i120: the ground conductor that is part of the AC power cord and the field-installed green/yellow conductor referred to as the Supplementary Ground Conductor. -
Page 13: Restricted Access Location
Ground Ground block A ground block must be provided if multiple Communication Manager Branch i120s are being installed. The ground block, intended for rack mounting, has terminals available for terminating Supplementary Ground Conductors. Up to ten Communication Manager Branch i120s can be grounded at the block installed close to the equipment (on a rack) and then a single ground conductor can be routed from the same block to an approved ground. - Page 14 Acceptable Water Pipe. A metal underground water pipe, at least ½ in. (1.3 cm) in ● diameter, in direct contact with the earth for at least 10 ft. (3m). The pipe must be electrically continuous (or made electrically continuous by bonding around insulated joints, plastic pipe, or plastic water meters) to the point where the protector ground wire connects.
- Page 15 Ground WARNING: If the approved ground or approved floor ground can only be accessed inside a WARNING: dedicated power equipment room, then connections to this ground must be made by a licensed electrician. Connect the safety ground Proper grounding of the Communication Manager Branch i120 installation safeguards the system, users, and service personnel by providing protection from lightning, power surges, AC mains faults, power crosses on central office trunks, and electrostatic discharge (ESD).
- Page 16 Figure 7: Attaching the ground wire 3. Replace the ground screw on the Communication Manager Branch i120 and securely tighten the screw such that it cannot be loosened without the use of a tool. 4. Connect the Supplementary Ground Conductor: If the ground block has been provided ●...
- Page 17 Turn on Connect your computer to the Services port on the Communication Manager Branch i120, ● using a cross-over Ethernet cable. Turn on 1. If you received a USB flash disk, insert it into the USB port on the front of the Communication Manager Branch i120.
- Page 18 Note: Outside the US, the cord must be VDE Certified or Harmonized (HAR), rated Note: 250V, 3-conductor (3rd wire ground), 1.0 mm minimum conductor size. Configure Note: The Communication Manager Branch provides the address of 192.11.13.5/30 via Note: DHCP to the local setup computer. Configure your local setup computer to obtain the IP address automatically or manually set it to 192.11.13.5/30.
- Page 19 Configure Once the Branch Device Manager loads, you will see one of three screens, according to the level of configuration you must do. If this screen opens... Level of configuration to do Branch Device Manager main screen None (the Communication Manager Branch i120 is already fully configured).
- Page 20 The Profile-Based Setup Assistant A profile contains the main parameters required to configure the Communication Manager Branch i120. All you need to do is follow the steps in the assistant to complete the configuration. You should have the data available prior to installation to provide the remaining parameters. Consult your IT contact if you do not have all of the information available.
- Page 21 Configure Figure 13: Profile-Based Setup Assistant 2. Follow the steps shown in the navigation pane. 3. Save the changes and reboot the Communication Manager Branch i120 when prompted. Initial Setup Assistant Home Screen. The Initial Setup Assistant applies to Communication Manager Branch i120 solutions that require complete configuration.
- Page 22 Install from Scratch: Click Start. ● - The Install from Scratch Assistant opens. Figure 15: Install from Scratch Assistant Install from Profile: 1. Click Start. 2. The Install from Profile Assistant - Set Profile Restore Type screen opens. Figure 16: Install from Profile Set Profile Restore Type 20 Communication Manager Branch i120 Installation Quick Start...
- Page 23 Configure 3. Select the USB option or download a profile from an ftp site. - If you select the ftp option, enter the following parameters: - Remote filename. - User name and password for the ftp server. - The IP address of the ftp server. 4.
- Page 24 22 Communication Manager Branch i120 Installation Quick Start...
