5. Shorten Cylinder AX

5 Shorten Cylinder AX
58 / 128

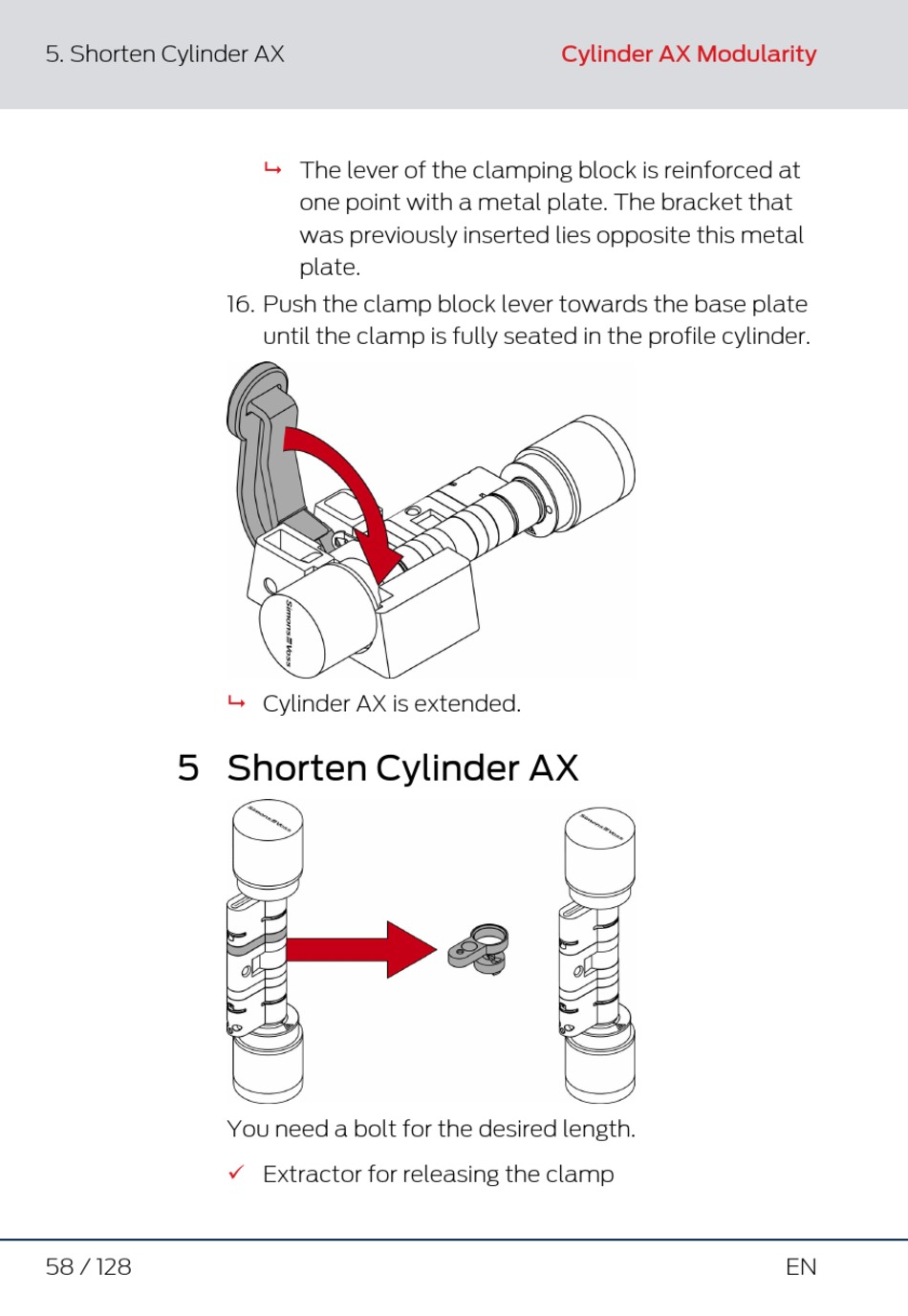

9 The lever of the clamping block is reinforced at
one point with a metal plate. The bracket that
was previously inserted lies opposite this metal
plate.
16. Push the clamp block lever towards the base plate
until the clamp is fully seated in the profile cylinder.
Cylinder AX is extended.
9
You need a bolt for the desired length.
Extractor for releasing the clamp
ü
