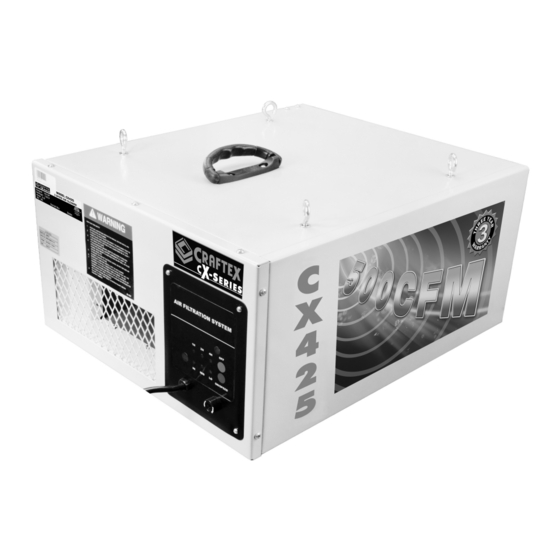

- Page 1 MODEL CX425 3 SPEED AIR CLEANER WITH REMOTE CONTROL USER MANUAL Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Electrical Safety ..................... 3 Tool Use and Care ....................4 Grounding ......................5 Extension Cords ....................6 Manual Control Operation ..................7 Trouble Shooting ....................9 Wiring Diagram ...................... 10 Part List ......................... 11 Warranty ........................ 13... -
Page 3: Electrical Safety
the three wire grounded power cord and WARNING! grounded power supply system. READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below 3. Avoid body contact with grounded surfaces may result in electric shock, fire, and/or serious such pipes, radiators, ranges,... -
Page 4: Tool Use And Care
“Inspection, Maintenance, Cleaning” section of this manual. Use of unauthorized TOOL USE AND CARE parts failure follow maintenance instructions may create a risk of electric shock 1. Use the correct product for your application. or injury. The correct product will do the job better and safer at the rate for which it is designed. -
Page 5: Grounding
8. Always unplug the AIR CLEANER from its GROUNDING electrical outlet before performing inspection, maintenance, cleaning WARNING! procedures. Improperly connecting the grounding wire can result in the risk of electric shock. Check with a 9. WARNING! People with pacemakers should qualified electrician if you are in doubt as to consult their physician(s) before using this whether the outlet is properly grounded. -
Page 6: Extension Cords
be attached to an electrically “live” terminal. 6. Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord. 7. Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. 3. -
Page 7: Manual Control Operation
MANUAL CONTROL OPERATION 1. Press the “On/Speed” button once for low speed, twice for medium, and three times for Note: The fuse is housed on the Switch Plate high speed. (20). If the unit suffers a fuse failure, unscrew the fuse cover, remove and replace the fuse 2. - Page 8 cleaning, or it needs replacement. Reinsert a Filter Net (1) (old or new) and lock it in place with the two clasps. (See Figure D). Note: During this procedure, wear ANSI approved safety goggles and dust protection. 4. Periodically, inspect the Bag Filter (2) for dirt and debris, and if necessary, remove and change the Bag Filter (2).
-
Page 9: Trouble Shooting
Trouble Shooting TROUBLE PROBABLE CAUSE SOLUTION Motor does not run when power 1. Blown fuse 1. Replace Fuse is switched on 2. Switch is burned out 2. Replace switch 3. Wire connection is loose 3. Tighten or replace wire or damaged Motor does not run at full speed 1. -
Page 10: Wiring Diagram
Wiring Diagram... -
Page 11: Part List
Parts Diagram... - Page 12 Parts List Item Description PCX42501 PRE FILTER 421 X 241 X 45MM PCX42502 BAG FILTER 6 1/2 X 9 1/2" PCX42503 PLATE PCX42504 SCREW - PH. HD M5-0.8 X 8 PCX42505 HANDLE PCX42506 MAIN BODY PCX42507 RUBBER FOOT PCX42508 SCREW - HEX SOC HD M5-0.8 X 25 PCX42509 SCREW - PH HD M4-0.7 X 8 PCX42510...
-
Page 13: Warranty
RETURNS, REPAIRS AND REPLACEMENTS To return, repair, or replace a Craftex Machine, a Machinery Return Form must be filled out by the original purchaser requesting a return. Visit the appropriate Busy Bee Tools showroom or call 1-800-461-BUSY.
