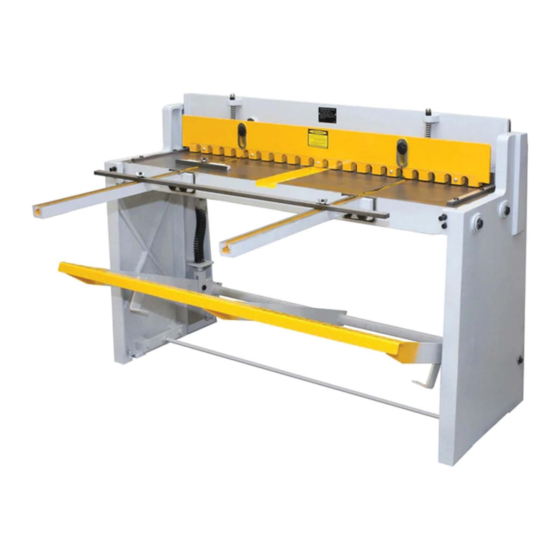

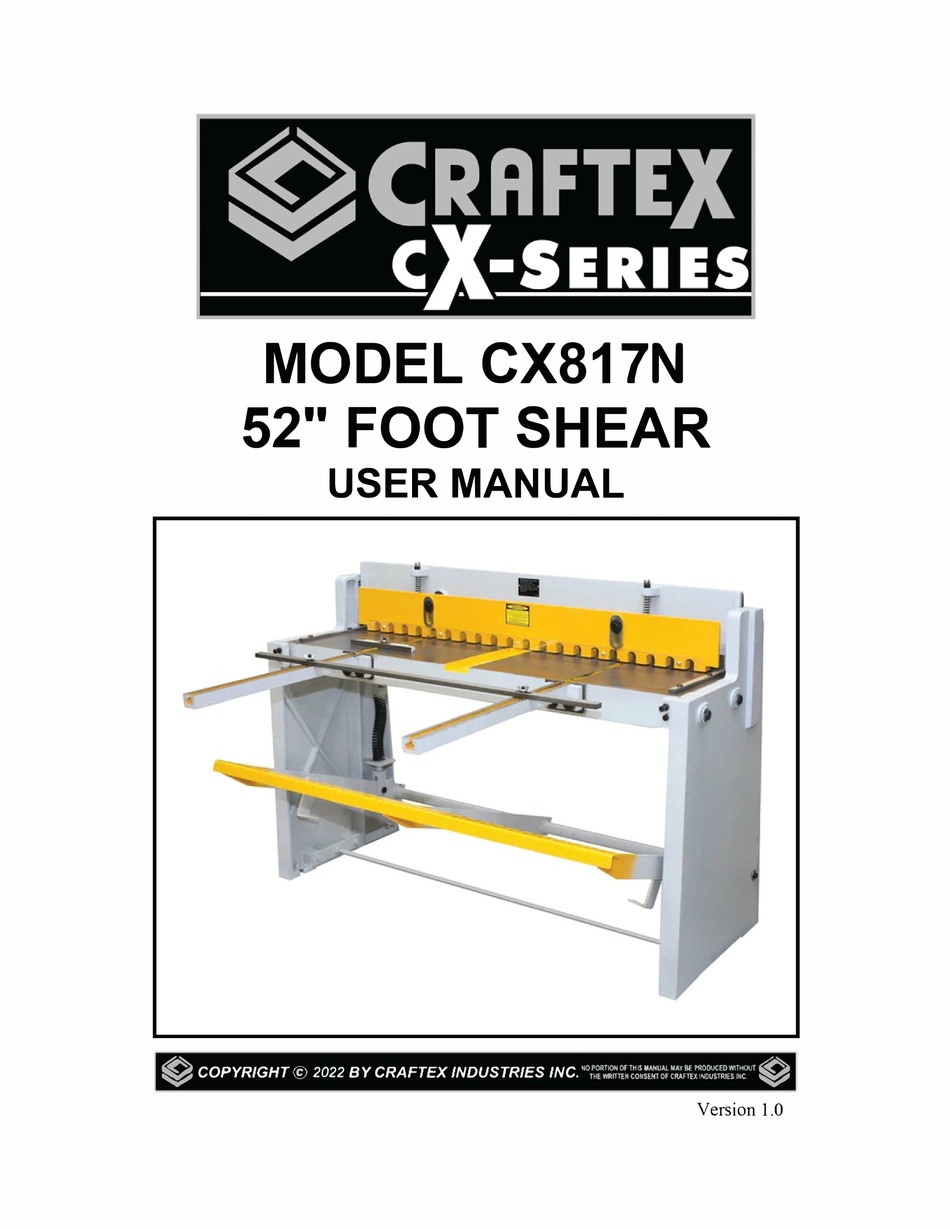

- Page 1 MODEL CX817N 52'' FOOT SHEAR USER MANUAL �COPYRIGHT� 2022 BY CRAFTEXINDUSTRIES INC SOPORTIONOFTHISMk'<UALMAVBEPRODUCEDi\'I T HOUT� £_ • THE 'l(RITTEN COtlSH, T OF CRAFTEX INDUSTRIES ltlC � � Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CX817N Safety Instructions............3 CX817N Features ................ 4 CX817N Physical Features............5 Unpacking ................... 6 Mounting ..................6 Foot Pedal................... 6 Front Extension Arms..............7 Rear Extension Arms ..............7 Hold Down Adjustments.............. 7 Blade Adjustment ................ 8 Adjusting Blade Bow .............. -
Page 3: Cx817N Safety Instructions
CX817N SAFETY INSTRUCTIONS Do not exceed the capacities of the Always have a secure footing when machines. Overloading it, can cause using this machine. damage to the machine and the work- Always keep the knives/cutters properly piece. -
Page 4: Cx817N Features
As part of the growing line of Craftex CX-Series machineries, we are proud to offer the CX817N a 52" Foot Shear. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. The CX817N is a professional tool and like all power tools, proper care and safety procedures should be adhered to. -
Page 5: Cx817N Physical Features
CX817N PHYSICAL FEATURES Rear Extension Arms Hold Down Rear Adjustment Blocks Bevel Gauge Scale Table Front Stop Front Extension Arms Foot Pedal... -
Page 6: Unpacking
Lift the foot pedal with the help of an assistant and position it over the hinge pin hole and insert the hinge pin. WARNING! The CX817N is a very heavy machine. Secure it by tightening the set screws. Do not overexert yourself. -
Page 7: Front Extension Arms
FRONT EXTENSION ARMS TO INSTALL THE FRONT EXTENSION ARMS: Loosen the four bolts on the front table. Place the front extension arms over the bolts and behind the special washers. Align the channel of the front extension arm with the channel on the side. Figure-3 Installing rear extension arm Make sure the ground flat surface on the front extension arms are flush with the top... -
Page 8: Blade Adjustment
Recheck the gap to make sure the distance so that you have a gap of 0.002". Check is equal across the length of the hold down. this measurement with a feeler gauge. Repeat the same step on the other side of the machine so that gap is even across the BLADE ADJUSTMENT length of the blade. -
Page 9: Finger Guard
The fixed blade has only cutting edge and it FINGER GUARD can also be sharpened by a surface The CX817N features a plastic guard fixed grinder. to the front of the hold down. Do not remove under any circumstances. It will keep your fingers out of the blade. -
Page 10: Parts Diagram
PARTS DIAGRAM... -
Page 12: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
