Craftex CX101N User Manual

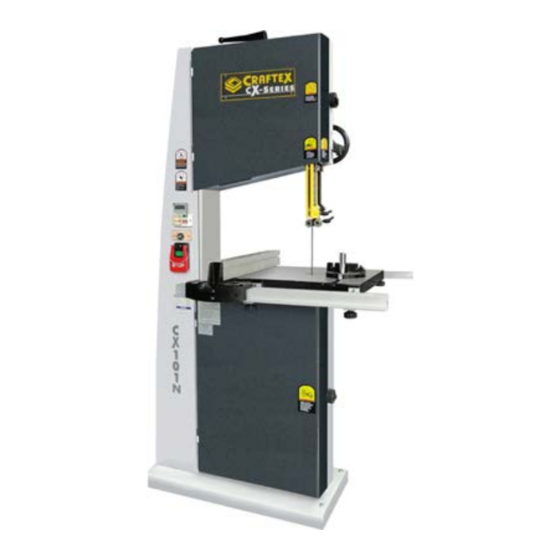

18” variable speed wood & metal band saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CX101N
18" VARIABLE SPEED
WOOD & METAL BAND SAW
User Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX101N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftex CX101N

Summary of Contents for Craftex CX101N

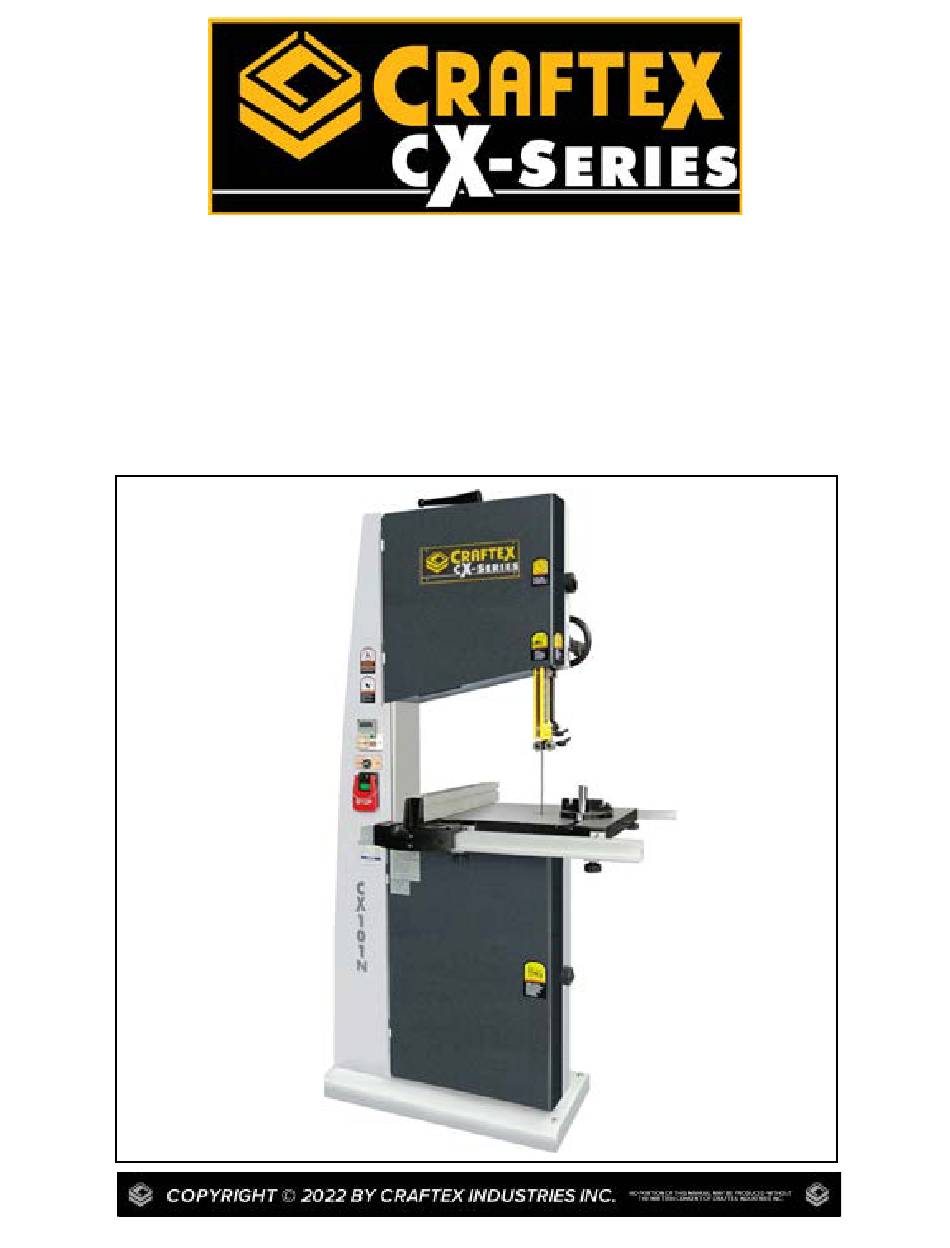

  • Page 1 CX101N 18” VARIABLE SPEED WOOD & METAL BAND SAW User Manual Version 1.0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Safety Instructions ..................3 Specific Safety Instructions ..................Features ........................Physical Features ....................Setup ....................... 7 Un-packing ......................7 Proper Grounding ....................8 Assembly and Adjustments ................9 Blade Tracking ......................12 Basic Controls ......................13 Test Run ........................

  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Extreme caution should be used when operating all machinery. Know your machine, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. ALWAYS read and understand the user DISCONNECT the power source when manual before operating the machine.

  • Page 4: Specific Safety Instructions

    CX101N - 18” Variable Speed Wood & Metal Band Saw SPECIFIC SAFETY INSTRUCTIONS MAKE SURE before making any adjust- CX101N is perfect for cutting various types ments, the switch is in the “OFF” position of wood. and the cord is un-plugged from the power source.

  • Page 5: Features

    As part of the growing line of Craftex woodworking & metalworking equipment, we are proud to offer the CX101N - 18” Variable Speed Wood & Metal Band Saw. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction.

  • Page 6: Physical Features

    CX101N - 18” Variable Speed Wood & Metal Band Saw PHYSICAL FEATURES Quick Release Blade Tension Handle Upper Cabinet Lock Knob One Piece Construction Blade Guide Digital Display Adjustment Hand Wheel Variable Speed Control Blade Guide On/Off Lock Knob Switch...

  • Page 7: Setup

    Setup Before setting up your machine you need to read and understand this user manual completely. The unpainted surfaces of this band saw are coated with a rust preventive waxy oil and you will want to remove this before you begin assembly. Use a solvent cleaner that will not damage painted surfaces.

  • Page 8: Proper Grounding

    Grounding provides a path of least resistance for electric current to reduce the risk of electric shock. CX101N is equipped with a 220 single WARNING phase motor which features a 3-conductor cord and a 3-prong grounded plug to fit a Improper connection of the grounded type receptacle.

  • Page 9: Assembly And Adjustments

    Assembly Follow the steps below to assemble your band saw: Take the band saw table and put it upside down on floor and make sure that all the table bolts shown in the figure are tight. See figure-4 Figure-6 Knobs threaded on the bolts Position the table on the table stop and the base so that the table is perpendicular to the blade.
  • Page 10 Figure-8 Installing table insert and Figure-9 Rear rail brackets attached table pin Now, attach the rear rail to the brackets using the knobs provided. See figure-10. Figure-8.5 Installing the angle adjustment Figure-10 Installing the rear fence rail brackets Take the rail brackets (larger) for the front fence rail and attach it to the table using the Attach the Adjustment bar bracket to the cap screws provided.
  • Page 11 Once you have attached the adhesive backed scale to the rail, place the fence on the rail and tighten it in place by pushing down the handle. See figure-13 Figure-11 Front fence rail installed Now take the fence and pull its handle up. Place the fence on the front fence rail and slide it against the blade.

  • Page 12: Blade Tracking

    Blade Tracking to tilt to the front and moves the blade to- wards the center. Blade tracking refers to the blade remaining in the same position on the upper and lower wheels. When rotating the wheel by hand, if it moves forward or backward on the wheel then tracking needs to be adjusted.

  • Page 13: Basic Controls

    TEST RUN Once you have assembled your machine Figure-18 Basic controls of CX101N completely, it is then time for a test run to make sure that the machine works properly The power switch turns the power on/ and is ready for operation.

  • Page 14: Blade Tension

    Blade Tension Adjusting the Blade Tension A properly tensioned blade is very important to get the best performance from any band To adjust the blade tension, lift the blade saw. If the blade is too loose there is a tension handle shown in figure-19 and turn possibility that the blade will slip or drift off it.
  • Page 15 Adjust the lower bearings in the same manner. Table Stop Adjustment CX101N features a table stop which allows the table to easily come to a 90° if the table is tilted. Figure-21 Distance between the guide To adjust the table stop so that the table sits bearings and the blade at 90°, you should first make sure the switch...
  • Page 16 Table Alignment To make accurate cuts with your band saw, the table should be aligned properly with the blade. To align the table: Make sure the blade tension and tracking is done correctly. Disconnect the machine from the power source and loosen the table trunnion bolts under the table shown in figure-25.

  • Page 17: Guide Post

    Work-piece Inspection (Wood) Adjust the table until the distance on both sides of the table is equal and tighten the Before cutting any wood, make sure to table trunnion bolts. inspect the work-piece for nails, staples, small pieces of stone or metal and any other Guide Post object which might come in contact with the blade.

  • Page 18: Work-Piece Inspection (Metal)

    Work-Piece Inspection (Metal) Before cutting a metal work-piece, inspect it carefully for any defects in the material. For thin or small metals, the work-piece should be clamped between larger pieces to hold the work-piece tight, when fed against the balde. Some small work-piecees will be damaged if cut on the band saw;...

  • Page 19: Cast Iron Wheels

    Cast Iron Wheels The CX101N comes with heavy duty cast iron wheels for added stability and overall performance. A coplanar shim adjustment also added for better alignment of the wheels that allow the blade to run as straight as possible en- suring straight and accurate cuts.

  • Page 20: Operations

    Make sure all the guards are in place Figure-30 Ripping on CX101N WARNING Crosscutting CX101N produces fine dust particles during cutting operation which is very Cutting solid wood across the grain and dangerous for health. Always connect in plywood cutting across the width of the your band saw to a dust collector.

  • Page 21: Resawing

    Connecting to a Dust Collector table is at a 90° with the blade and use a wider blade for better results. CX101N features two 4” diameter dust ports to connect to a dust collector. Adjust the fence according to the width of the cut you want, and lock it in position.

  • Page 22: Maintenance

    Maintenance During the life of your machine, you will need to practice some regular maintenance to keep your saw in peak performance condition. Removing the Blade To remove / change the blade, turn the switch OFF and disconnect the cord from the power source.

  • Page 23: Tilting The Table Backward

    Tilting the Table Backward To Inspect the V-Belts To tilt the table backward, you will need to Turn the power switch off and loosen the bolts shown in figure-35 and disconnect the cord from the power adjust them as needed using a wrench. source.

  • Page 24: Removing/Replacing The V-Belts

    To Replace the V-Belts Follow the instructions 1-5 to access the V-belts. Loosen the motor lock lever shown Pivot the motor and slide the idler in figure-37 and idler pulley pulley to loosen up the belt. mounting nut shown in figure-38. Remove the old belt and install the new one.

  • Page 25: Parts Breakdown And List

    CX101N PARTS DIAGRAM...
  • Page 26 CX101N PARTS LIST...
  • Page 28 CX101N PARTS DIAGRAM...
  • Page 29 CX101N TABLE PARTS LIST...
  • Page 30 CX101N FENCE BREAKDOWN...

  • Page 31: Warranty

    This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
