Craftex CX Series Manual

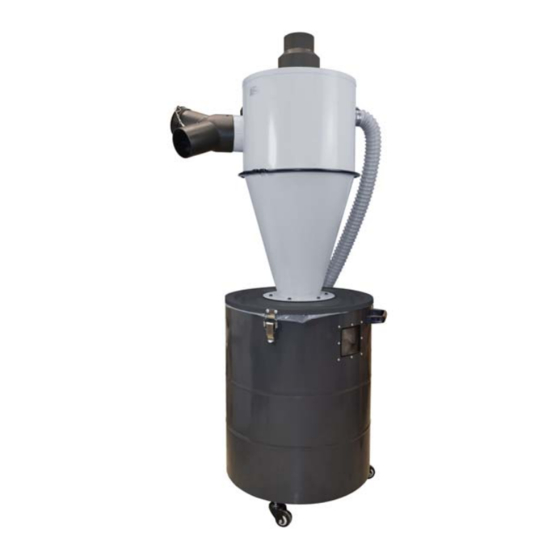

Portable cyclone separator
Hide thumbs Also See for CX Series:

Advertisement

Quick Links

MODEL CX427
Portable Cyclone Separator
Version 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Craftex CX Series

Summary of Contents for Craftex CX Series

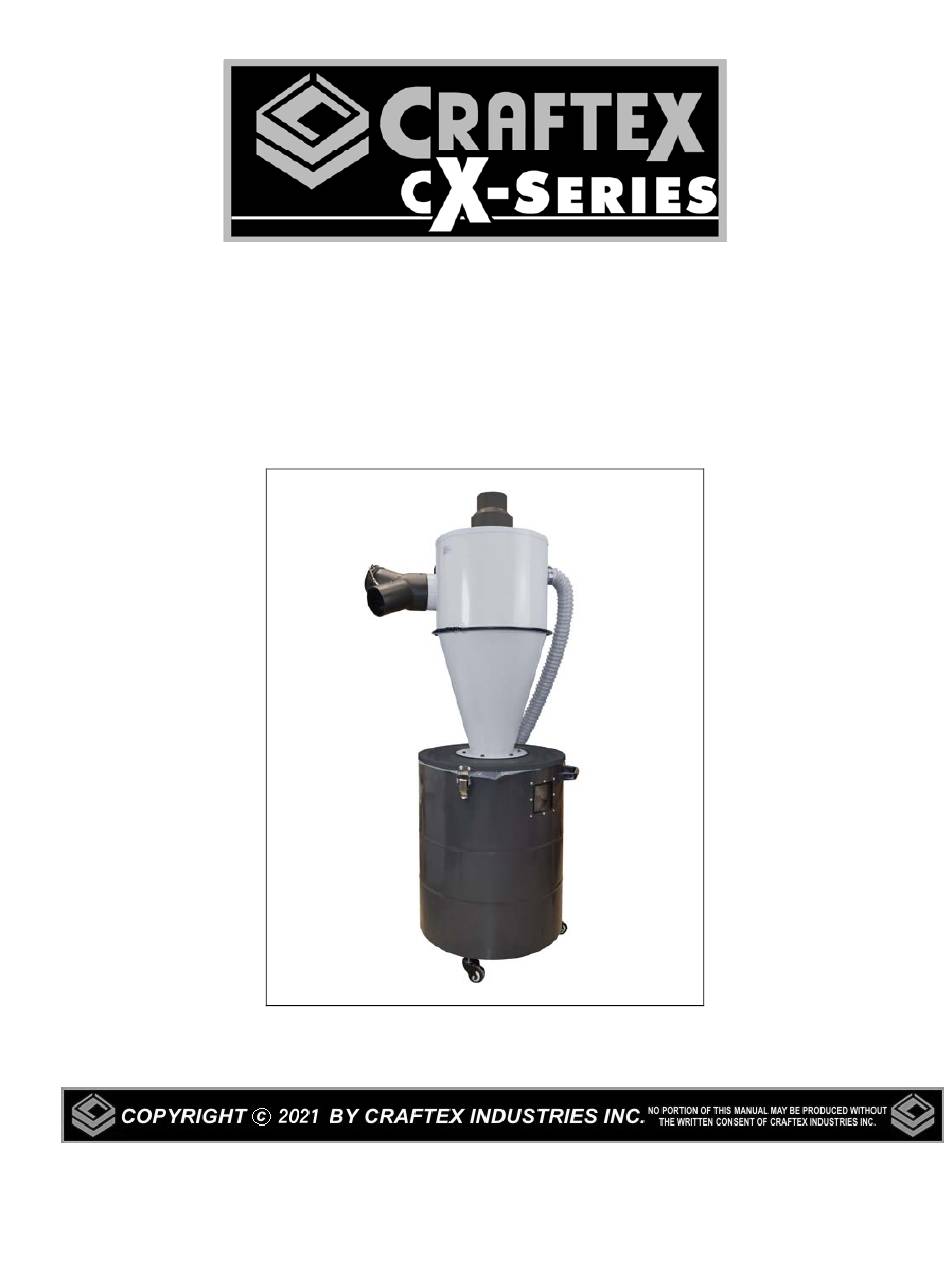

  • Page 1 MODEL CX427 Portable Cyclone Separator Version 1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Technical Specifications ..................3 Assembly Instructions ..................... 5 Operation ........................ 7 Cyclone Separator Parts Diagram................9 Warranty........................11...

  • Page 3: Technical Specifications

    Weight……………………………………………….24 Kg Gross Weight………..…………………………26.5 kg Overall size……….…….……….…….31”X20”X61” Packing size………………..………22” X 22” X 40” Introduction: The Craftex Portable Cyclone Separator Figure 2 creates a cyclone of incoming air that effectively separates heavy wood chips as Assembly well as larger dust particles, helping to increase the efficiency of your single stage The cyclone separator is not pre-assembled.
  • Page 4 Figure 2 A. Collection drum B. Vacuum ring C. Collection drum lid D. Collection bag E. Cyclone funnel F. Drum caster G. Vacuum hose H. Vacuum hose clamp I. Drum handle J. End cap K. Intake barrel L. Band clamp M.

  • Page 5: Assembly Instructions

    Assembly Instructions: The cyclone separator must be fully assembled before it can be operated. Before beginning the assembly process, gather all listed items. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).
  • Page 6 7. Place intake barrel on top of cyclone funnel, then apply band clamp on the cyclone funnel and intake barrel's lips to tighten and secure both. (See figure 6) 8. Install inlet adapter on dust port and secure with M5X8 screw. Then fit the lid on the adaptor.

  • Page 7: Operation

    canister filter) or place this unit next to a Connecting your cyclone separator to your jointer or thickness planer to intercept and dust collector you will need to run a dust collect the wood chips and other large dust hose from dust collector inlet to the cyclone particles.
  • Page 8 Maintenance Dispose the collection drum bag when 3⁄4 full, as seen in the drum window. IMPORTANT: To contain wood dust and minimize risk of exposure, firmly tie bag closed. If bag gets overfilled, dust will be sucked into the intake barrel and passed through to the dust collector filter.

  • Page 9: Cyclone Separator Parts Diagram

    CX427 Cyclone Separator Parts Diagram CX427 Cyclone Separator...
  • Page 10 ITEM DESCRIPTION PCX42701 OUTLET ADAPTOR PCX42702 INTAKE BARREL PCX42703 SCREW - M5-0.8 X 8 PCX42704 INLET APAPTOR CAP PCX42705 INLET ADAPTOR PCX42706 BAND CLAMP PCX42707 CYCLONE FUNNEL PCX42708 SCREW M6-1.0 X 15 PCX42709 WASHER - FLAT M6 PCX42710 DRUM LID PCX42711 WASHER - FLAT M6 PCX42712...

  • Page 11: Warranty

    RETURNS, REPAIRS AND REPLACEMENTS To return, repair, or replace a Craftex Machine, a Machinery Return Form must be filled out by the original purchaser requesting a return. Visit the appropriate Busy Bee Tools showroom or call 1-800-461-BUSY.

This manual is also suitable for:

Cx427
